CRANKCASE BOLT PATTERN

VZ1600 MARAUDER 2004 (K4) USA (E03)

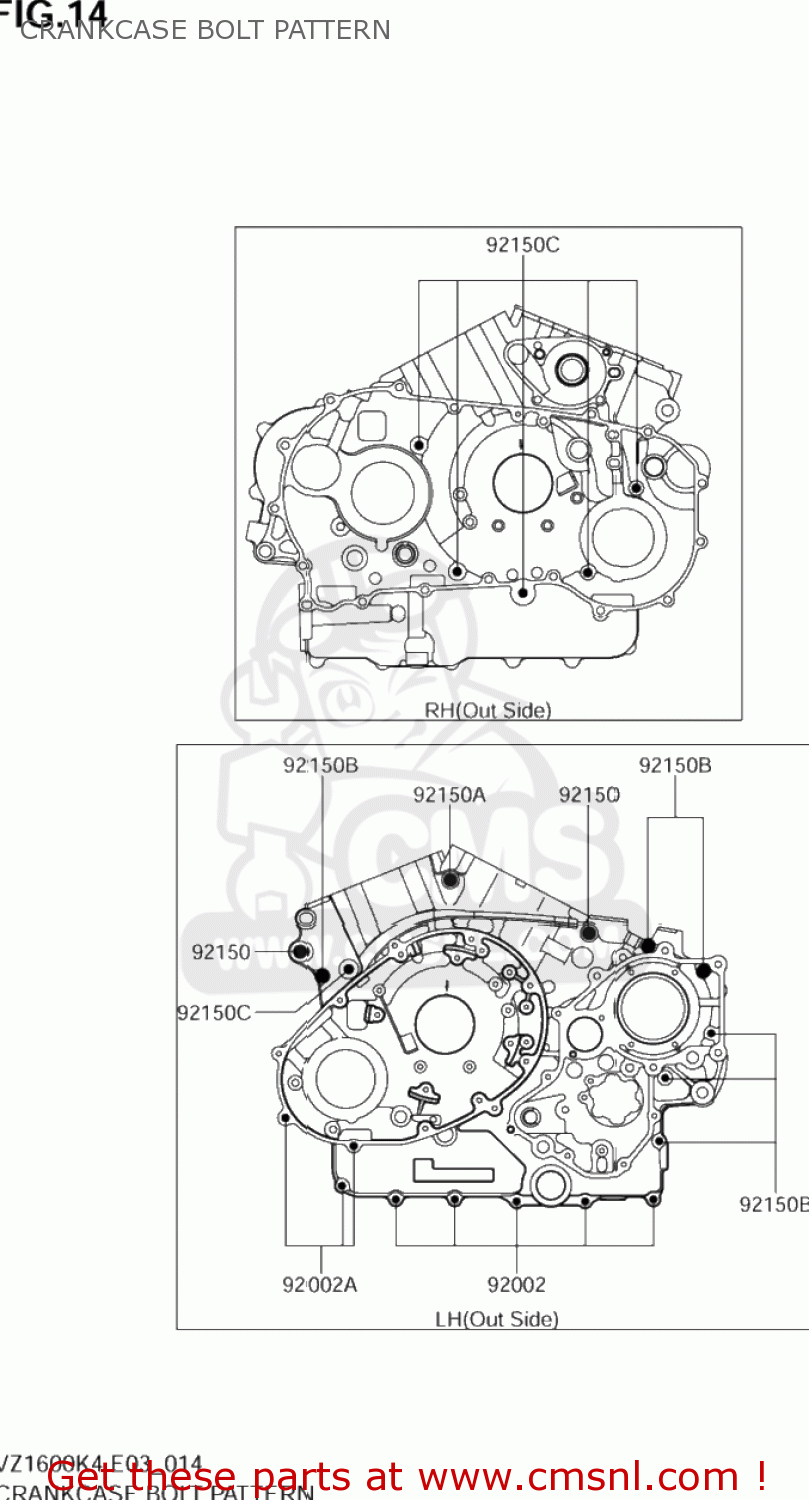

Crankcase bolt pattern diagram VZ1600 MARAUDER 2004 (K4) USA (E03)

CRANKCASE BOLT PATTERN VZ1600 MARAUDER 2004 (K4) USA (E03)

CRANKCASE BOLT PATTERN VZ1600 MARAUDER 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

92002

K920021566
ref: 92002

BOLT,6X40

€ 3.50

92002A

K920021568
ref: 92002A

BOLT,6X80

€ 4.00

92150

K921501993
ref: 92150

BOLT,10X105

€ 7.50

92150A

K921501994
ref: 92150A

BOLT,10X115

€ 8.00

92150B

K921501995
ref: 92150B

BOLT,6X70

€ 2.00

92150C

K921501996
ref: 92150C

BOLT,8X90

€ 3.50
