IGNITION SYSTEM
VZ1600 MARAUDER 2004 (K4) USA (E03)

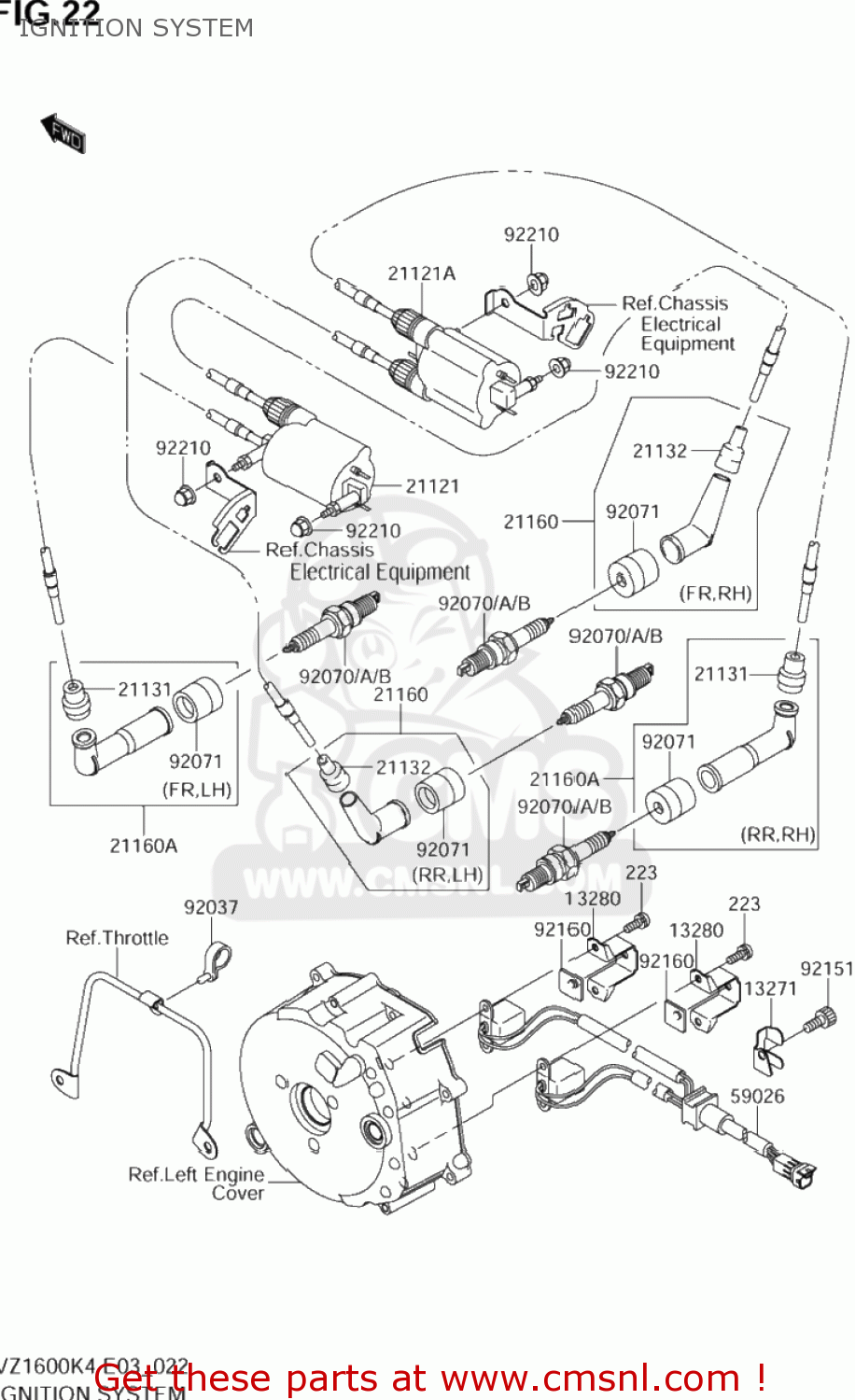

Ignition system diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
IGNITION SYSTEM VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
223
KK223B0516
ref: 223
SCREW-PAN-WS-CROS
€ 1.50
13271
K132711339
ref: 13271
PLATE
€ 3.00
13280
K132801255
ref: 13280
HOLDER
€ 4.50
21121
K211211302
ref: 21121
COIL-IGNITION,
€ 130.00
21121A
K211211303
ref: 21121A
COIL-IGNITION,RR
€ 115.00
21131
KK21131005
ref: 21131
GROMMET,HIGH TENSION
€ 4.00
21132
KK21132005
ref: 21132
GROMMET,HIGH TENSION
€ 2.50
21160
K211600004
ref: 21160
CAP-ASSY-PLUG
€ 14.00
21160A
K211601091
ref: 21160A
CAP-ASSY-PLUG
€ 16.00
59026
K590261158
ref: 59026
COIL-PULSING
€ 66.00
92037
K920371290
ref: 92037
CLAMP,SPEED,L=43
€ 3.50
92070
K920701125
ref: 92070
PLUG-SPARK,DPR7EA9(NGK)
€ 0.00
92070A
K920701138
ref: 92070A
PLUG-SPARK,DPR6EA9(NGK)
€ 0.00
92070B
K920701250
ref: 92070B
PLUG-SPARK,DPR5EA9(NGK)
€ 0.00
92071
K920711184
ref: 92071
GROMMET,PLUG CAP
€ 4.50
92151
K921513704
ref: 92151
BOLT,6X10
€ 3.00
92160
K921601091
ref: 92160
DAMPER
€ 3.50
92210
K922100003
ref: 92210
NUT,CAP,6MM
€ 3.50
