SEAT
VZ1600 MARAUDER 2004 (K4) USA (E03)

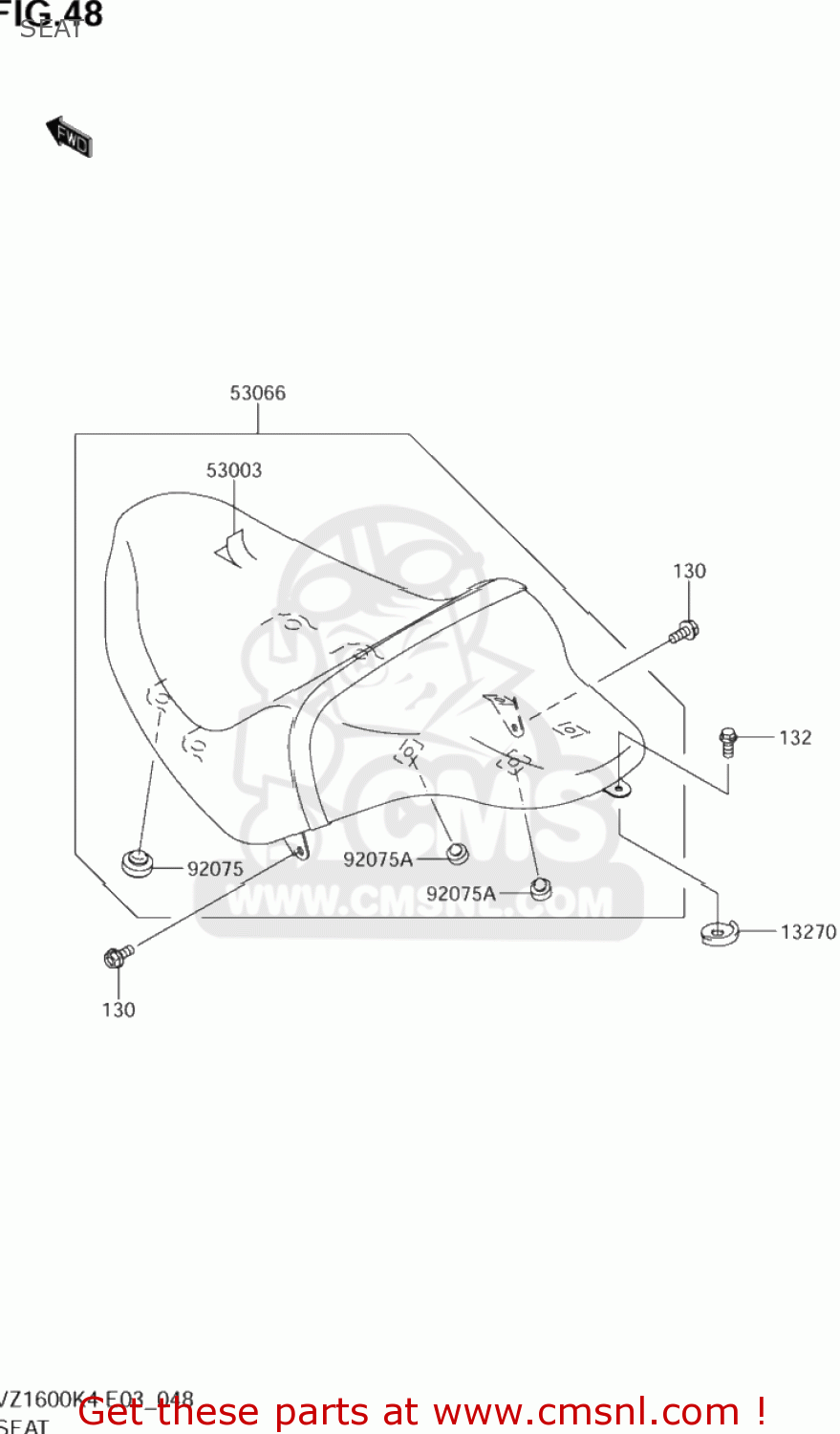

Seat diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
SEAT VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
130
KK130J0614
ref: 130
BOLT-FLANGED,6X14,BLACK
€ 1.50
132
KK132J0614
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
13270
K132701484
ref: 13270
PLATE,RR SEAT,FR
€ 6.00
53003
KK530031476MA
ref: 53003
LEATHER,SEAT
€ 202.00
53066
KK530660016MA
ref: 53066
SEAT-ASSY,DUAL,W/BAND
€ 677.50
92075
K920751045
ref: 92075
DAMPER
€ 6.00
92075A
K920751927
ref: 92075A
DAMPER
€ 3.50
