CAMSHAFT/TENSIONER
VZ1600 MARAUDER 2004 (K4) USA (E03)

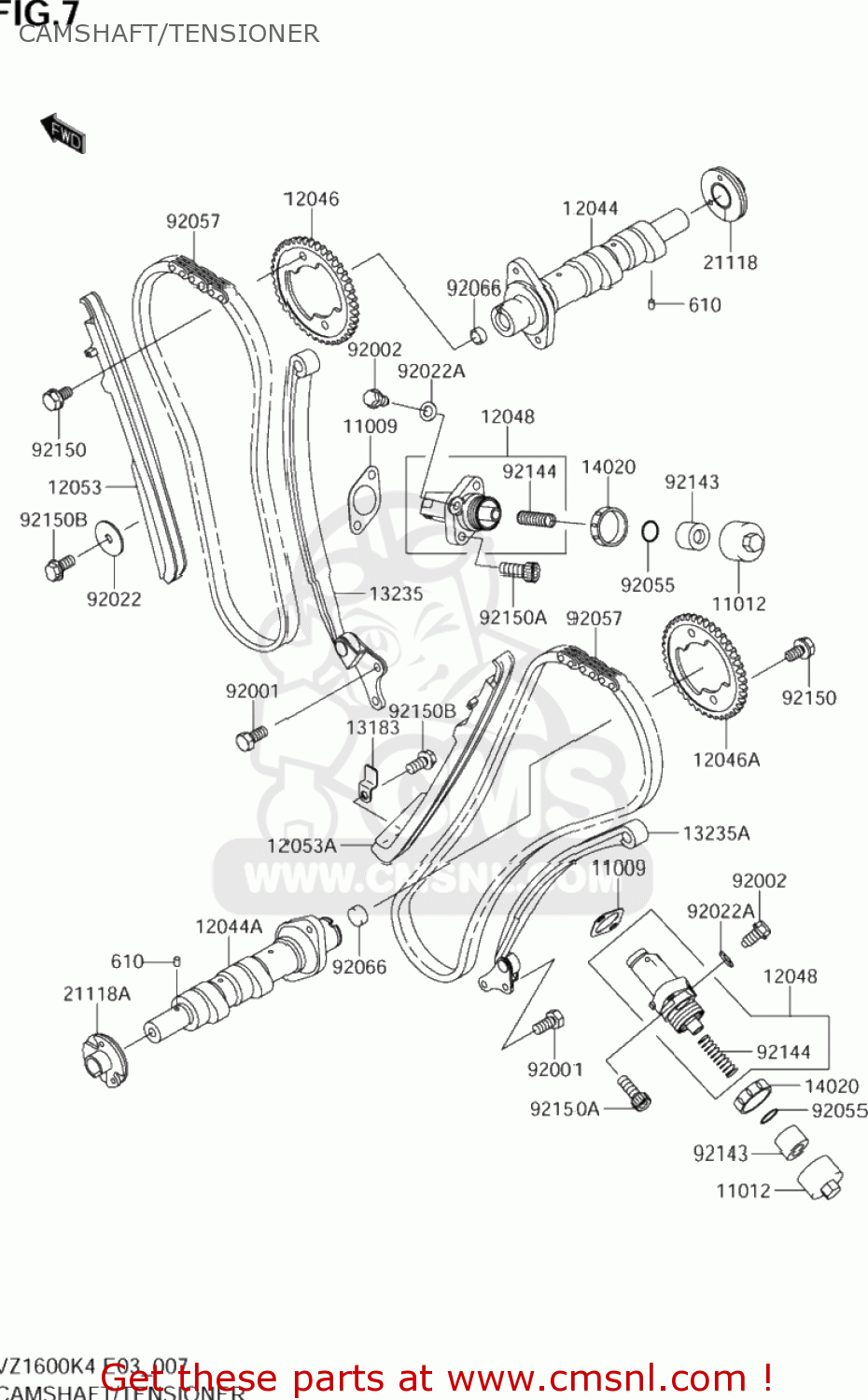

Camshaft/tensioner diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
CAMSHAFT/TENSIONER VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
610
KK610A0406
ref: 610
ROLLER,4X6
€ 1.50
11009
K110091858
ref: 11009
GASKET,TENSIONER (NAS)
€ 4.50
11012
K110121959
ref: 11012
CAP,TENSIONER
€ 20.50
12044
K120441200
ref: 12044
CAMSHAFT-VALVE
€ 432.50
12044A
K120441494
ref: 12044A
CAMSHAFT-VALVE
€ 432.50
12046
K120461175
ref: 12046
SPROCKET,CAMSH
€ 41.00
12046A
K120461176
ref: 12046A
SPROCKET,CAMSH
€ 41.00
12048
K120481160
ref: 12048
TENSIONER-ASSY
€ 122.50
12053
K120531219
ref: 12053
GUIDE-CHAIN,FR,TENSIONER
€ 30.50
12053A
K120531221
ref: 12053A
GUIDE-CHAIN,RR,TENSIONER
€ 30.50
13183
K131831096
ref: 13183
PLATE
€ 4.00
13235
K132351070
ref: 13235
GUIDE-COMP,FR
€ 57.00
13235A
K132351071
ref: 13235A
GUIDE-COMP,RR
€ 57.00
14020
K140201054
ref: 14020
RETAINER,TENSIONER
€ 22.00
21118
K211181061
ref: 21118
DECOMPRESSOR,FR
€ 69.00
21118A
K211181085
ref: 21118A
DECOMPRESSOR,RR
€ 69.00
92001
K920011457
ref: 92001
BOLT,6X16
€ 4.50
92002
K920021356
ref: 92002
BOLT,6MM
€ 4.50
92022
K920221282
ref: 92022
WASHER,7X28X1.6
€ 3.50
92022A
KK92022304
ref: 92022A
WASHER,6.2X11X1
€ 5.50
92055
K920551555
ref: 92055
RING-O,TENSIONER
€ 2.50
92057
K920571422
ref: 92057
CHAIN,CAM,92RH2010
€ 79.50
92066
K920661198
ref: 92066
PLUG
€ 3.50
92143
K921431836
ref: 92143
COLLAR,TENSIONER
€ 12.00
92144
K921441921
ref: 92144
SPRING,TENSIONER
€ 6.50
92150
K921501725
ref: 92150
BOLT,FLANGED,6X11
€ 3.50
92150A
K921501795
ref: 92150A
BOLT,SOCKET,6X20
€ 3.50
92150B
K921501868
ref: 92150B
BOLT-FLANGED-SMALL
€ 2.00
