FRAME FITTING
VZ1600 MARAUDER 2004 (K4) USA (E03)

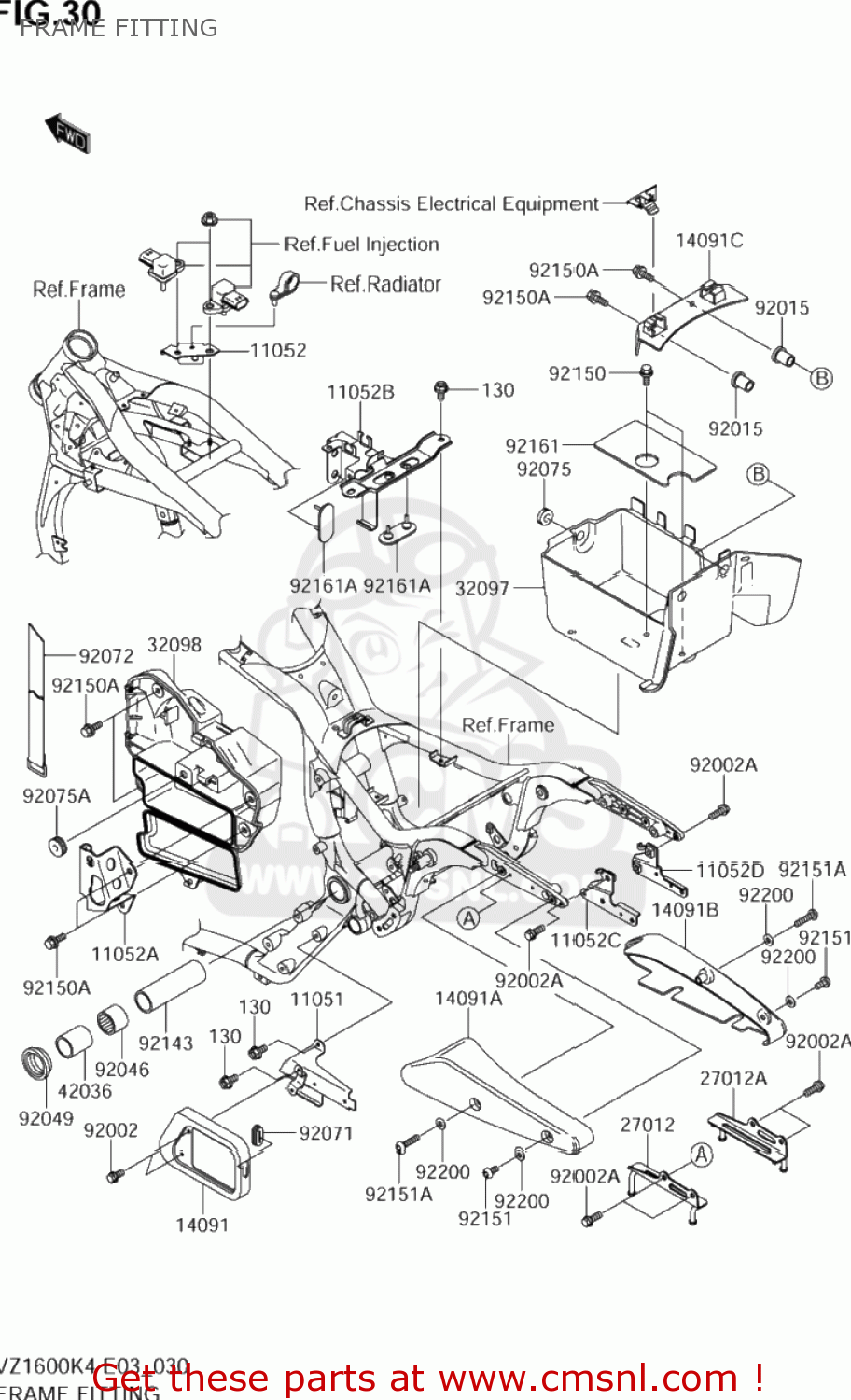

Frame fitting diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
FRAME FITTING VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
130
KK130J0612
ref: 130
BOLT-FLANGED
€ 1.50
11051
K110511163
ref: 11051
BRACKET,REGULA
€ 44.00
11052
K110521071
ref: 11052
BRACKET
€ 5.50
11052A
K110521234
ref: 11052A
BRACKET,SIDE C
€ 11.50
11052B
K110521281
ref: 11052B
BRACKET,BATTER
€ 16.00
11052C
K110521282
ref: 11052C
BRACKET,HELMET LOCK,LH
€ 0.00
11052D
K110521283
ref: 11052D
BRACKET,HELMET LOCK,RH
€ 0.00
14091
K140911079
ref: 14091
COVER,REGULATO
€ 39.50
14091A
K140911361
ref: 14091A
COVER,RR FENDER,LH
€ 44.50
14091B
K140911363
ref: 14091B
COVER,RR FENDER,RH
€ 44.50
14091C
K140911373
ref: 14091C
COVER,BATTERY
€ 13.00
27012
K270121609
ref: 27012
HOOK,BUNGEE CO
€ 14.00
27012A
K270121610
ref: 27012A
HOOK,BUNGEE CO
€ 14.00
32097
K320971192
ref: 32097
CASE-BATTERY
€ 25.00
32098
K320981137
ref: 32098
CASE-TOOL
€ 116.50
42036
K420361330
ref: 42036
SLEEVE,L=45
€ 17.50
92002
K920021569
ref: 92002
BOLT,6X12
€ 3.50
92002A
K920021570
ref: 92002A
BOLT,6X16
€ 4.00
92015
K920151700
ref: 92015
NUT
€ 9.50
92046
K920461202
ref: 92046
BEARING-NEEDLE,BM2824
€ 18.00
92049
K920491181
ref: 92049
SEAL-OIL
€ 6.00
92071
K920710013
ref: 92071
GROMMET
€ 3.50
92072
K920721331
ref: 92072
BAND,L=470
€ 15.00
92075
K920751067
ref: 92075
DAMPER
€ 3.50
92075A
K920751629
ref: 92075A
DAMPER
€ 4.00
92143
K921431878
ref: 92143
COLLAR,20.2X27X90
€ 16.50
92150
K921501133
ref: 92150
BOLT,6X14
€ 3.50
92150A
K921501198
ref: 92150A
BOLT,6X16
€ 3.00
92151
K921511940
ref: 92151
BOLT,SOCKET,6X12
€ 2.00
92151A
K921511945
ref: 92151A
BOLT,SOCKET,6X25
€ 3.00
92161
K921611097
ref: 92161
DAMPER,BATTERY
€ 4.00
92161A
K921611214
ref: 92161A
DAMPER,BATTERY BAND
€ 3.00
92200
K922003775
ref: 92200
WASHER,6.5X14.5X1.5
€ 1.50
