ENGINE MOUNT
VZ1600 MARAUDER 2004 (K4) USA (E03)

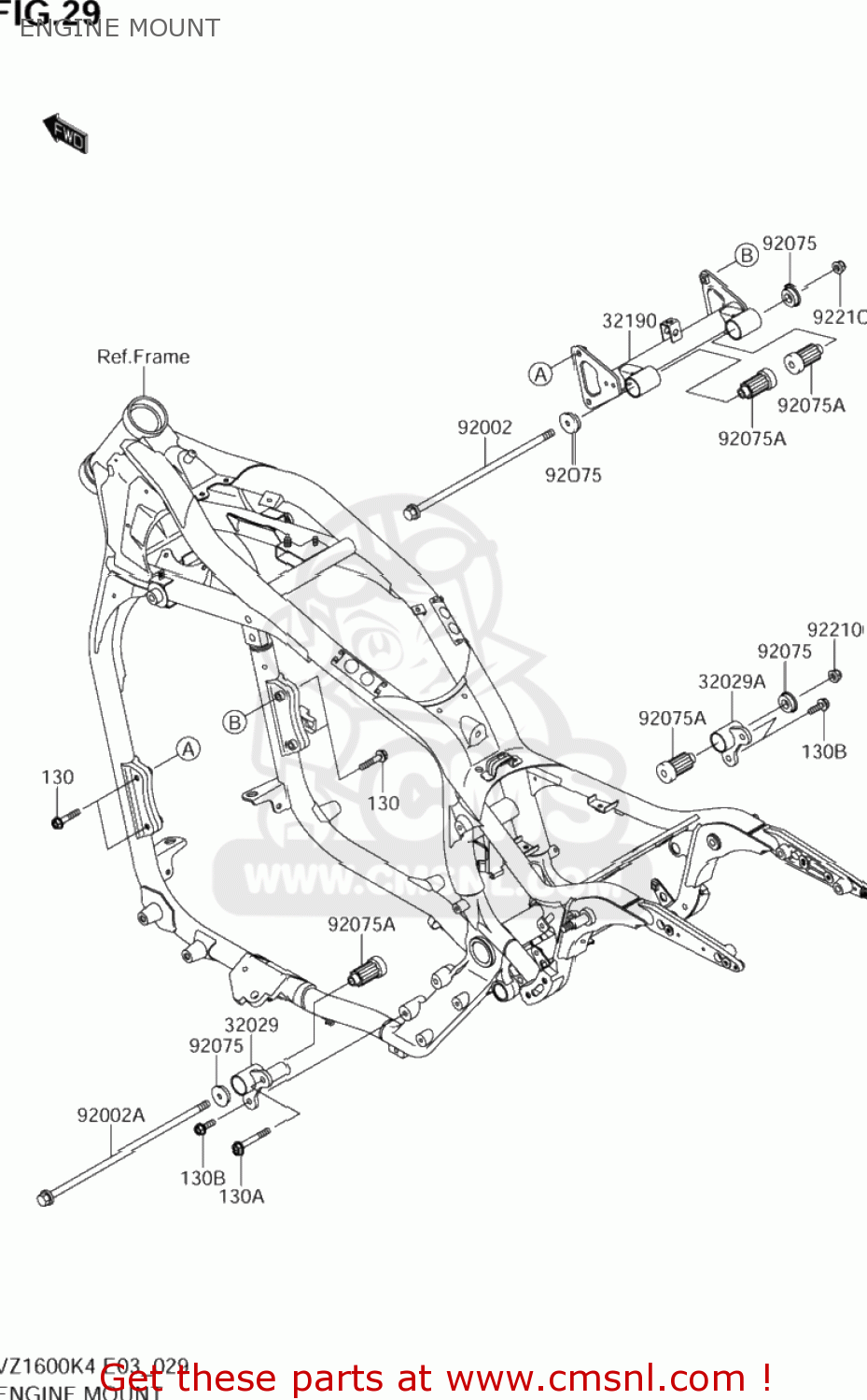

Engine mount diagram VZ1600 MARAUDER 2004 (K4) USA (E03)
ENGINE MOUNT VZ1600 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
130
KK130J0840
ref: 130
BOLT-FLANGED,8X40
€ 1.50
130A
KK130J0860
ref: 130A
BOLT-FLANGED
€ 2.50
130B
KK130S0825
ref: 130B
BOLT,FLANGED
€ 1.50
32029
K320291986
ref: 32029
BRACKET-ENGINE
€ 42.00
32029A
K320291987
ref: 32029A
BRACKET-ENGINE
€ 37.00
32190
K321900022
ref: 32190
BRACKET-ENGINE
€ 130.50
92002
K920021206
ref: 92002
BOLT,FLANGED,10X285
€ 12.50
92002A
K920021540
ref: 92002A
BOLT,FLANGED,10X330
€ 15.00
92075
K920751738
ref: 92075
DAMPER,ENGINE BRACKET
€ 15.50
92075A
K920751739
ref: 92075A
DAMPER,ENGINE MOUNT,MAIN
€ 30.00
92210
K922101081
ref: 92210
NUT,LOCK,FLANGED,10MM
€ 9.00
