GEAR CHANGE DRUM/SHIFT FORK

VZ1600 MARAUDER 2004 (K4) USA (E03)

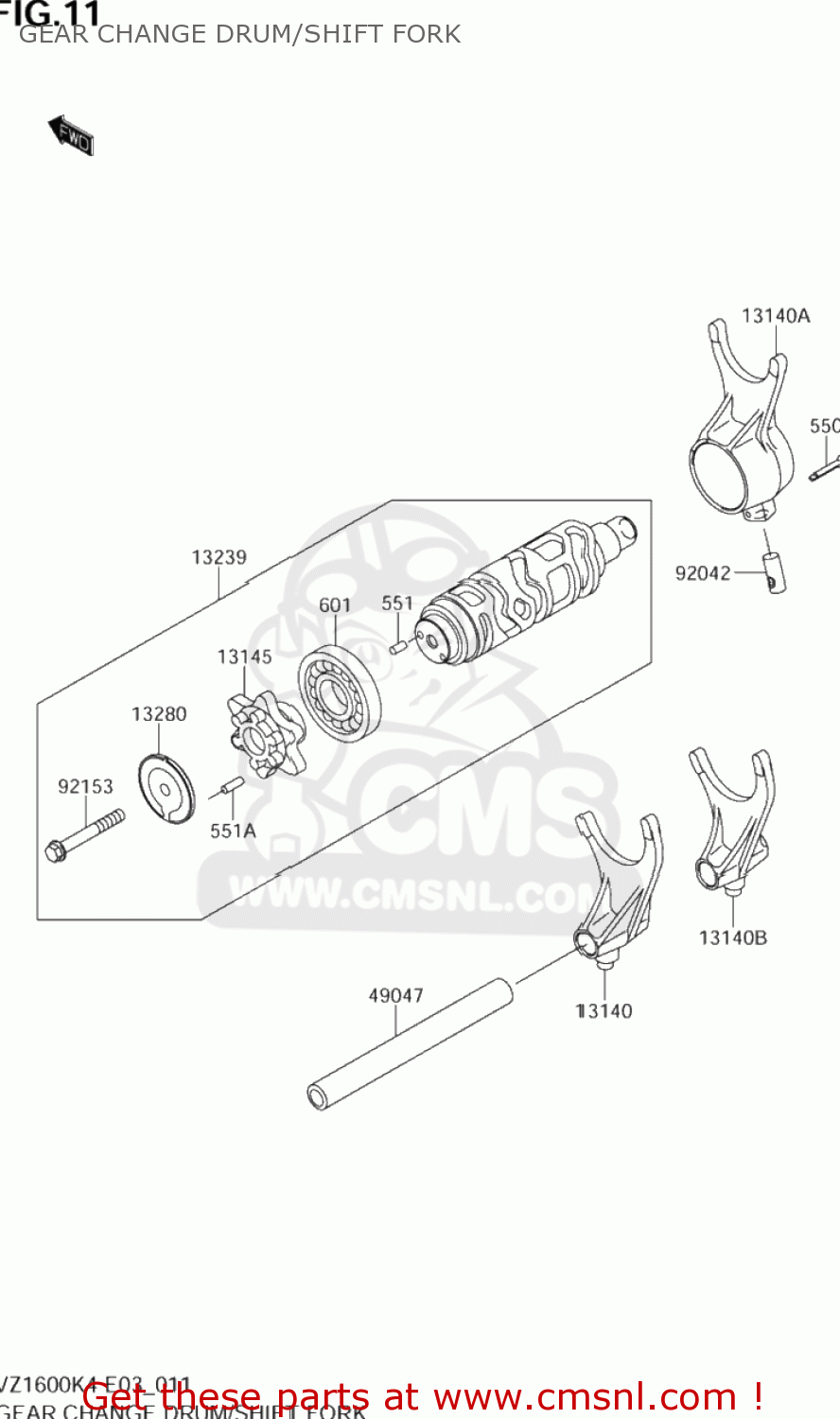

Gear change drum/shift fork diagram VZ1600 MARAUDER 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

550

KK550D3020
ref: 550

PIN-COTTER,3.0X20

€ 1.50

551

KK551A0408
ref: 551

PIN-DOWEL,4X8

€ 2.50

551A

KK551A0412
ref: 551A

PIN-DOWEL

€ 3.00

601

KK601A6005
ref: 601

BEARING-BALL

€ 9.00

13140

K131401270
ref: 13140

FORK-SHIFT,OUTPUT TOP

€ 56.50

13140A

K131401292
ref: 13140A

FORK-SHIFT,INPUT 3RD

€ 56.50

13140B

K131401293
ref: 13140B

FORK-SHIFT,OUTPUT 4TH

€ 56.50

13145

K131451089
ref: 13145

CAM-CHANGE DRU

€ 30.50

13239

K132391214
ref: 13239

DRUM-ASSY-CHANGE

€ 160.00

13280

K132801300
ref: 13280

HOLDER

€ 17.00

49047

K490471095
ref: 49047

ROD-SHIFT

€ 13.00

92042

KK92042021
ref: 92042

PIN,DOWEL,8X18

€ 6.50

92153

K921531281
ref: 92153

BOLT,6X45

€ 4.00

GEAR CHANGE DRUM/SHIFT FORK

all assemblies
