Buy Suzuki VZ Parts Online


SWINGARM

VZ1600 MARAUDER 2004 (K4) USA (E03)

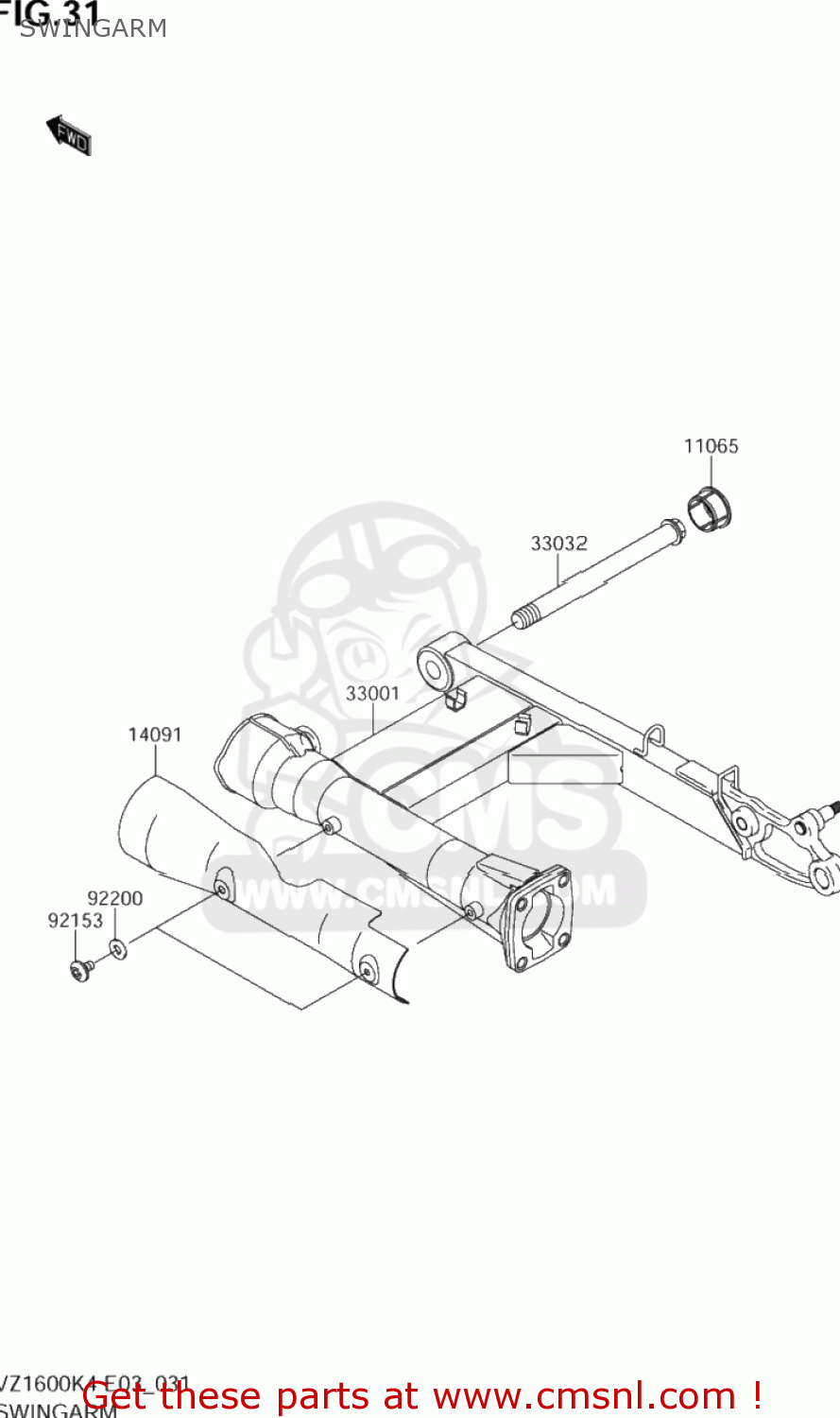

Swingarm diagram VZ1600 MARAUDER 2004 (K4) USA (E03)

SWINGARM VZ1600 MARAUDER 2004 (K4) USA (E03)
SWINGARM VZ1600 MARAUDER 2004 (K4) USA (E03)
SWINGARM VZ1600 MARAUDER 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
11065
K110651259
ref: 11065
CAP,SWING ARM
€ 4.00
14091
K140910060
ref: 14091
COVER,SWING AR
€ 31.50
33001
K330010005
ref: 33001
ARM-COMP-SWING
€ 694.50
33032
K330321181
ref: 33032
SHAFT-SWING AR
€ 48.50
92153
K921530411
ref: 92153
BOLT,SOCKET,6X10
€ 2.00
92200
K922003775
ref: 92200
WASHER,6.5X14.5X1.5
K922003775
€ 1.50
