CRANKCASE COVER
TL1000S 2000 (Y)

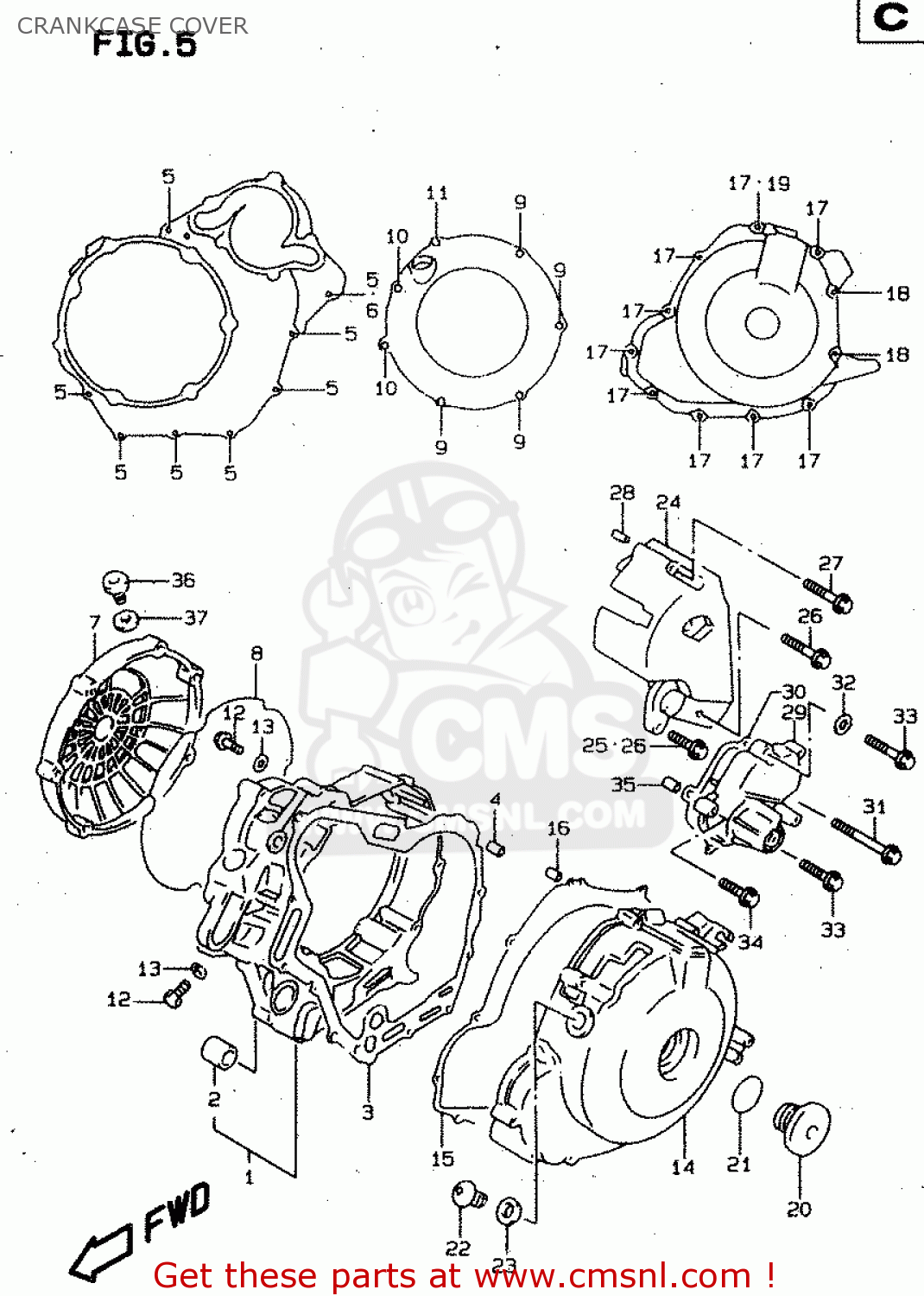

Crankcase cover diagram TL1000S 2000 (Y)
CRANKCASE COVER TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
1134002F00
ref: 1
MODEL V
COVER COMP,CLUTCH
€ 399.00
1
1134002F10
ref: 1
MODEL W/X
COVER,CLUTCH
€ 940.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148202F00
ref: 3
GASKET,CLUTCH COVER (NAS)
€ 21.50
4
0421109149
ref: 4
PIN
€ 2.00
5
0154706307
ref: 5
BOLT
€ 2.50
6
0916806024
ref: 6
GASKET(5.8X11X1.2) (NAS)
€ 2.00
7
1137002F00
ref: 7
MODEL V, ->11370-02F
COVER COMP,CLUTCH,OUTER
€ 119.00
7
1137002F10
ref: 7
MODEL W/X
COVER,CLUTCH OUTER
€ 119.00
8
1148402F00
ref: 8
MODEL V
O RING,CLUTCH COVER OUTER
€ 22.00
8
1148402F10
ref: 8
MODEL W/X
O RING,CLUTCH COVER OUTER
€ 17.50
9
0154706307
ref: 9
BOLT
€ 2.50
10
0154706803
ref: 10
MODEL V
BOLT
€ 3.50
10
0154706757
ref: 10
MODEL W/X
BOLT
€ 2.50
11
0154706857
ref: 11
BOLT
€ 2.50
12
0155006103
ref: 12
MODEL V
BOLT
€ 2.50
12
0155006103
ref: 12
MODEL W/X
BOLT
€ 2.50
13
0916806004
ref: 13
MODEL V
GASKET(6.2X11X1).2 (NAS)
€ 1.50
13
0916806004
ref: 13
MODEL W/X
GASKET(6.2X11X1).2 (NAS)
€ 1.50
14
1135102F00
ref: 14
MODEL V, ->11351-02F
COVER,MAGNETO
€ 222.00
14
1135102F01
ref: 14
MODEL W/X
COVER,MAGNETO
€ 222.00
15
1148302F00
ref: 15
GASKET,MAGNETO COVER (NAS)
€ 17.50
16
0421109149
ref: 16
PIN
€ 2.00
17
0154706357
ref: 17
BOLT
€ 2.50
18
0154706707
ref: 18
BOLT
€ 2.50
19
0916806024
ref: 19
GASKET(5.8X11X1.2) (NAS)
€ 2.00
20
0925936021
ref: 20
PLUG
€ 11.00
21
0928033004
ref: 21
O RING(D:3.1,ID:32.7)
€ 2.50
22
0924814005
ref: 22
PLUG,14X12
€ 5.00
23
0916814002
ref: 23
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
24
1136002F00
ref: 24
COVER,ENGINE SPROCKET
€ 51.00
25
0154706257
ref: 25
MODEL V
BOLT
€ 2.50
26
0154706357
ref: 26
MODEL V
BOLT
€ 2.50
26
0154706357
ref: 26
MODEL W/X
BOLT
€ 2.50
27
0154706757
ref: 27
BOLT
€ 2.50
28
0421109149
ref: 28
PIN
€ 2.00
29
1138102F00
ref: 29
MODEL V
COVER,GEAR SHIFT
€ 58.00
29
1138102F01
ref: 29
MODEL W/X
COVER,GEAR SHIFT
€ 58.00
30
1148502F00
ref: 30
GASKET,GEAR SHIFT COVER (NAS)
€ 4.00
31
0910306126
ref: 31
BOLT(6X105)
€ 5.00
32
0916806024
ref: 32
GASKET(5.8X11X1.2) (NAS)
€ 2.00
33
0154706257
ref: 33
BOLT
€ 2.50
34
0154706357
ref: 34
BOLT
€ 2.50
35
0421109149
ref: 35
PIN
€ 2.00
36
0925920008
ref: 36
PLUG
€ 6.50
37
0928017003
ref: 37
O RING(D:3.1,ID:16.8)
€ 2.00
