TAIL LAMP (MODEL V)
TL1000S 2000 (Y)

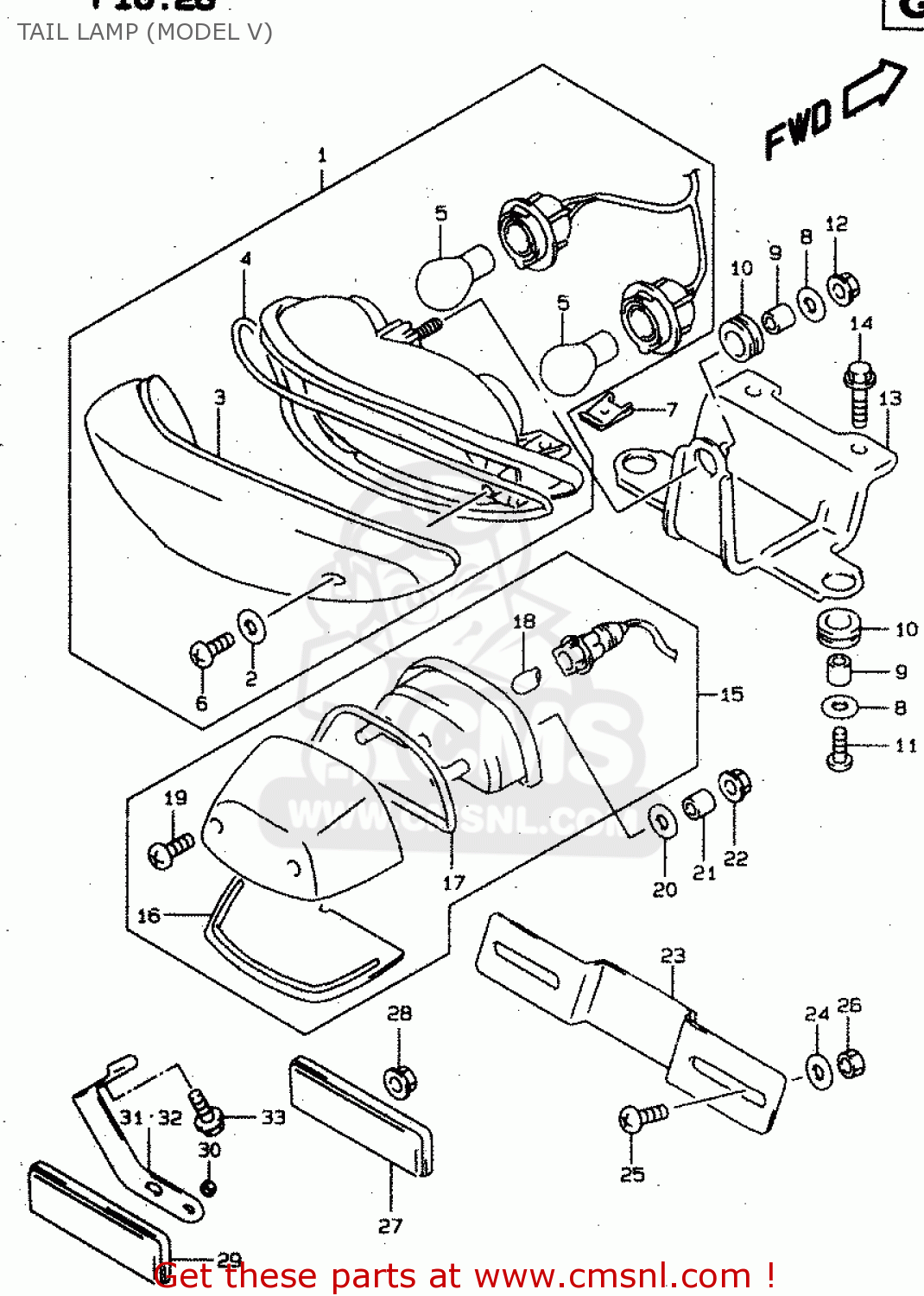

Tail lamp (model v) diagram TL1000S 2000 (Y)
TAIL LAMP (MODEL V) TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
3571002F00
ref: 1
LAMP ASSY,RR COMBINATION
€ 167.00
2
3562743010
ref: 2
GASKET (NAS)
€ 2.00
3
3571202F00
ref: 3
LENS
€ 21.50
4
3571302F00
ref: 4
GASKET (NAS)
€ 6.50
5
0947112083
ref: 5
BULB(12V21/5W)
€ 6.00
6
0321104203
ref: 6
SCREW
€ 1.50
7
0914805020
ref: 7
NUT
€ 2.00
8
0916006088
ref: 8
WASHER(6.5X20X1.6)
€ 2.00
9
0918006285
ref: 9
SPACER(6.5X10X9)
€ 2.50
10
0932009009
ref: 10
CUSHION
€ 5.00
11
0354105203
ref: 11
SCREW
€ 2.50
12
0831610063
ref: 12
NUT
€ 2.50
13
3573002F00
ref: 13
BRACKET,RR COMBINATION LAMP
€ 12.00
14
0155006163
ref: 14
BOLT
€ 2.50
15
3591002F00
ref: 15
LAMP ASSY,LICENSE
€ 111.50
16
3591202F00
ref: 16
LENS
€ 10.00
17
3591302F00
ref: 17
GASKET (NAS)
€ 4.50
18
0947112081
ref: 18
BULB(12V5W)
€ 1.50
19
0321104163
ref: 19
SCREW
€ 1.50
20
0916006088
ref: 20
WASHER(6.5X20X1.6)
€ 2.00
21
0918005054
ref: 21
SPACER(5.5X9.5X11.5)
€ 2.00
22
0831610053
ref: 22
NUT
€ 2.50
23
3592700A10
ref: 23
BRACKET,LICENSE PLATE
€ 6.00
24
0916006088
ref: 24
WASHER(6.5X20X1.6)
€ 2.00
25
0214206123
ref: 25
SCREW 6X12
€ 2.00
26
0831610063
ref: 26
NUT
€ 2.50
27
3597024D60
ref: 27
REFLECTOR ASSY,RR
€ 19.50
28
0831620053
ref: 28
NUT
€ 2.00
29
3595043431
ref: 29
E39
REFLEX REFLECTOR,FR SIDE
€ 12.00
30
0831000053
ref: 30
E39
NUT
€ 2.50
31
3597502F00
ref: 31
E39
BRACKET,RR SIDE RR,R
€ 0.00
32
3597602F00
ref: 32
E39
BRACKET,RR SIDE RR,L
€ 0.00
33
0155006123
ref: 33
E39
BOLT
€ 2.50
