FRAME

TL1000S 2000 (Y)

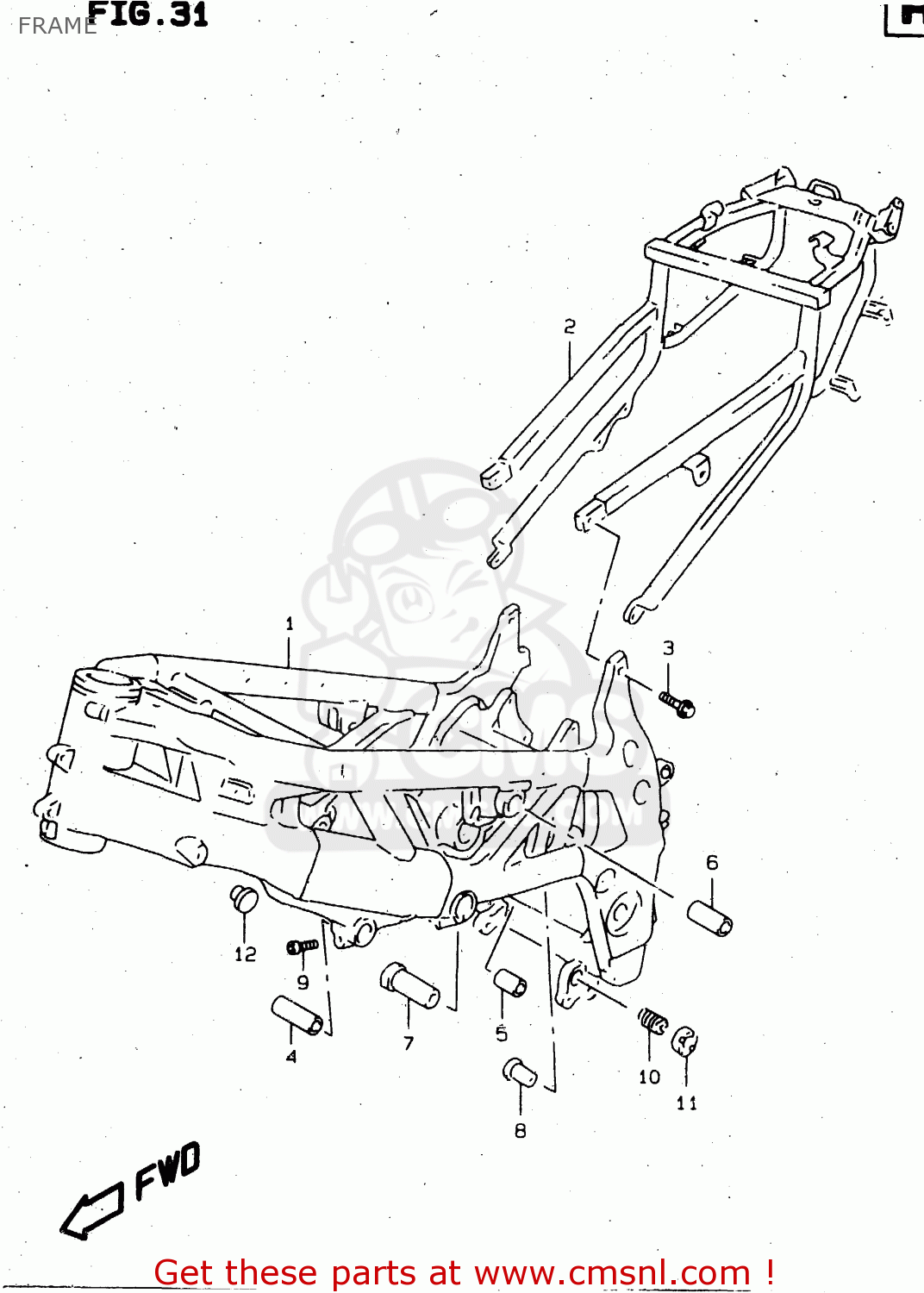

Frame diagram TL1000S 2000 (Y)

prices are in EUR

ref

part #

description

quantity

4110002F00
ref: 1
MODEL V

FRAME COMP

€ 1,705.50

4110002F03
ref: 1
MODEL W/X

FRAME

€ 1,705.50

4120002F00
ref: 2

RAIL,SEAT

€ 1,255.00

5919933E00
ref: 3
MODEL V

BOLT,SEAT RAIL

€ 6.00

0910310296
ref: 3
MODEL W/X

BOLT(10X30)

€ 6.00

4119802F00
ref: 4

SPACER,ENG HEAD MTG FR,L

€ 31.50

4194102F00
ref: 5

SPACER,ENG HEAD MTG RR,R

€ 20.00

4194202F00
ref: 6

SPACER,ENG HEAD MTG RR,L

€ 17.00

4193202F00
ref: 7

SPACER,CRANK CASE MTG FR,L

€ 41.50

4191133E00
ref: 8

SPACER,ENGINE MOUNTING

€ 16.50

0713008307
ref: 9

BOLT

€ 4.50

4192133E10
ref: 10
MODEL V

BOLT,CRANKCASE ADJUST

€ 46.00

4192133E11
ref: 10
MODEL W/X

BOLT,CRANKCASE ADJUST

€ 46.00

4192233E10
ref: 11

NUT,CRANKCASE ADJUST

€ 14.50

0925006001
ref: 12

CAP

€ 2.00

all assemblies
