FRONT MASTER CYLINDER
TL1000S 2000 (Y)

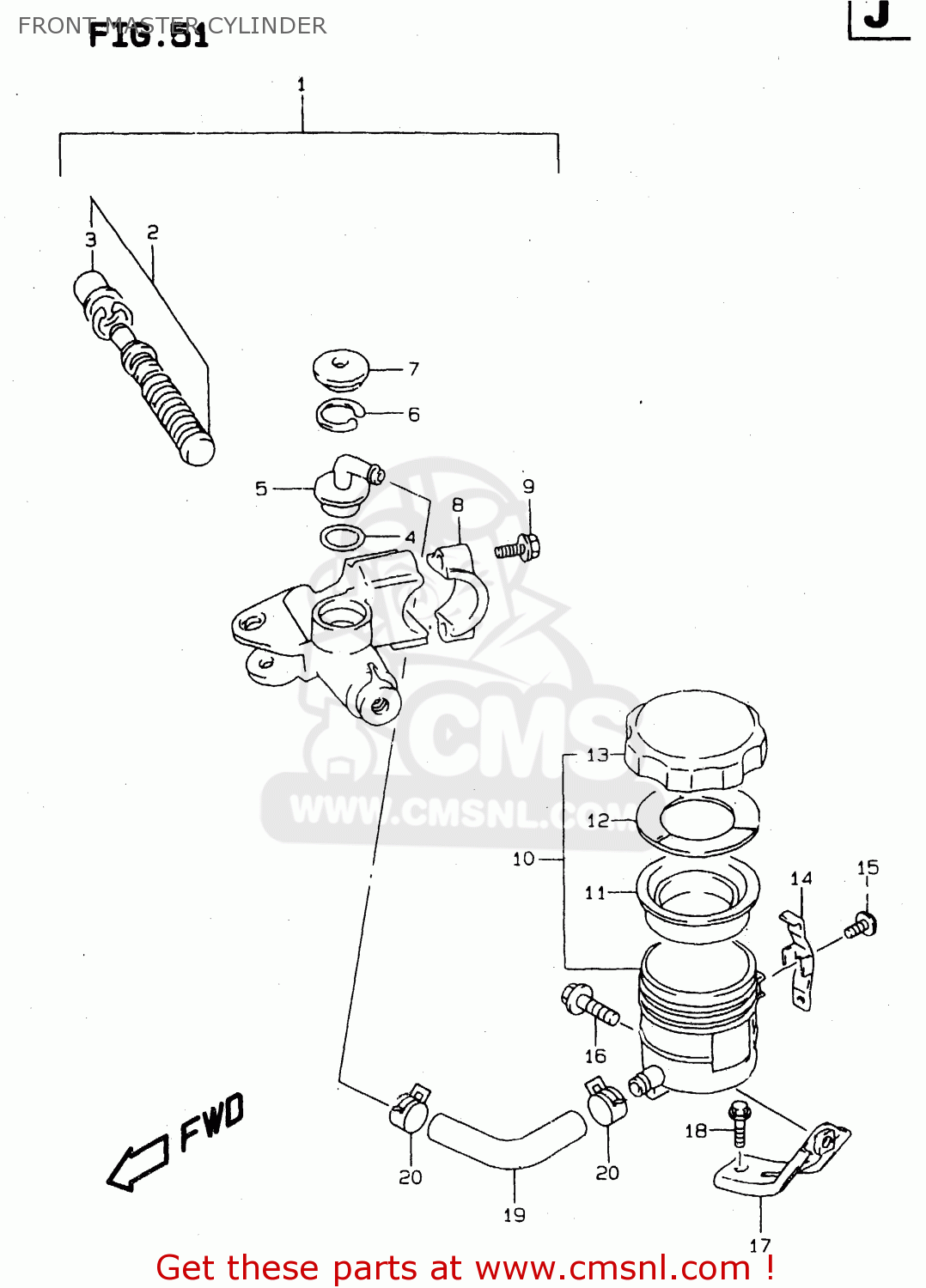

Front master cylinder diagram TL1000S 2000 (Y)
FRONT MASTER CYLINDER TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
5960017C00
ref: 1
CYLINDER ASSY,FR MASTER
€ 210.00
2
5960045850
ref: 2
PISTON & CUP SET
€ 38.50
3
5966644300
ref: 3
BOOT
€ 6.00
4
6968634200
ref: 4
O RING
€ 3.50
5
5967217C00
ref: 5
CONNECTOR
€ 8.00
6
6967400B20
ref: 6
CIRCLIP
€ 3.00
7
5967317C00
ref: 7
COVER,DUST
€ 7.00
8
5967136500
ref: 8
HOLDER
€ 10.00
9
5967519C00
ref: 9
BOLT(6X25)
€ 3.00
10
5974007D00
ref: 10
TANK ASSY,RESERVOIR
€ 67.00
11
5966718441
ref: 11
DIAPHRAGM
€ 8.50
12
5966818441
ref: 12
PLATE,DIAPHRAGM
€ 3.50
13
5966907D00
ref: 13
CAP
€ 16.50
14
5974317C00
ref: 14
PLATE,RESERVOIR TANK CAP
€ 8.00
15
0214204103
ref: 15
SCREW
€ 1.50
16
0155006123
ref: 16
BOLT
€ 2.50
17
5975002F00
ref: 17
BRACKET,RESERVOIR TANK FR
€ 5.50
18
0155006123
ref: 18
BOLT
€ 2.50
19
5973132C00
ref: 19
HOSE,FR RESERVOIR TANK
€ 18.00
20
5973517C00
ref: 20
CLAMP,RESERVOIR TANK FR
€ 4.00
