WATER PUMP
TL1000S 2000 (Y)

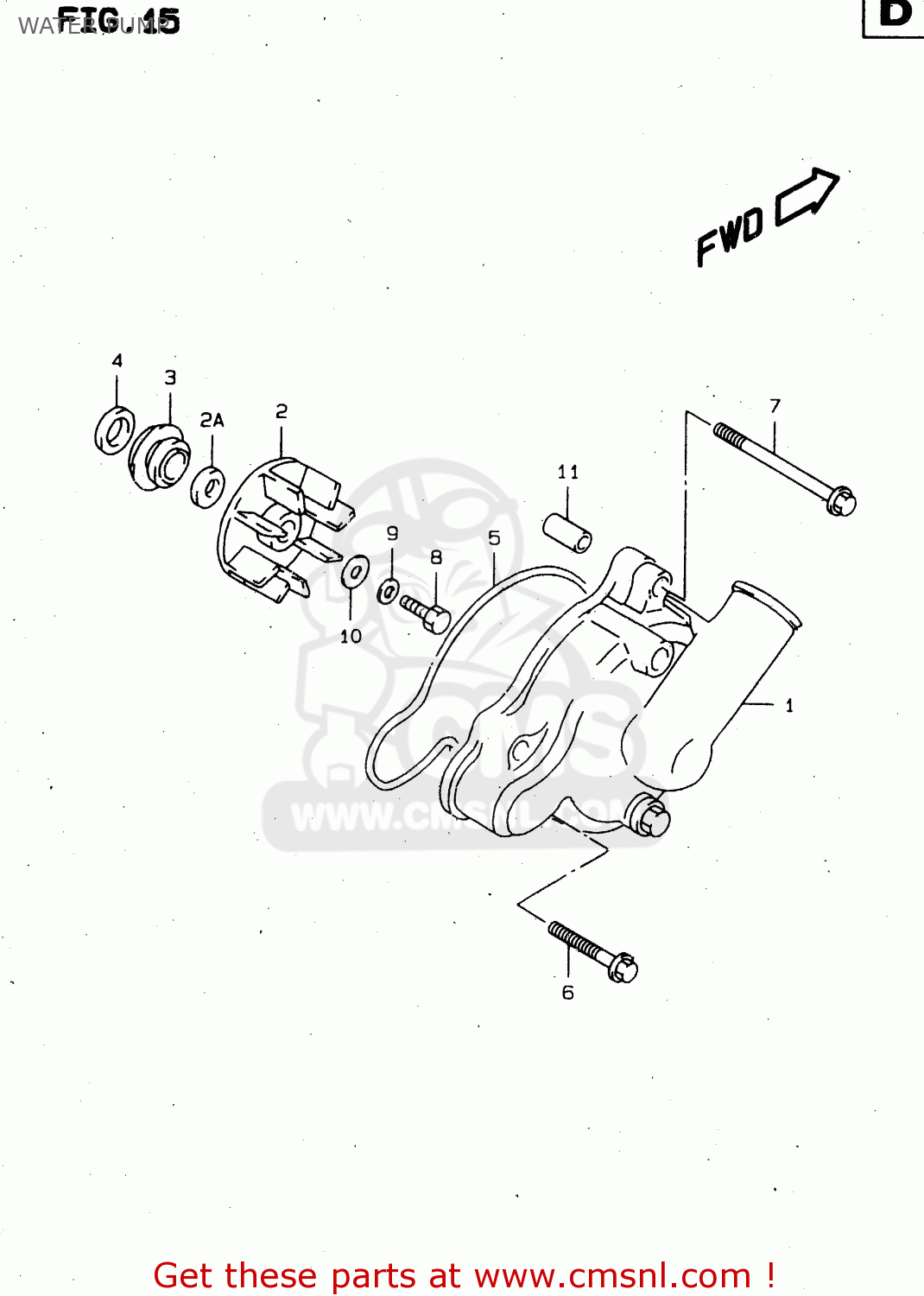

Water pump diagram TL1000S 2000 (Y)
WATER PUMP TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
1741002F00
ref: 1
MODEL V, ->17410-02F
CASE COMP,WATER PUMP
€ 83.50
1
1741002F10
ref: 1
MODEL W/X
CASE,WATER PUMP
€ 89.50
2
1749102F00
ref: 2
IMPELLER,WATER PUMP
€ 22.00
2A
1753302F00
ref: 2A
WASHER,IMPELLER
€ 4.00
3
1747002F00
ref: 3
MODEL V
SEAL,MECHANICAL
€ 21.50
3
1747002F10
ref: 3
MODEL W/X
SEAL,MECHANICAL
€ 21.50
4
0928310005
ref: 4
MODEL V
SEAL,OIL(10X20X5)
€ 4.50
4
1746102F00
ref: 4
MODEL W/X
SEAL,WATER PUMP SHAFT OIL
€ 8.50
5
1743502F00
ref: 5
O RING,WATER PUMP CASE
€ 8.50
6
0154706307
ref: 6
BOLT
€ 2.50
7
0154706557
ref: 7
BOLT
€ 2.50
8
0910006099
ref: 8
MODEL V
BOLT(6X13)
€ 2.00
8
0910006162
ref: 8
MODEL W/X
BOLT(6X13)
€ 4.00
9
0916406006
ref: 9
WASHER
€ 2.50
10
0916806025
ref: 10
GASKET(6X15X2.2) (NAS)
€ 3.00
11
0421109149
ref: 11
PIN
€ 2.00
