WIRING HARNESS (MODEL W/X)
TL1000S 2000 (Y)

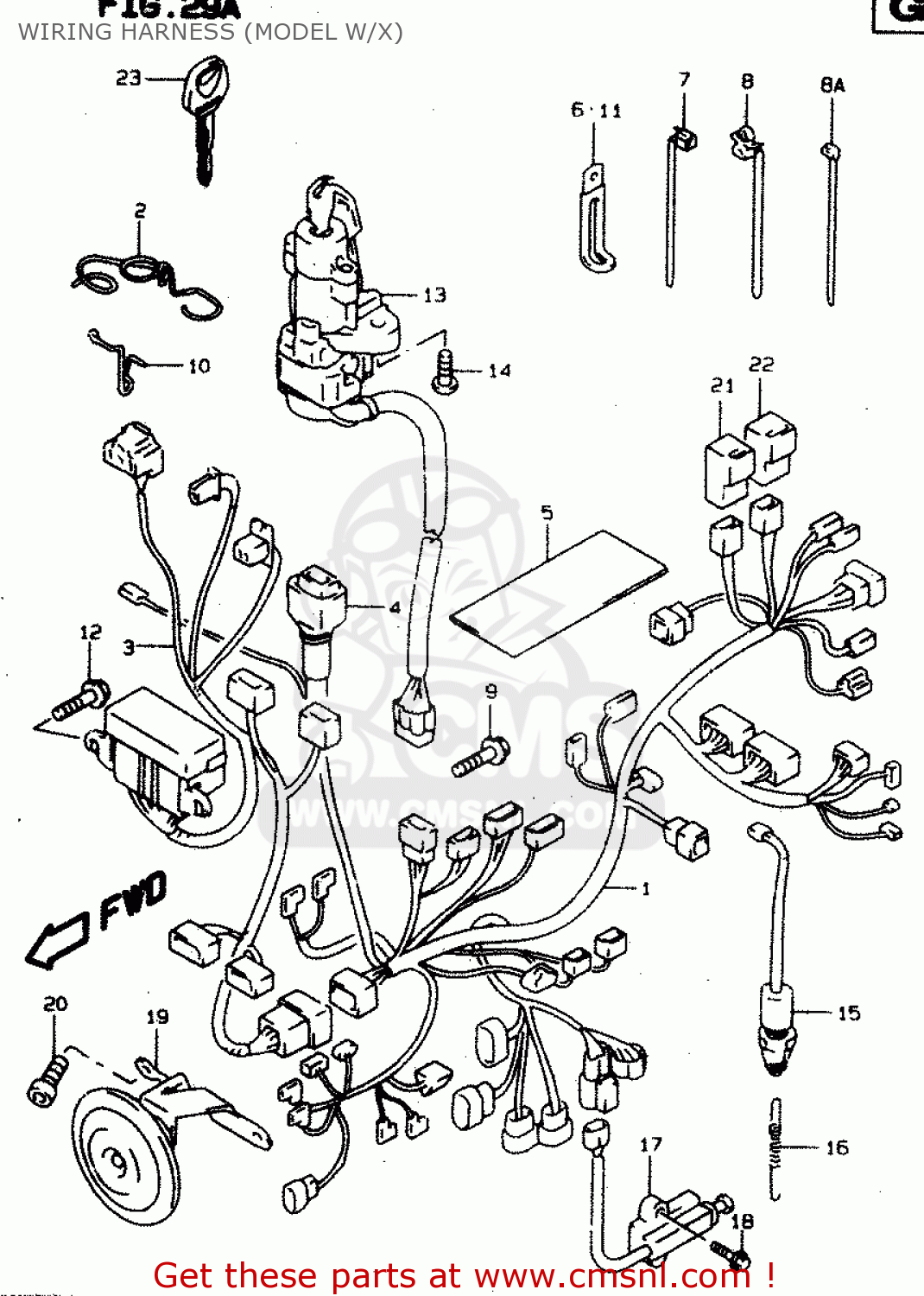

Wiring harness (model w/x) diagram TL1000S 2000 (Y)
WIRING HARNESS (MODEL W/X) TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
3661002F10
ref: 1
HARNESS,WIRING NO.1
€ 1,049.00
2
3661933E00
ref: 2
GUIDE,WIRING HARNESS
€ 10.50
3
3662002F10
ref: 3
HARNESS,WIRING NO.2
€ 185.00
3
3662002F20
ref: 3
E4, E18, E22, E25, E
HARNESS,WIRING NO.2
€ 185.00
4
3661833E00
ref: 4
COVER,SPEEDOMETER COUPLER
€ 5.50
5
3692014D00
ref: 5
35X170
PROTECTOR,WIRING HARNESS
€ 5.50
6
0940406432
ref: 6
<-09404-06429
CLAMP(L:65)
€ 2.50
7
0940714403
ref: 7
<-09407-11041
CLAMP(L:125)
€ 2.50
7
0940725401
ref: 7
CLAMP(L:235)
€ 4.00
8
0940711402
ref: 8
CLAMP(L:90)
€ 2.50
8
0940717401
ref: 8
CLAMP
€ 5.00
8
0940718402
ref: 8
CLAMP(L:165)
€ 2.50
8A
0940714407
ref: 8A
CLAMP(L:145)
€ 4.00
9
0155006103
ref: 9
BOLT
€ 2.50
10
3674533E00
ref: 10
STOPPER,FUSE BOX
€ 7.00
11
0940406433
ref: 11
CLAMP(L:80)
€ 3.00
12
0214206123
ref: 12
SCREW 6X12
€ 2.00
13
3710002F00
ref: 13
LOCK ASSY,STEERING
€ 121.50
13
3710002F10
ref: 13
E24
LOCK ASSY,STEERING
€ 142.50
14
0913908016
ref: 14
BOLT(8X20)
€ 3.50
15
3774031D00
ref: 15
SWITCH ASSY,STOP LAMP
€ 20.50
16
0944306012
ref: 16
SPRING
€ 3.00
17
3784026X50
ref: 17
SWITCH ASSY,SIDE STAND WARNING
€ 100.50
18
0155006163
ref: 18
BOLT
€ 2.50
19
3850002F10
ref: 19
HORN ASSY
€ 55.00
20
0712006123
ref: 20
BOLT
€ 3.50
21
3874026E00
ref: 21
RELAY ASSY
€ 32.50
22
3874026E00
ref: 22
RELAY ASSY
€ 32.50
23
3714633E00
ref: 23
OPT
KEY,BLANK
€ 13.00
