HEADLAMP (MODEL V E4, E18, E22, E25, E34, E39, P37)
TL1000S 2000 (Y)

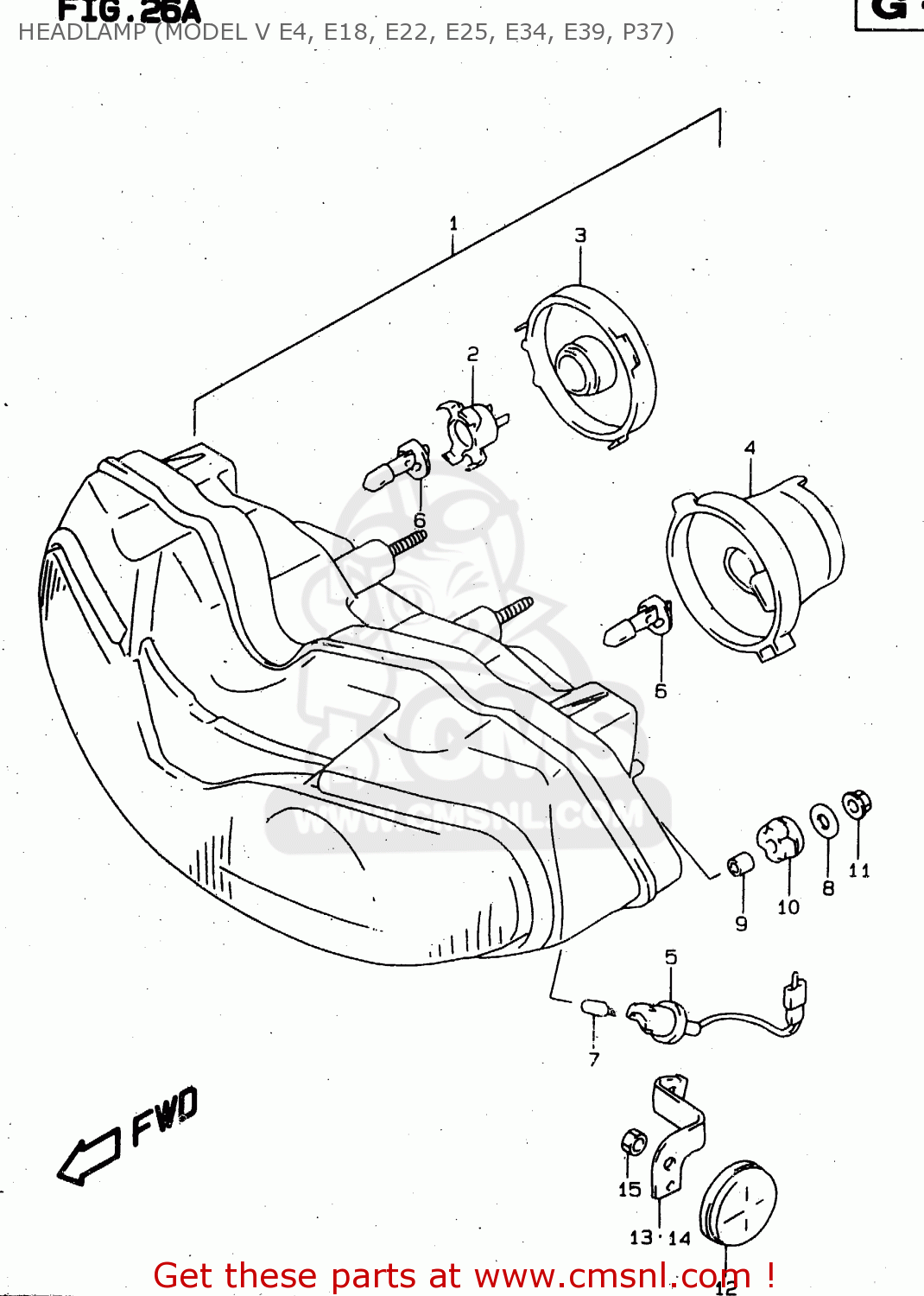

Headlamp (model v e4, e18, e22, e25, e34, e39, p37) diagram TL1000S 2000 (Y)
HEADLAMP (MODEL V E4, E18, E22, E25, E34, E39, P37) TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
3510002F50999
ref: 1
HEADLAMP ASSY
€ 363.50
2
3517518E50
ref: 2
ADAPTER ASSY
€ 21.00
3
3512502F00
ref: 3
COVER,SOCKET
€ 14.00
4
3611802F00
ref: 4
SOCKET & CORD ASSY
€ 46.50
5
3611818E51
ref: 5
SOCKET ASSY
€ 15.00
6
0947112122
ref: 6
PURCHASE LOCALLY
BULB(12V55W/H1/P14.5S/OSRA,PHI
€ 4.00
7
0947112081
ref: 7
BULB(12V5W)
€ 1.50
8
0916006088
ref: 8
WASHER(6.5X20X1.6)
€ 2.00
9
0918006267
ref: 9
SPACER(6.5X9X12.5)
€ 3.00
10
0932009010
ref: 10
CUSHION
€ 2.50
11
0831610063
ref: 11
NUT
€ 2.50
12
3595014A00
ref: 12
E39
REFLECTOR,REFLEX FR
€ 15.00
13
3595617D00
ref: 13
E39
BRACKET,FR SIDE RR,R
€ 6.50
14
3595717D00
ref: 14
E39
BRACKET,FR SIDE RR,L
€ 6.50
15
0831000053
ref: 15
E39
NUT
€ 2.50
