STEERING STEM (MODEL W/X)
TL1000S 2000 (Y)

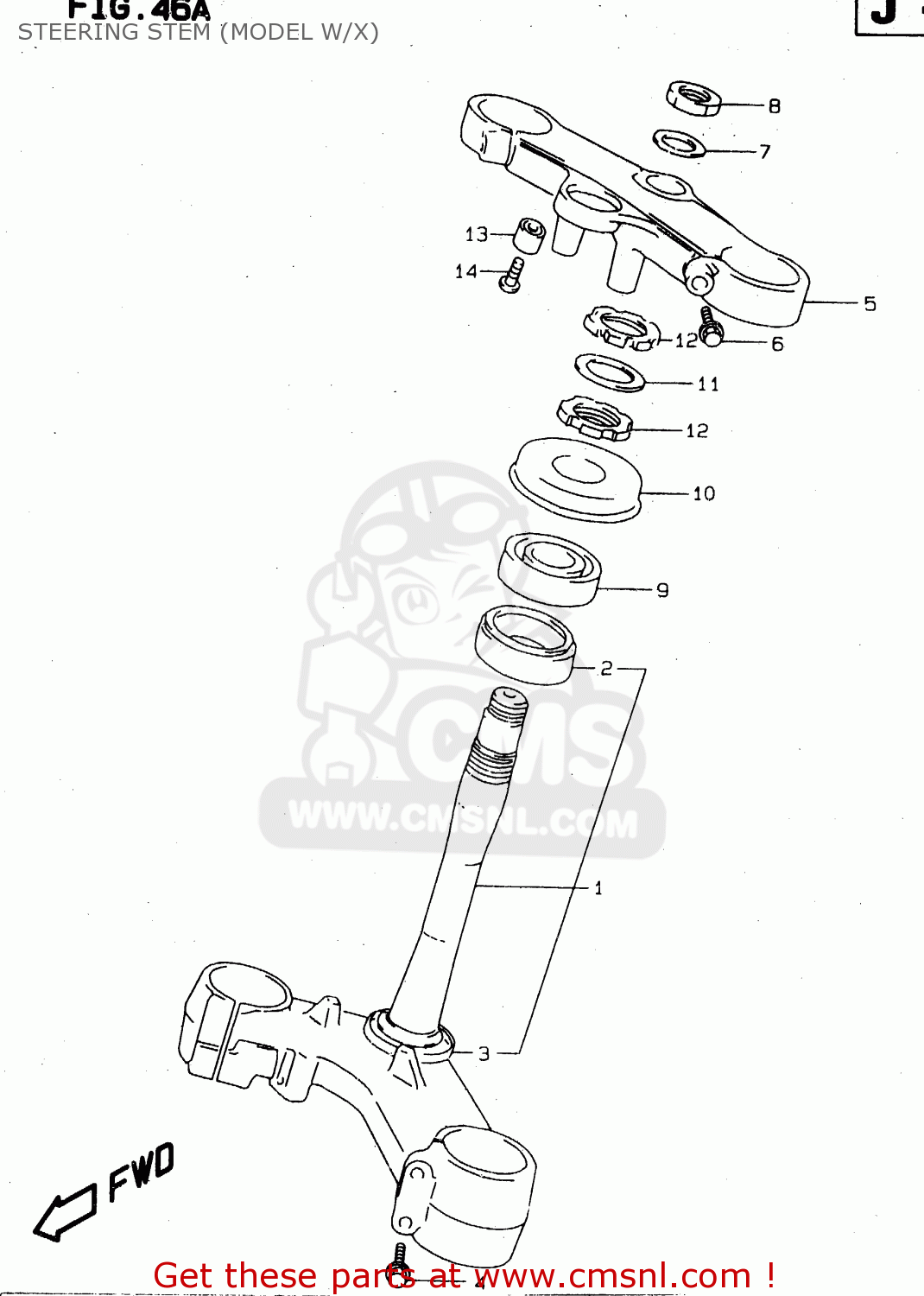

Steering stem (model w/x) diagram TL1000S 2000 (Y)
STEERING STEM (MODEL W/X) TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
5141002F00
ref: 1
STEM,STEERING
€ 716.50
2
0926730010
ref: 2
BEARING(30X55X17)
€ 46.50
3
5164412C00
ref: 3
SEAL,STEERING LWR
€ 5.50
4
0155008407
ref: 4
BOLT
€ 3.50
5
5131102F10
ref: 5
HEAD,STEERING STEM
€ 345.50
6
0155008357
ref: 6
BOLT
€ 3.50
7
5135627C00
ref: 7
WASHER,STEM HEAD(24.5X34X1.6)
€ 2.50
8
5135302F00
ref: 8
NUT
€ 26.50
9
0926730010
ref: 9
BEARING(30X55X17)
€ 46.50
10
5164333E00
ref: 10
SEAL,STEERING UPR DUST
€ 12.50
11
5164133E00
ref: 11
WASHER,STEERING STEM
€ 3.00
12
5163133E00
ref: 12
NUT,STEERING STEM
€ 12.00
13
5627802F00
ref: 13
BALANCER,BRACKET UPR
€ 18.50
14
0214206303
ref: 14
SCREW
€ 2.00
