GEAR SHIFTING (MODEL V/W)
TL1000S 2000 (Y)

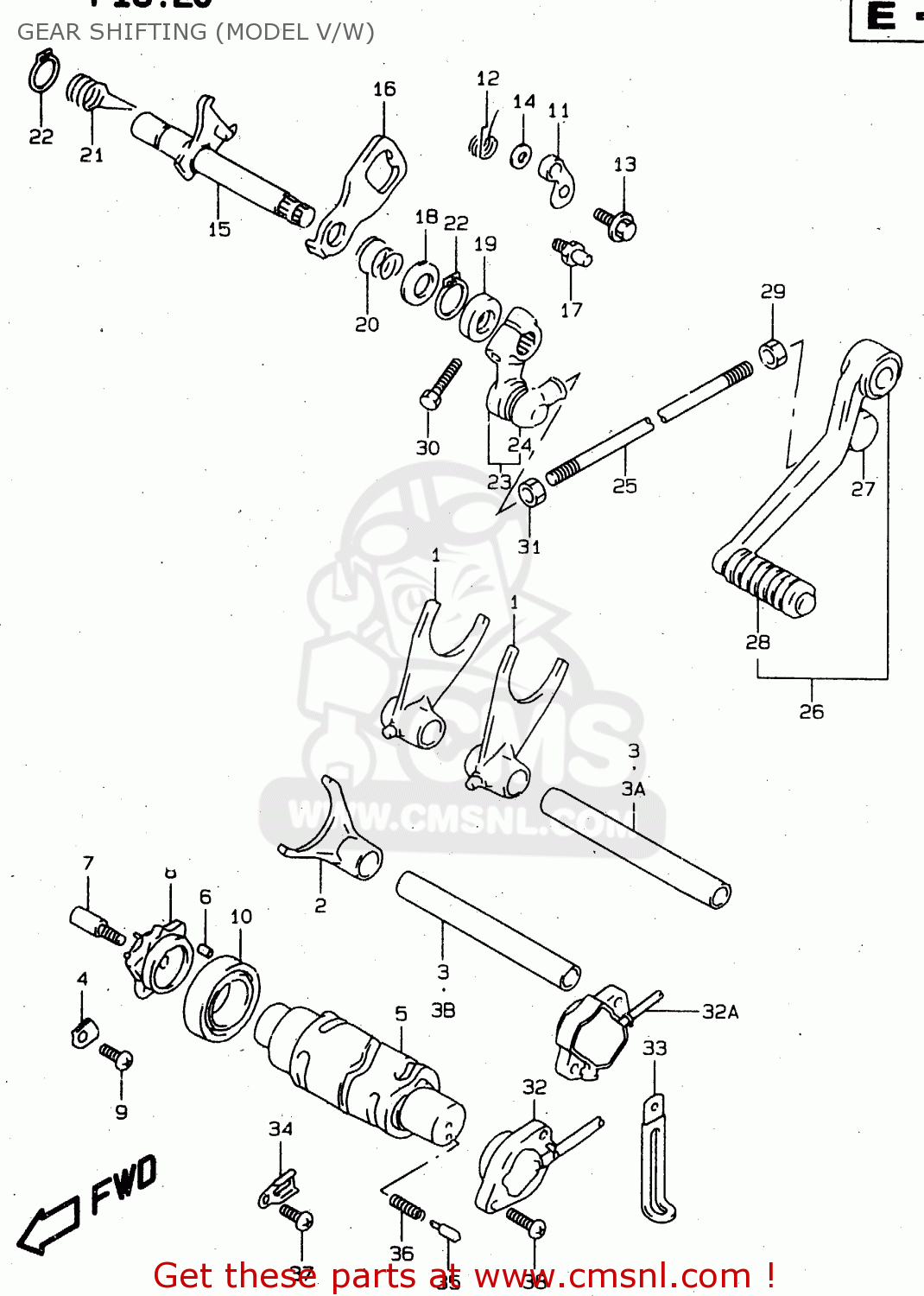

Gear shifting (model v/w) diagram TL1000S 2000 (Y)
GEAR SHIFTING (MODEL V/W) TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
2521117E01
ref: 1
<-25211-17E00
FORK,GEAR SHIFT
€ 64.50
2
2523117E00
ref: 2
FORK,GEAR SHIFT NO.3
€ 108.50
3
2541138A00
ref: 3
MODEL V
SHAFT,GEAR SHIFT FORK(L:115)
€ 17.00
3A
2541102F00
ref: 3A
MODEL W
SHAFT,GEAR SHIFT FORK
€ 18.00
3B
2541102F10
ref: 3B
MODEL W
SHAFT,GEAR SHIFT FORK NO.2
€ 15.00
4
2474121A00
ref: 4
RETAINER
€ 2.00
5
2531002F01
ref: 5
CAM,GEAR SHIFT
€ 198.00
6
0422104089
ref: 6
PIN
€ 1.50
7
2531212C00
ref: 7
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
8
2538113E10
ref: 8
PLATE,GEAR SHIFT CAM
€ 40.00
9
0211206123
ref: 9
SCREW
€ 1.50
10
0811369050
ref: 10
BEARING
€ 36.00
11
2535026D01
ref: 11
STOPPER,GEAR SHIFT CAM
€ 8.50
12
2535513E00
ref: 12
SPRING,SHIFT CAM STOPPER
€ 4.00
13
0911106041
ref: 13
BOLT(6X14.3)
€ 3.00
14
0821106141
ref: 14
WASHER
€ 2.50
15
2551002F01
ref: 15
SHAFT,GEAR SHIFT
€ 69.50
16
2551213E11
ref: 16
PLATE,GEAR SHIFT CAM DRIVE
€ 18.00
17
2567101000
ref: 17
STOPPER,GEAR SHIFT CAM
€ 3.00
18
0918114167
ref: 18
14X22X1.0
SHIM(14X22X1)
€ 3.50
19
0928314006
ref: 19
14X22X6.0
SEAL,OIL(14X22X6)
€ 6.50
20
0944017009
ref: 20
SPRING
€ 1.50
21
0944420001
ref: 21
SPRING
€ 5.00
22
0833131146
ref: 22
CIRCLIP
€ 2.00
23
2552019C02
ref: 23
ARM,GEAR SHIFT LINK
€ 53.50
24
2552647000
ref: 24
COVER,DUST
€ 3.50
25
2552532C10
ref: 25
ROD,GEAR SHIFT LINK
€ 15.50
26
2560033E00
ref: 26
LEVER ASSY,GEAR SHIFT
€ 106.00
27
2552647000
ref: 27
COVER,DUST
€ 3.50
28
2565220C00
ref: 28
RUBBER,GEAR SHIFT PEDAL
€ 8.00
29
0914006011
ref: 29
NUT
€ 1.50
30
0150006253
ref: 30
BOLT
€ 2.50
31
0831000067
ref: 31
NUT
€ 2.50
32
3773002F00
ref: 32
MODEL V
BASE ASSEMBLY,GEAR SHIFT TERMINAL
€ 73.00
32A
3773002F10
ref: 32A
MODEL W
BASE ASSY,GEAR SHIFT TERMINAL
€ 130.00
33
0940406432
ref: 33
<-09404-06429
CLAMP(L:65)
€ 2.50
34
3149745000
ref: 34
CLAMP,GENERATOR LEAD WIRE
€ 1.50
35
0920905011
ref: 35
PIN(5X15.5)
€ 2.00
36
0944004010
ref: 36
SPRING
€ 1.50
37
0211205103
ref: 37
SCREW
€ 2.00
38
0211205163
ref: 38
SCREW
€ 2.00
