FUEL TANK (MODEL X)
TL1000S 2000 (Y)

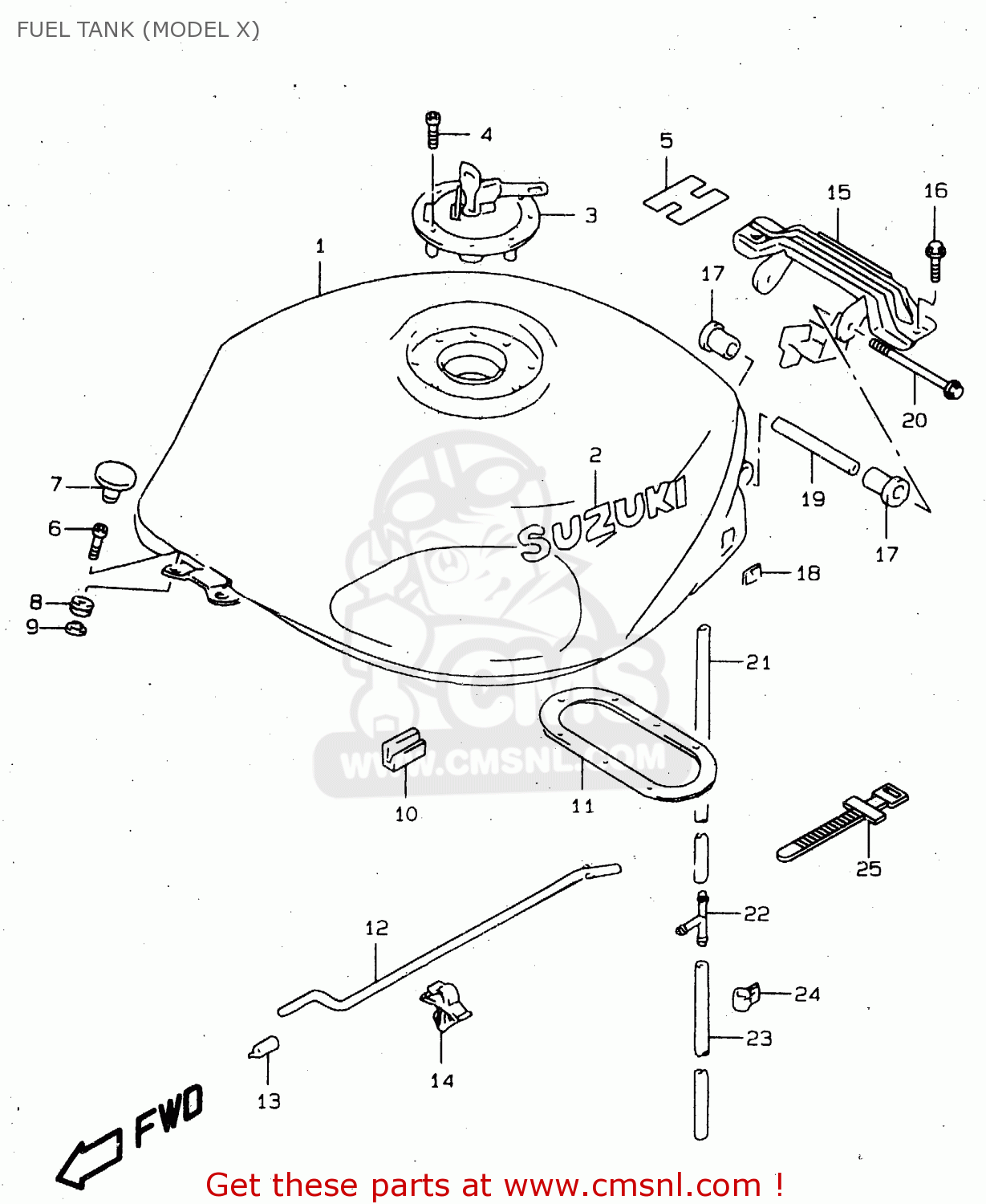

Fuel tank (model x) diagram TL1000S 2000 (Y)
FUEL TANK (MODEL X) TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
4410002F002AX
ref: 1
TANK ASSEMBLY,FUEL
€ 489.50
1
4410002F00Y0W
ref: 1
TANK ASSEMBLY,FUEL
€ 476.00
1
4410002F00Y2D
ref: 1
TANK ASSEMBLY,FUEL
€ 778.50
1
4410002F00Y7H
ref: 1
TANK ASSEMBLY,FUEL
€ 1,122.00
2
6811112C0017U
ref: 2
FOR 2AX
EMBLEM,FUEL TANK
€ 15.50
2
6811112C0020G
ref: 2
FOR Y0W, Y2D
EMBLEM,FUEL TANK
€ 19.50
2
6811112C001ZY
ref: 2
FOR Y7H
EMBLEM,FUEL TANK
€ 12.50
3
4420033870
ref: 3
CAP SET,FUEL TANK
€ 253.50
4
0910605017
ref: 4
BOLT(5X20)
€ 3.00
5
4426102F00
ref: 5
LABEL,FUEL TANK INNER
€ 4.00
6
0713006653
ref: 6
BOLT
€ 4.00
7
4451402F00
ref: 7
CAP,BOLT
€ 4.00
8
0932009009
ref: 8
CUSHION
€ 5.00
9
0916906062
ref: 9
WASHER
€ 3.00
10
4454133E00
ref: 10
CUSHION,FUEL TANK SIDE
€ 20.50
11
4459602F01
ref: 11
GASKET,FUEL PUMP (NAS)
€ 38.00
12
4457433E01
ref: 12
STAY,FUEL TANK
€ 13.50
13
0925105006
ref: 13
CAP,OD:11
€ 5.50
14
0940305310
ref: 14
CLAMP
€ 4.50
15
4455002F00
ref: 15
BRACKET,FUEL TANK,REAR
€ 27.00
16
0910608140
ref: 16
BOLT(8X16)
€ 6.00
17
4454102F00
ref: 17
CUSHION,FUEL TANK RR
€ 27.50
18
4457202F00
ref: 18
FASTENER,FUEL TANK
€ 8.50
19
4456133E10
ref: 19
SPACER,FUEL TANK RR
€ 19.00
20
0155008953
ref: 20
BOLT
€ 3.50
21
4442302F01
ref: 21
HOSE,FUEL TANK DRAIN
€ 12.00
22
0936708005
ref: 22
3 WAY
€ 4.00
23
0935270103600
ref: 23
HOSE(7X10.2X600)
€ 8.00
24
0940314408
ref: 24
CLAMP
€ 6.00
25
0940714403
ref: 25
MODEL W
CLAMP(L:125)
€ 2.50
