prices are in EUR

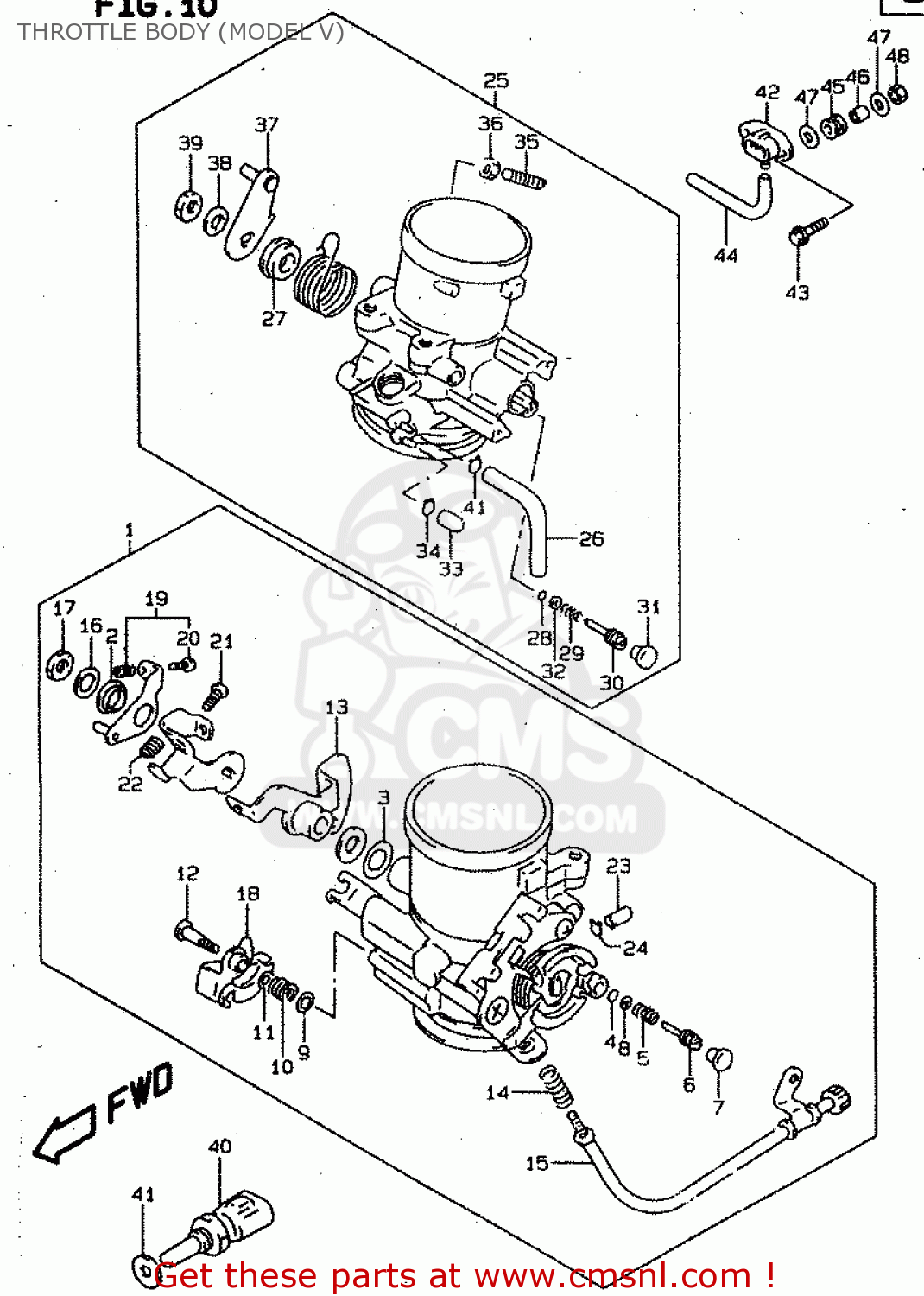

ref
part #
description
quantity
1
BODY ASSY, THROTTLE FRONT
1
BODY ASSY, THROTTLE FRONT
2
RING
4
O RING,PILOT AIR SCREW
5
SPRING
6
SCREW,AIR
7
PLUG
8
WASHER
10
SPRING
14
SPRING
15
ADJUSTER ASSY
16
WASHER
20
SCREW
22
SPRING
23
CAP
24
CLIP
25
BODY ASSEMBLY,THROTTLE,REAR
25
BODY ASSY, THROTTLE REAR
25
BODY ASSY, THROTTLE REAR
28
O RING,PILOT AIR SCREW
29
SPRING
30
SCREW,AIR
31
PLUG
32
WASHER
33
CAP
34
CLIP
36
NUT
38
WASHER
40
SENSOR,WATER TEMP
41
GASKET(12.2X21X0.8) (NAS)
42
SENSOR,MAP
43
BOLT
44
HOSE(4X8X600)
45
CUSHION
46
SPACER(6.5X10X10)
47
WASHER(6.5X20X1.2)
48
NUT
