OIL COOLER
TL1000S 2000 (Y)

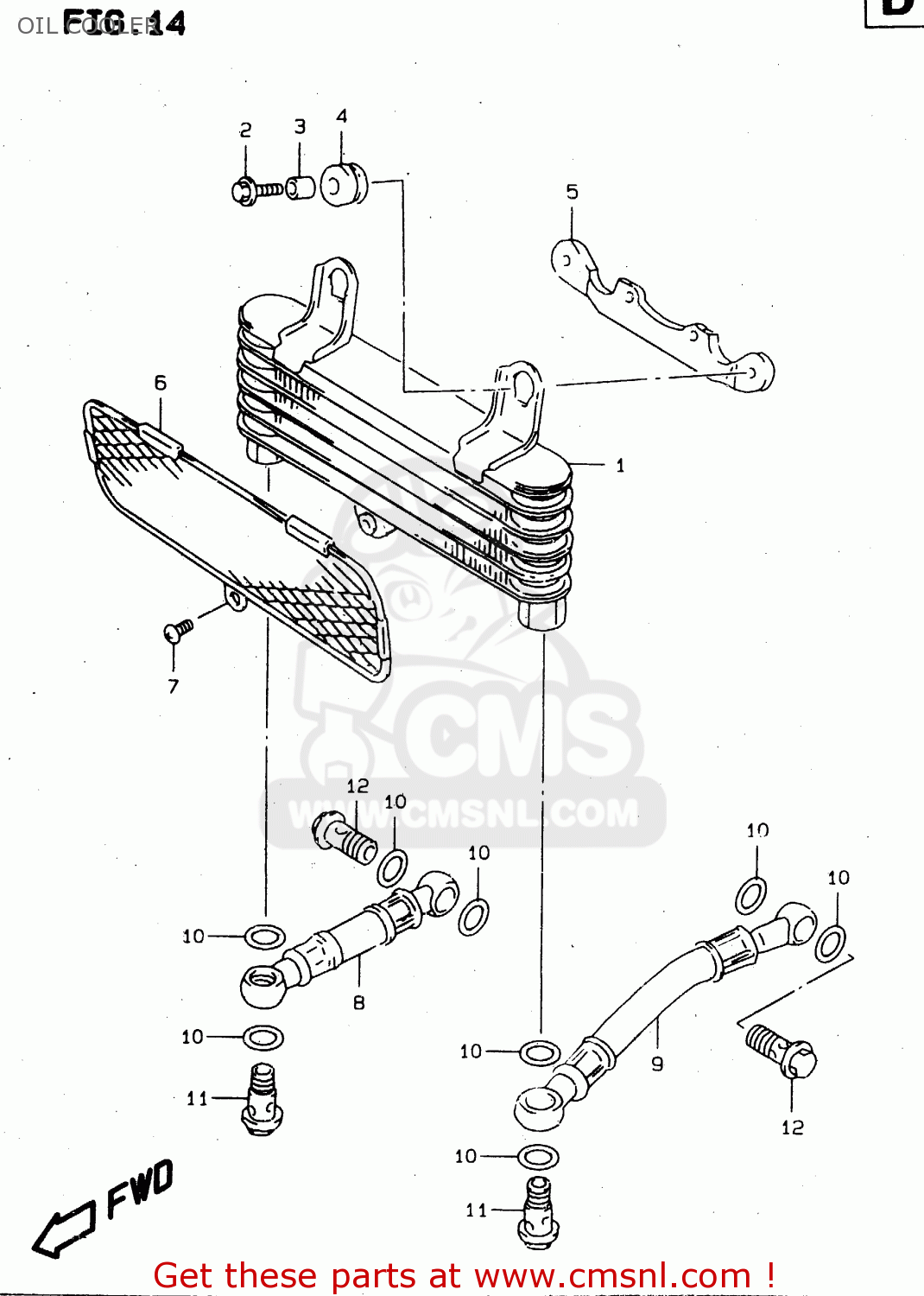

Oil cooler diagram TL1000S 2000 (Y)
OIL COOLER TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
1660002F00
ref: 1
COOLER ASSEMBLY,OIL
€ 938.00
2
0911606143
ref: 2
BOLT 6X20
€ 2.00
3
0918006310
ref: 3
SPACER(6.5X10X10)
€ 2.00
4
0932010015
ref: 4
CUSHION
€ 2.50
5
1662002F00
ref: 5
BRACKET,OIL COOLER
€ 10.50
6
1665002F00
ref: 6
GUARD,OIL COOLER
€ 38.50
7
0214205103
ref: 7
SCREW
€ 2.50
8
1646002F00
ref: 8
HOSE,OIL COOLER,R
€ 106.00
9
1647002F00
ref: 9
HOSE COMP,OIL COOLER,LEFT
€ 100.00
10
0916814011
ref: 10
GASKET(14X20X1.5) (NAS)
€ 2.00
11
0936012006
ref: 11
BOLT UNION
€ 13.50
12
0936014012
ref: 12
BOLT UNION
€ 10.00
