REAR SWINGING ARM (MODEL W/X E18, E22, E24)
TL1000S 2000 (Y)

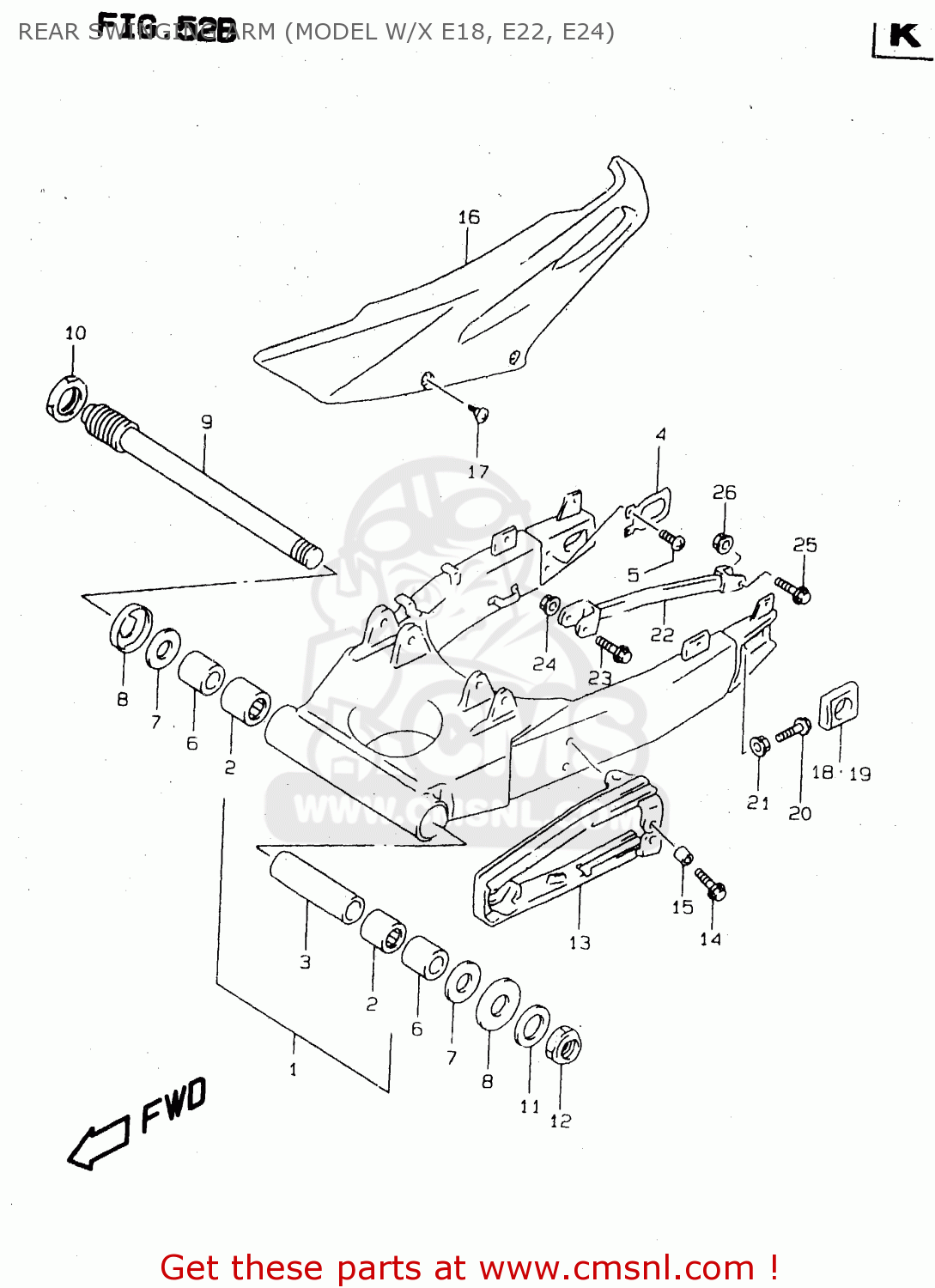

Rear swinging arm (model w/x e18, e22, e24) diagram TL1000S 2000 (Y)
REAR SWINGING ARM (MODEL W/X E18, E22, E24) TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
6100002F00
ref: 1
SWINGINGARM ASSY,RR
€ 1,466.00
2
0926330040
ref: 2
BEARING(30X40X25)
€ 31.50
3
6128033E00
ref: 3
MODEL W, ->61281-33E
SPACER COMP,REAR SWING PIVOT
€ 26.00
3
6128133E10
ref: 3
MODEL X
SPACER,REAR SWING PIVOT,CENTER
€ 26.00
4
6112433E00
ref: 4
PLATE,RR SWING ARM BRKT
€ 3.50
5
0214206103
ref: 5
SCREW 6X10
€ 2.00
6
6125117E10
ref: 6
SPACER,REAR SWING ARM PIVOT
€ 7.00
7
0821125481
ref: 7
WASHER
€ 5.50
8
6126217E10
ref: 8
DUST SEAL,RR SWGARM PIVOT
€ 6.50
9
6121133E00
ref: 9
SHAFT,RR SWINGINGARM PIVOT
€ 100.00
10
6121440C30
ref: 10
NUT,REAR SWING ARM PIVOT
€ 16.50
11
0916025070
ref: 11
WASHER(25.2X42X3.2)
€ 4.50
12
0915925001
ref: 12
NUT
€ 29.00
13
6127302F00
ref: 13
BUFFER,CHAIN TOUCH DEFENSE
€ 32.50
14
0911606111
ref: 14
BOLT 6X20,WITH PLAIN WASHER
€ 2.00
15
0918006306
ref: 15
SPACER(6.5X9X5)
€ 2.00
16
6131102F00
ref: 16
CASE, CHAIN
€ 58.50
17
0912266004
ref: 17
SCREW (6X14)
€ 2.00
18
6144533E00
ref: 18
ADJUSTER,CHAIN,R
€ 42.00
19
6144633E10
ref: 19
ADJUSTER,CHAIN,L
€ 42.50
20
0910008287
ref: 20
BOLT(8X50)
€ 3.00
21
0831610083
ref: 21
NUT
€ 3.00
22
6431033E00
ref: 22
TORQUELINK,RR
€ 82.00
23
0911108083
ref: 23
BOLT(8X44)
€ 6.00
24
0831931087
ref: 24
NUT
€ 2.50
25
0910310019
ref: 25
BOLT(10X37)
€ 2.50
26
0831931107
ref: 26
NUT
€ 3.00
