OIL PUMP / FUEL PUMP
TL1000S 2000 (Y)

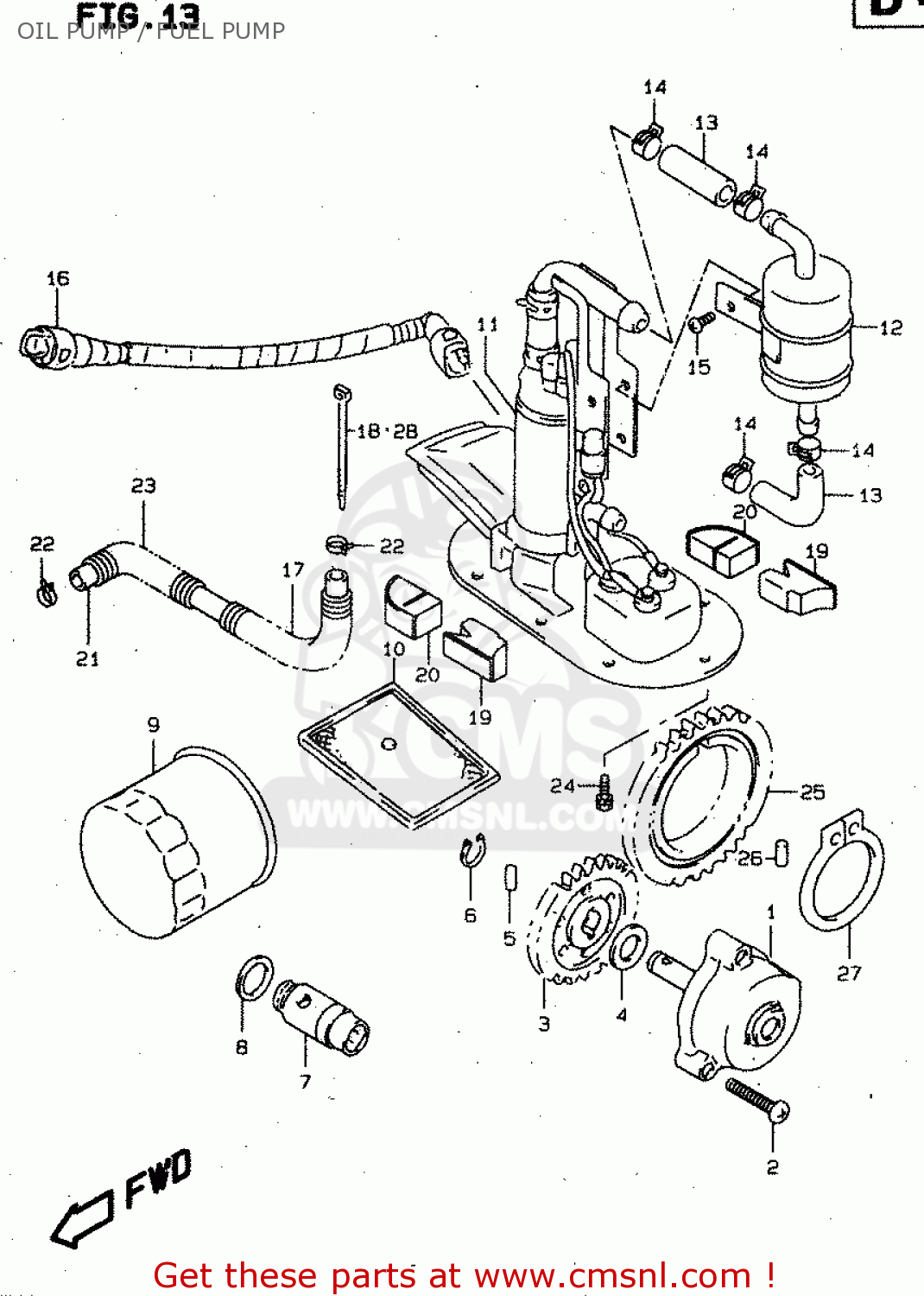

Oil pump / fuel pump diagram TL1000S 2000 (Y)
OIL PUMP / FUEL PUMP TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
1640002F00
ref: 1
MODEL V
PUMP ASSEMBLY,ENGINE OIL
€ 135.50
1
1640002FA0
ref: 1
MODEL W/X
PUMP ASSEMBLY,ENGINE OIL
€ 135.50
2
0211206253
ref: 2
SCREW
€ 1.50
3
1633102F00
ref: 3
GEAR,OIL PUMP DRIVEN
€ 35.50
4
0918110158
ref: 4
SHIM(10X18X0.5)
€ 2.50
5
0926104009
ref: 5
PIN(4X15.8)
€ 1.50
6
0833131106
ref: 6
CIRCLIP,10MM
€ 2.00
7
1644033E00
ref: 7
VALVE ASSY,OIL RELIEF
€ 51.50
8
0916816002
ref: 8
GASKET(16X22X2) (NAS)
€ 2.00
9
1651034E00
ref: 9
FILTER ASSEMBLY,ENGINE OIL
€ 12.50
10
1652032E00
ref: 10
STRAINER,ENGINE OIL
€ 11.50
11
1510002F00
ref: 11
PUMP ASSY,FUEL
€ 1,022.50
12
1541002F10
ref: 12
FILTER,FUEL
€ 52.00
13
0935676145600
ref: 13
HOSE(7.6X14X600)
€ 30.50
14
0940113410
ref: 14
CLIP
€ 3.00
15
0211234063
ref: 15
SCREW
€ 1.50
16
1581002F00
ref: 16
HOSE,FUEL
€ 61.00
17
1581902F00
ref: 17
PROTECTOR,FUEL RETURN NO,2
€ 5.00
18
0940708401
ref: 18
CLAMP(L:80)
€ 2.50
19
1511102F00
ref: 19
SPACER
€ 9.50
20
1511202F00
ref: 20
SPACER,FUEL PUMP NO.2
€ 9.50
21
0935554115600
ref: 21
L:600->360
HOSE(5.4X11.4X600)
€ 20.00
22
0940111411
ref: 22
CLIP
€ 4.50
23
0944013037
ref: 23
(CA) SPRING
€ 10.00
24
0157005103
ref: 24
BOLT
€ 2.00
25
1632102F00
ref: 25
GEAR,ENG OIL PUMP DRIVE
€ 39.00
26
0926106002
ref: 26
PIN(6X6)
€ 1.50
27
0833131506
ref: 27
CIRCLIP
€ 4.50
28
0940714403
ref: 28
CLAMP(L:125)
€ 2.50
