SEAT

TL1000S 2000 (Y)

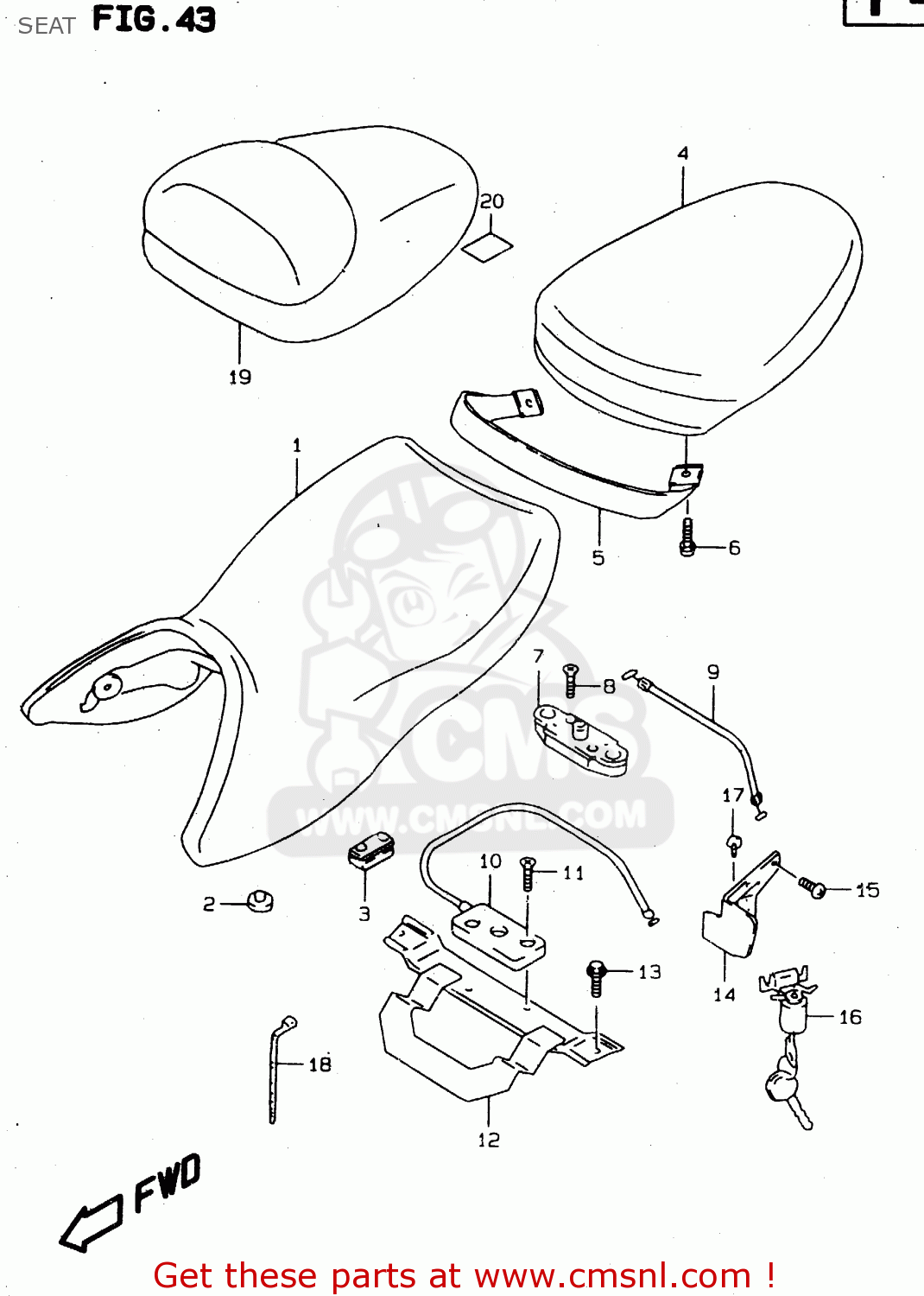

Seat diagram TL1000S 2000 (Y)

SEAT TL1000S 2000 (Y)

SEAT TL1000S 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

4510002F10R42
ref: 1

SEAT ASSY(BLACK)

€ 303.50

2

4514836C00
ref: 2

CUSHION,SEAT

€ 4.00

2

0932110002
ref: 2

CUSHION(11.5X22X20)

€ 2.50

3

4514931300
ref: 3

CUSHION,SEAT(40X20X15)

€ 2.00

4

4530002F10R42
ref: 4

SEAT ASSY,PILLION(BLACK)

€ 197.50

5

4518002F00R42
ref: 5

BAND ASSY,PILLION SEAT(BLACK)

€ 38.50

6

0155006207
ref: 6

BOLT

€ 2.50

7

4522020A01
ref: 7

BRACKET,SEAT SUPPORT,RIGHT

€ 79.50

8

0212206303
ref: 8

SCREW

€ 2.00

9

4528038400
ref: 9

CABLE,SEAT LOCK

€ 10.00

10

4522002F00
ref: 10

BRACKET,SEAT SUPPORT FR

€ 23.50

11

0212206253
ref: 11

SCREW

€ 2.00

12

4512002F00
ref: 12

BRACKET,SEAT LOCK

€ 19.00

13

0155006163
ref: 13

BOLT

€ 2.50

14

4528902F00
ref: 14

BRACKET,SEAT LOCK KEY CYLINDER

€ 10.00

15

0214206123
ref: 15

SCREW 6X12

€ 2.00

16

9570002820
ref: 16

LOCK SET,SEAT

€ 79.50

17

0214205103
ref: 17

SCREW

€ 2.50

18

0940714403
ref: 18

CLAMP(L:125)

€ 2.50

19

4555002F001UH
ref: 19
MODEL V

BOX,SEAT TAIL(GREEN)

€ 194.50

19

4555002F0028V
ref: 19
MODEL V/W

BOX,SEAT TAIL(RED)

€ 194.50

19

4555002F0033J
ref: 19
MODEL V/W/X

BOX,SEAT TAIL(BLACK)

€ 182.50

19

4555002F00Y2D
ref: 19
MODEL W/X

BOX COMP,SEAT TAIL

€ 180.50

19

4555002F00Y3G
ref: 19
MODEL W

BOX COMP,SEAT TAIL

€ 114.00

19

4555002F00Y0W
ref: 19
MODEL X

BOX COMP,SEAT TAIL

€ 180.50

19

4555002F00Y7H
ref: 19
MODEL X

BOX COMP,SEAT TAIL

€ 180.50

20

4555933E00
ref: 20

PROTECTOR SET,SEAT TAIL BOX

€ 10.00
