STEERING DAMPER (MODEL V)
TL1000S 2000 (Y)

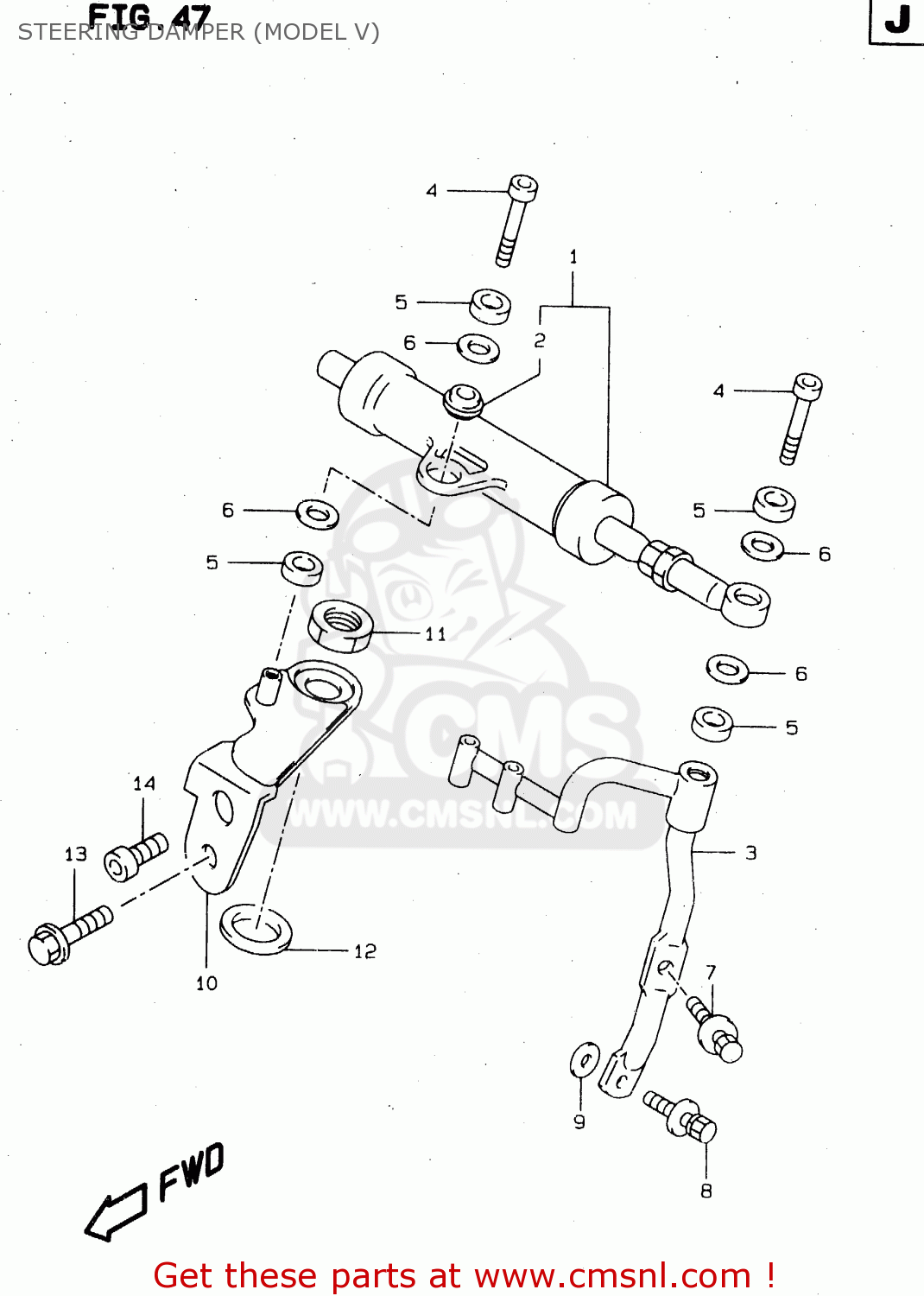

Steering damper (model v) diagram TL1000S 2000 (Y)
STEERING DAMPER (MODEL V) TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
5175002F10
ref: 1
DAMPER ASSY, STEERING
€ 684.00
2
0926908003
ref: 2
BEARING(8X17.5X11)
€ 39.50
3
5171002F00
ref: 3
->51700-02810
STAY,STEERING DAMPER
€ 75.50
4
0910608071
ref: 4
BOLT(8X35)
€ 5.50
5
6433940410
ref: 5
6433940410
6
0918108106
ref: 6
SHIM(8X12X0.8)
€ 3.00
7
0911606171
ref: 7
BOLT(6X30)
€ 2.50
8
5173502F00
ref: 8
BOLT,STAY,LOWER 6X35
€ 4.50
9
0916006088
ref: 9
WASHER(6.5X20X1.6)
€ 2.00
10
5172002F00
ref: 10
->51700-02820
PLATE,STEERING DAMPER
€ 265.00
11
5135302F10
ref: 11
NUT,STEM TOP
€ 24.50
12
5172302F00
ref: 12
WASHER,STEERING DAMPER
€ 4.50
13
0155008127
ref: 13
BOLT
€ 3.50
14
5132803FA0
ref: 14
BOLT(8X32)
€ 3.00
