RADIATOR HOSE
TL1000S 2000 (Y)

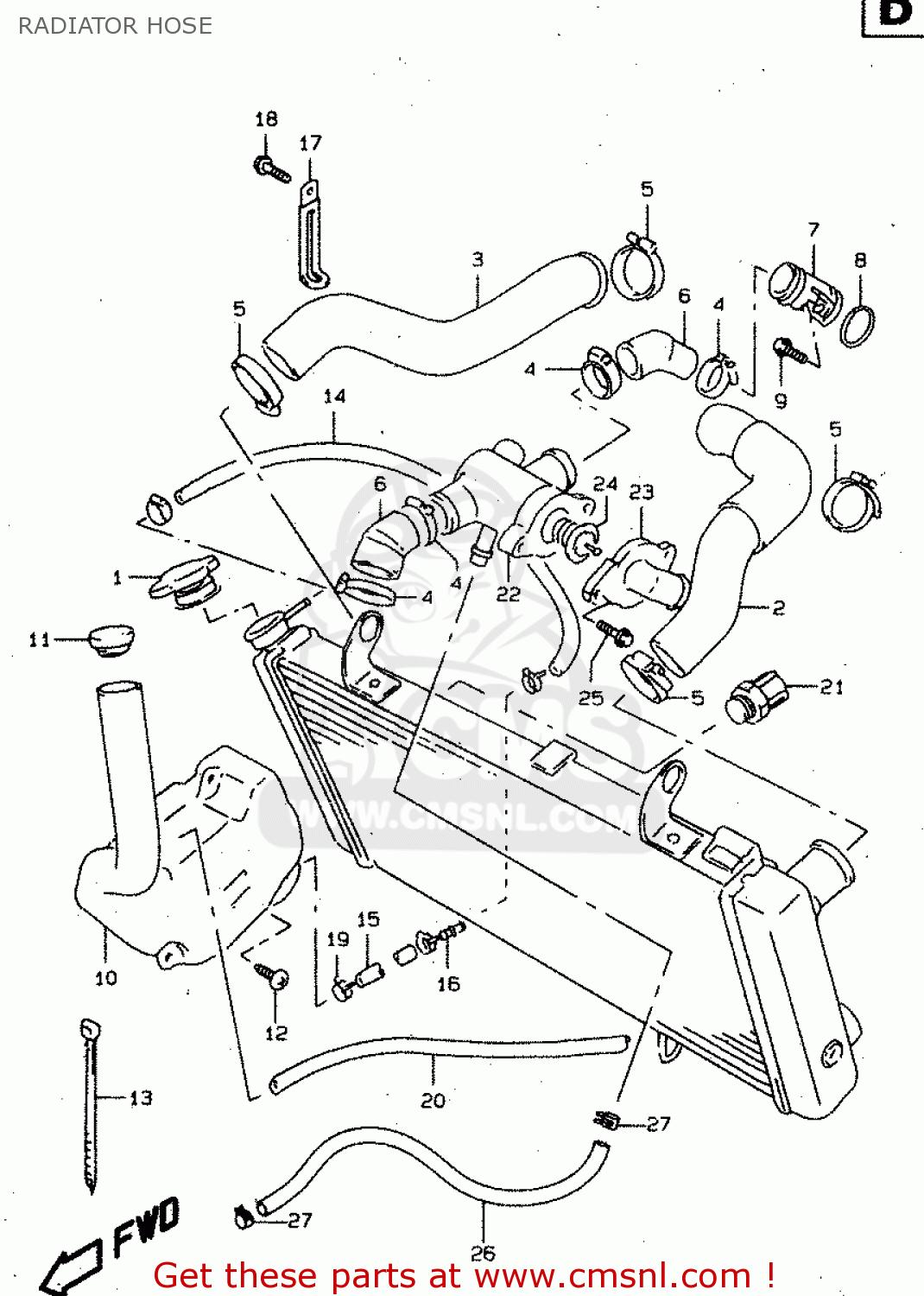

Radiator hose diagram TL1000S 2000 (Y)
RADIATOR HOSE TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
1773012C01
ref: 1
CAP,RADIATOR
€ 40.00
2
1785102F00
ref: 2
HOSE,RADIATOR INLET
€ 26.50
3
1785202F00
ref: 3
MODEL V
HOSE,RADIATOR OUTLET
€ 18.00
3
1785202F10
ref: 3
MODEL W/X
HOSE,RADIATOR OUTLET
€ 17.00
4
0940228511
ref: 4
CLAMP
€ 8.50
5
0940238511
ref: 5
CLAMP
€ 10.50
6
1785302F00
ref: 6
HOSE,CONNECTOR INLET
€ 11.50
7
1789002F00
ref: 7
MODEL V
UNION,CONNECTOR HOSE
€ 9.50
7
1789002F00
ref: 7
MODEL W/X
UNION,CONNECTOR HOSE
€ 9.50
7
1789002F10
ref: 7
MODEL W/X
UNION,CONNECTOR HOSE F
€ 18.00
8
0928018009
ref: 8
O RING(D:3.2,ID:17.8)
€ 8.00
9
0155006163
ref: 9
MODEL V
BOLT
€ 2.50
9
0713006123
ref: 9
MODEL W/X
BOLT,STRANGER
€ 2.50
10
1791002F00
ref: 10
TANK ASSY,RESERVOIR
€ 59.50
11
1793212C00
ref: 11
CAP,RESERVOIR TANK
€ 3.50
12
0913605034
ref: 12
SCREW(5X16)
€ 2.00
13
0940717401
ref: 13
CLAMP
€ 5.00
14
0935250901600
ref: 14
L:600->270
HOSE(5X9X600)
€ 6.50
15
0935250901600
ref: 15
L:600->180
HOSE(5X9X600)
€ 6.50
16
0936406005
ref: 16
UNION
€ 4.00
17
0940406432
ref: 17
CLAMP(L:65)
€ 2.50
18
0354105083
ref: 18
SCREW 5X8
€ 2.00
19
0940108411
ref: 19
CLIP
€ 3.00
20
0935250901600
ref: 20
MODEL V, L:600->560
HOSE(5X9X600)
€ 6.50
20
093525090100B
ref: 20
MODEL W/X, L:2000->6
HOSE(5X9X2000)
€ 19.50
21
1768033E00
ref: 21
SWITCH,RADIATOR FAN
€ 49.50
22
1766202F00
ref: 22
MODEL V
CONNECTOR,THERMOSTAT,INLET
€ 36.00
22
1766202F10
ref: 22
MODEL W/X
CONNECTOR,THERMOSTAT,INLET
€ 40.00
23
1766342E00
ref: 23
CAP,THERMOSTAT CONNECTOR
€ 34.00
24
1767012C00
ref: 24
MODEL V
THERMOSTAT,WATER
€ 37.50
24
1767050F00
ref: 24
MODEL W/X
THERMOSTAT,WATER 82 DEG
€ 24.00
24
1767032C20
ref: 24
MODEL V OPT
THERMOSTAT,WATER
€ 41.00
25
0155006163
ref: 25
BOLT
€ 2.50
26
1785602F10
ref: 26
MODEL W/X
HOSE,CONNECTOR TO WATER
€ 15.00
27
0940112409
ref: 27
MODEL W/X
CLAMP
€ 3.00
