TL1000S 2000 (Y)

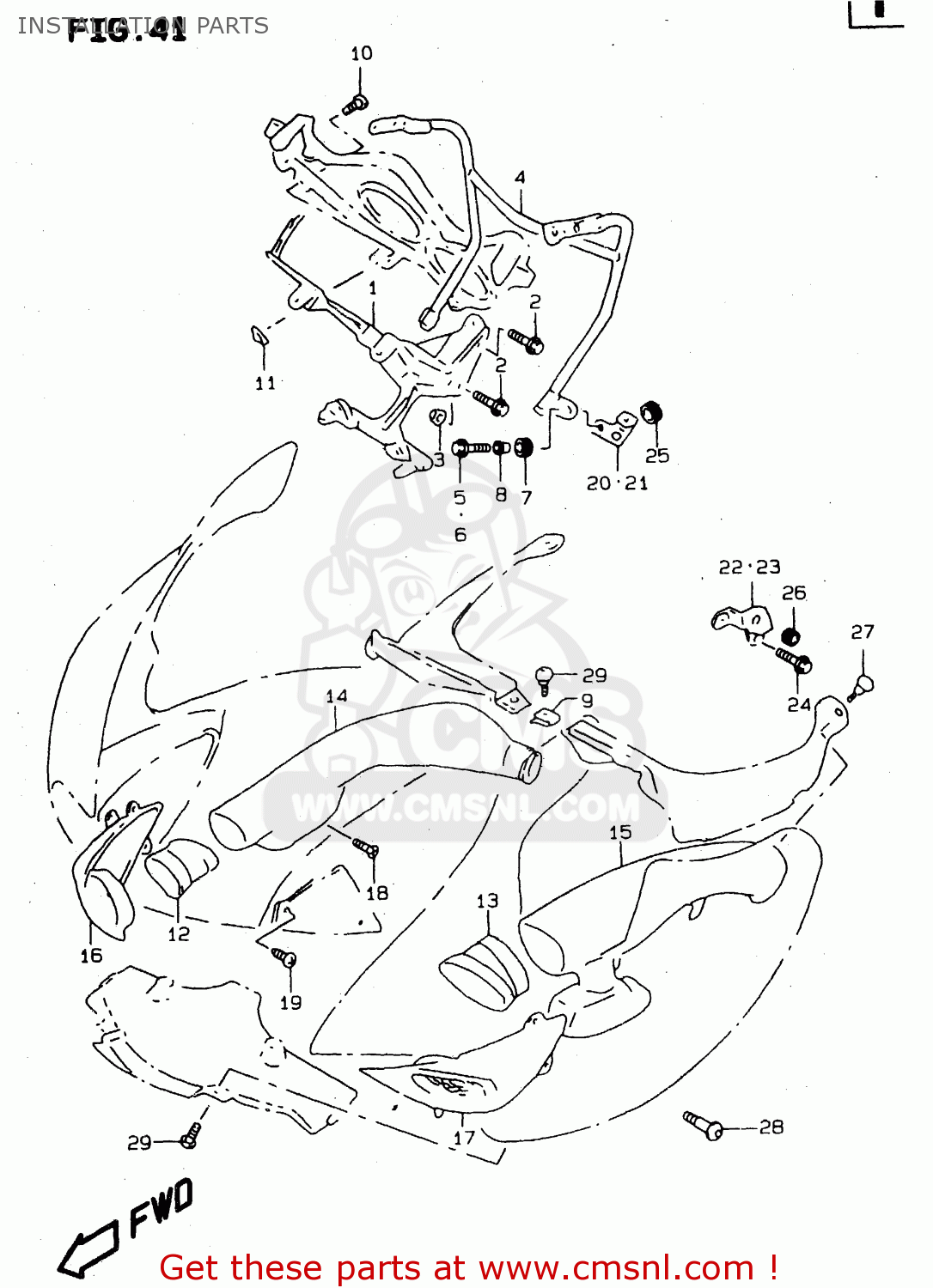

Installation parts diagram TL1000S 2000 (Y)
INSTALLATION PARTS TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
9451002F00
ref: 1
MODEL V
BRACE COMP,COWLING
€ 412.50
1
9451002F01
ref: 1
MODEL W/X
BRACE,COWLING
€ 412.50
2
0155008303
ref: 2
BOLT
€ 3.00
3
0831320083
ref: 3
NUT
€ 2.50
4
9452002F00
ref: 4
BRACE COMP,REAR VIEW MIRROR
€ 127.00
5
0911606143
ref: 5
BOLT 6X20
€ 2.00
6
0911606171
ref: 6
BOLT(6X30)
€ 2.50
7
0932009009
ref: 7
CUSHION
€ 5.00
8
9452946E00
ref: 8
WASHER,MIRROR BRACE,IN
€ 3.50
9
9448432B00
ref: 9
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
10
0324205163
ref: 10
SCREW
€ 1.50
11
0914805020
ref: 11
NUT
€ 2.00
12
9445302F00
ref: 12
JOINT,AIR INTAKE,R
€ 16.00
13
9445402F00
ref: 13
JOINT,AIR INTAKE,L
€ 16.00
14
9445102F00
ref: 14
PIPE,AIR INTAKE,R
€ 40.50
15
9445202F00
ref: 15
PIPE,AIR INTAKE,L
€ 52.00
16
9467002F00
ref: 16
COVER,INTAKE,R
€ 72.50
17
9468002F00
ref: 17
COVER,INTAKE,L
€ 67.00
18
0354105123
ref: 18
SCREW
€ 2.00
19
0354105123
ref: 19
SCREW
€ 2.00
20
9453102F00
ref: 20
BRACKET,SIDE COWLING UP,R
€ 9.00
21
9453202F00
ref: 21
BRACKET,SIDE COWLING UP,L
€ 8.00
22
9454002F00
ref: 22
BRACKET,SIDE COWLING RR,R
€ 7.50
23
9455002F00
ref: 23
BRACKET,SIDE COWLING RR,L
€ 6.50
24
0150006163
ref: 24
BOLT
€ 2.00
25
0932008018
ref: 25
CUSHION
€ 4.00
26
0932009016
ref: 26
CUSHION
€ 2.50
27
0913905055
ref: 27
SCREW(5X16)
€ 6.00
28
0913906087
ref: 28
SCREW(6X20)
€ 4.00
29
0913905054
ref: 29
SCREW(5X16)
€ 6.00
