STARTER CLUTCH

TL1000S 2000 (Y)

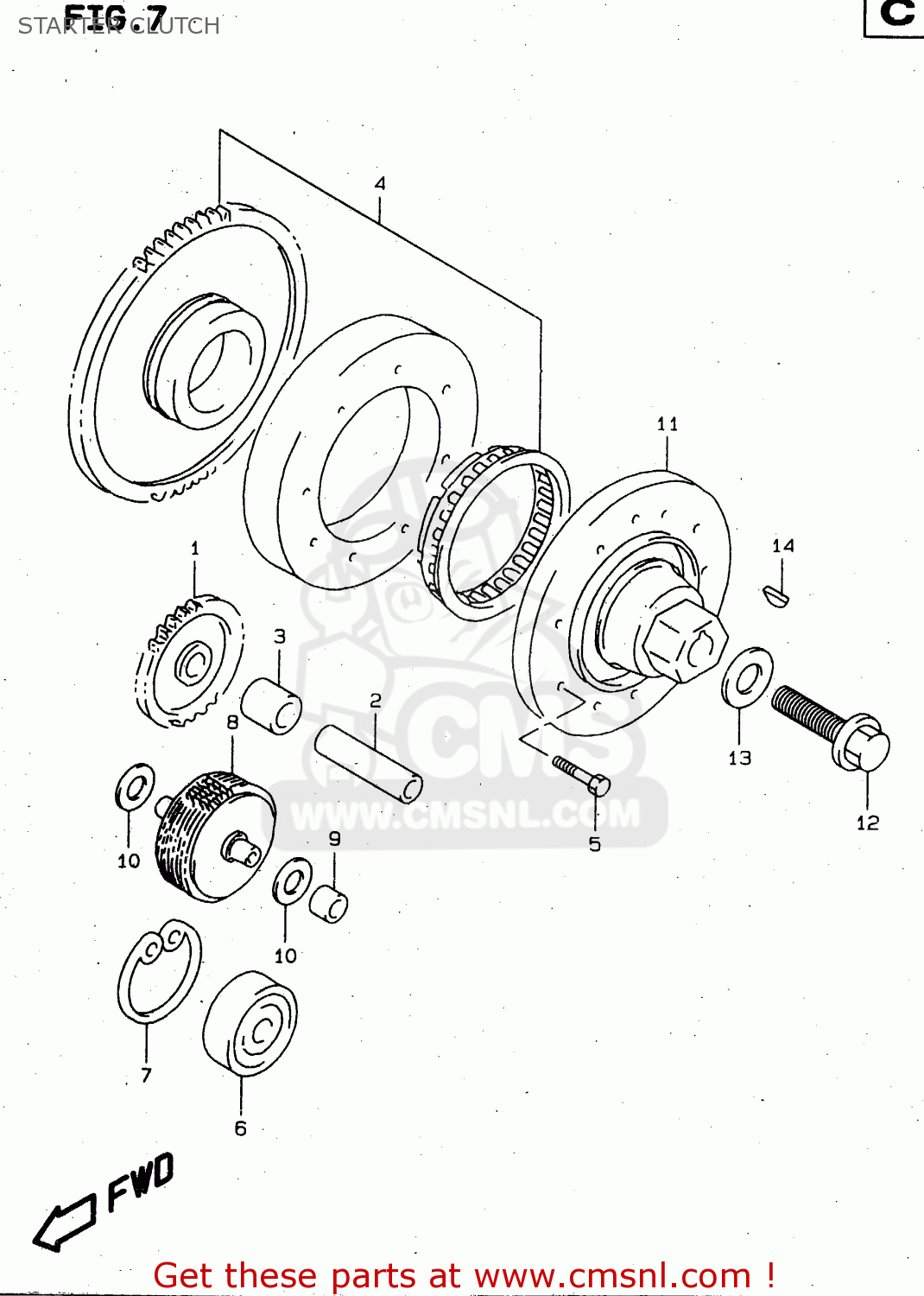

Starter clutch diagram TL1000S 2000 (Y)

STARTER CLUTCH TL1000S 2000 (Y)

STARTER CLUTCH TL1000S 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

1261202F00
ref: 1

GEAR,STARTER IDLE NO.2

€ 44.50

2

0920612002
ref: 2

PIN(7X12X50.5)

€ 9.00

3

0918012140
ref: 3

SPACER(12.5X19X17.5)

€ 5.50

4

1260002840
ref: 4
MODEL V/W

CLUTCH SET,STARTER

€ 345.00

4

1260002841
ref: 4
MODEL X

CLUTCH SET,STARTER

€ 345.00

5

0150006203
ref: 5

BOLT

€ 2.00

6

0926212001
ref: 6

BEARING(12X28X8)

€ 15.00

7

0833141286
ref: 7

CIRCLIP

€ 3.50

8

1260012D00
ref: 8

LIMITER ASSEMBLY,STARTER IDLER GEAR

€ 122.50

9

1261831D01
ref: 9

BUSH,LIMITER GEAR SHAFT

€ 17.50

10

0821110221
ref: 10

WASHER

€ 2.50

11

1264102F00
ref: 11
MODEL V

HOUSING,STARTER CLUTCH

€ 272.50

11

1264102F10
ref: 11
MODEL W/X

HOUSING,STARTER CLUTCH

€ 135.50

12

0910312004
ref: 12

BOLT(12X40)

€ 3.00

13

0916012036
ref: 13

WASHER(12X30X3)

€ 3.00

14

0942004008
ref: 14

KEY

€ 3.50

all assemblies
