FOOTREST
TL1000S 2000 (Y)

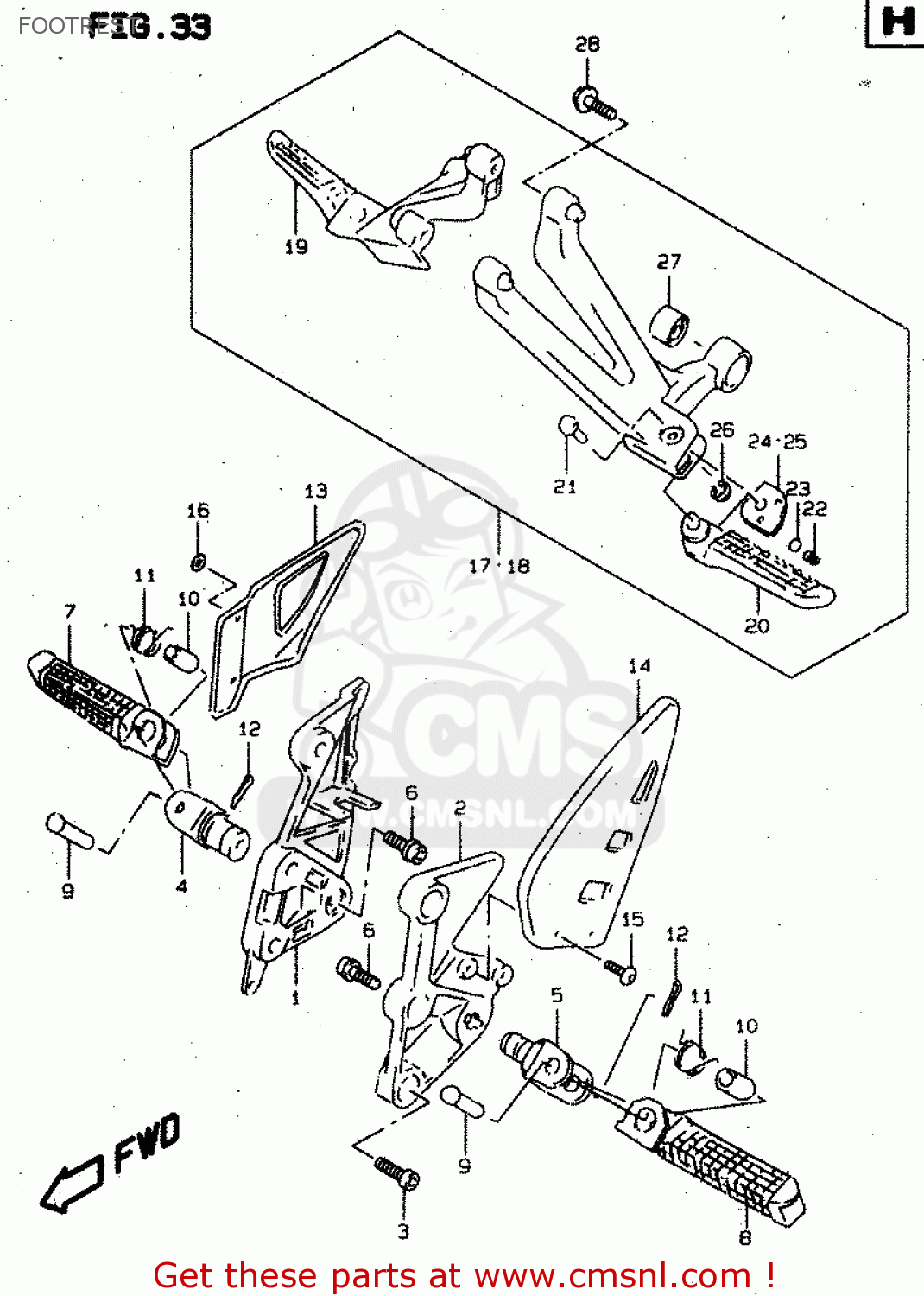

Footrest diagram TL1000S 2000 (Y)
FOOTREST TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
4351102F00
ref: 1
BRACKET,FR FOOTREST,R
€ 121.50
2
4352102F00
ref: 2
BRACKET,FR FOOTREST,L
€ 110.50
3
0713008207
ref: 3
MODEL V
BOLT
€ 3.00
3
0713008203
ref: 3
MODEL W/X
BOLT
€ 3.00
4
4353017E00
ref: 4
MODEL V
HOLDER,FOOTREST,RIGHT
€ 33.00
4
4353017E01
ref: 4
MODEL W/X
HOLDER,FOOTREST,R
€ 33.00
5
4354017E00
ref: 5
HOLDER,FOOTREST,L
€ 33.00
6
0910610064
ref: 6
BOLT(10X28)
€ 4.50
7
4351002F00
ref: 7
BAR,FRONT FOOTREST,RIGHT
€ 37.00
8
4352002F00
ref: 8
BAR,FRONT FOOTREST,LEFT
€ 37.00
9
0920008057
ref: 9
PIN
€ 3.00
10
0918008149
ref: 10
SPACER(8.1X12X22)
€ 7.00
11
0944818022
ref: 11
SPRING
€ 3.50
12
0411125158
ref: 12
PIN 20X15
€ 1.50
13
4357002F00
ref: 13
MODEL V
GUARD COMP,FRONT FOOTREST
€ 56.50
13
4357002F01
ref: 13
MODEL W/X
GUARD,FR FOOTREST,R
€ 56.50
14
4358002F00
ref: 14
MODEL V
GUARD COMP,FRONT FOOTREST
€ 58.00
14
4358002F01
ref: 14
MODEL W/X
GUARD,FR FOOTREST,L
€ 58.00
15
0913905033
ref: 15
SCREW(5X10)
€ 2.00
16
0916006129
ref: 16
WASHER(6.5X16X1)
€ 2.00
17
4360002F00
ref: 17
FOOTREST ASSY,PILLION,R
€ 150.00
18
4370002F00
ref: 18
FOOTREST ASSY,PILLION,L
€ 167.00
19
4361133E00
ref: 19
BAR,PILLION FOOTREST,RIGHT
€ 23.50
20
4362133E00
ref: 20
BAR,PILLION FOOTREST,LEFT
€ 23.50
21
8725985510
ref: 21
PIN
€ 4.50
22
0944005005
ref: 22
SPRING
€ 1.50
23
0611107004
ref: 23
BALL
€ 1.50
24
4381623E10
ref: 24
MODEL V
PLATE,PILLION FOOT,R
€ 4.50
24
4381633E20
ref: 24
MODEL W/X
PLATE,PILLION,RIGHT
€ 15.00
25
4382623E10
ref: 25
MODEL V
PLATE,PILLION FOOT,L
€ 4.50
25
4382633E20
ref: 25
MODEL W/X
PLATE,PILLION,LEFT
€ 15.00
26
0833211043
ref: 26
E-RING
€ 2.00
27
0931908028
ref: 27
BUSH
€ 17.00
28
0155008163
ref: 28
BOLT
€ 3.00
