FRAME COVER (MODEL X)
TL1000S 2000 (Y)

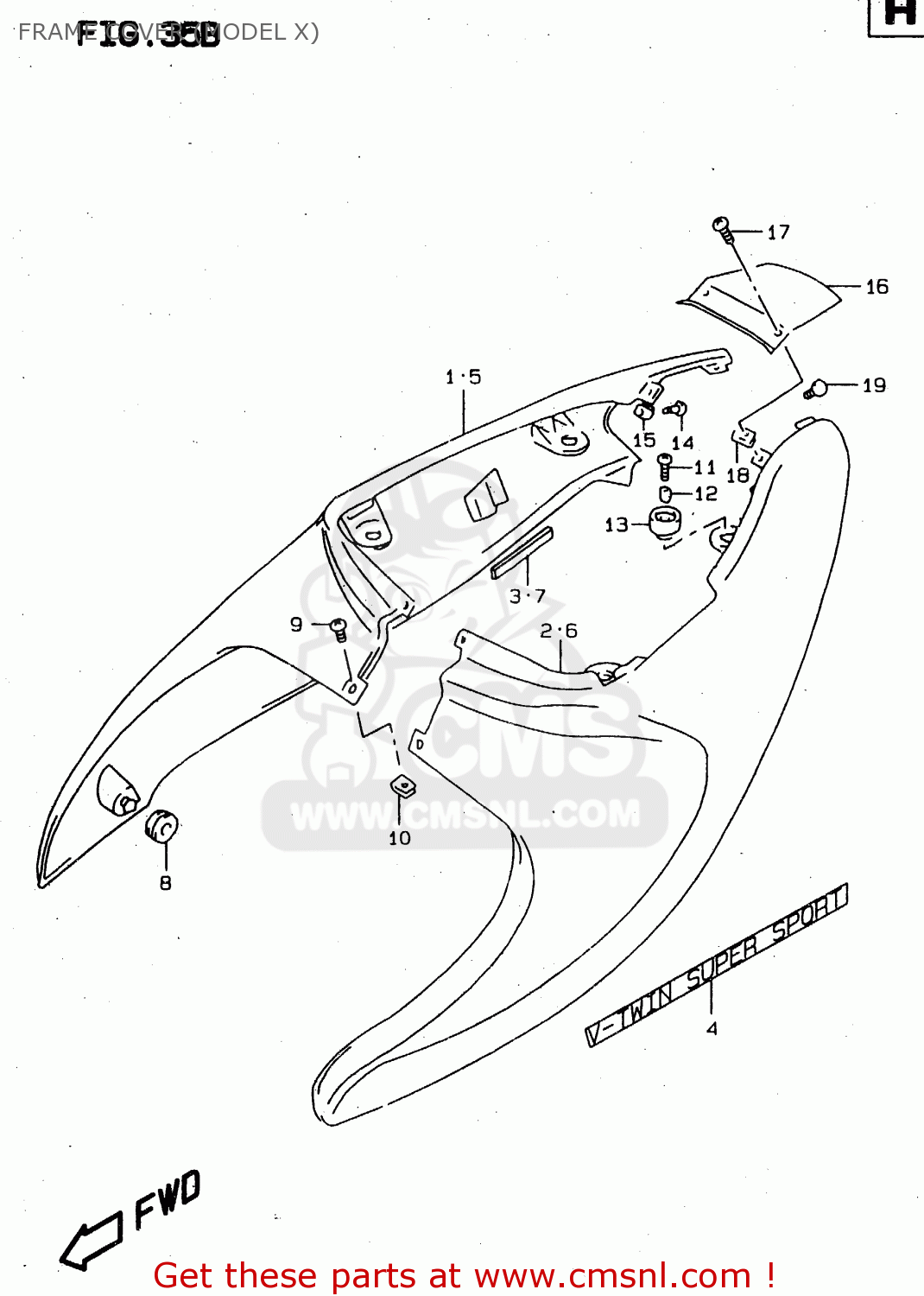

Frame cover (model x) diagram TL1000S 2000 (Y)
FRAME COVER (MODEL X) TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
4711002F2033J
ref: 1
COVER, FRAME RH (BLACK)
€ 137.50
1
4711002F20Y0W
ref: 1
COVER,FRAME,R(ORANGE)
€ 141.00
1
4711002F20Y2D
ref: 1
COVER,FRAME,R(SILVER)
€ 133.50
1
4711002F20Y7H
ref: 1
COVER,FRAME,R(BLUE)
€ 141.00
2
4721002F2033J
ref: 2
COVER,FRAME,L(BLACK)
€ 133.50
2
4721002F20Y0W
ref: 2
COVER,FRAME,L(ORANGE)
€ 141.00
2
4721002F20Y2D
ref: 2
COVER,FRAME,L(SILVER)
€ 141.00
2
4721002F20Y7H
ref: 2
COVER,FRAME,L(BLUE)
€ 141.00
3
4716102F00
ref: 3
CUSHION,FRAME COVER
€ 4.00
4
6813102F203CG
ref: 4
FOR 33J
EMBLEM,COVER
€ 10.00
4
6813102F20M1C
ref: 4
FOR Y0W
EMBLEM
€ 8.00
4
6813102F20M1D
ref: 4
FOR Y2D
EMBLEM,FRAME COVER
€ 8.00
4
6813102F20M1E
ref: 4
FOR Y7H
EMBLEM,COVER
€ 10.50
5
4711002F1033J
ref: 5
E24
COVER,FRAME,R(BLACK)
€ 0.00
5
4711002F10Y0W
ref: 5
E24
COVER,FRAME,R(ORANGE)
€ 0.00
5
4711002F10Y2D
ref: 5
E24
COVER COMP,FRAME,RIGHT
€ 0.00
5
4711002F10Y7H
ref: 5
E24
COVER COMP,FRAME,RIGHT
€ 0.00
6
4721002F1033J
ref: 6
E24
COVER,FRAME,L(BLACK)
€ 0.00
6
4721002F10Y0W
ref: 6
E24
COVER,FRAME,L(ORANGE)
€ 0.00
6
4721002F10Y2D
ref: 6
E24
COVER,FRAME,L(SILVER)
€ 0.00
6
4721002F10Y7H
ref: 6
E24
COVER,FRAME,L(BLUE)
€ 0.00
7
4716102F00
ref: 7
E24
CUSHION,FRAME COVER
€ 4.00
8
0932008018
ref: 8
CUSHION
€ 4.00
9
0324115123
ref: 9
SCREW
€ 2.50
10
0914805038
ref: 10
NUT
€ 2.50
11
0913606105
ref: 11
SCREW(6X20)
€ 2.00
12
0918006286
ref: 12
SPACER(6.5X10X9.4)
€ 2.50
13
0932010045
ref: 13
CUSHION
€ 3.50
14
0913605034
ref: 14
SCREW(5X16)
€ 2.00
15
0914805038
ref: 15
NUT
€ 2.50
16
4731102F0033J
ref: 16
COVER,FRAME CTR
€ 28.50
16
4731102F00Y0W
ref: 16
COVER,FRAME CTR
€ 25.50
16
4731102F00Y2D
ref: 16
COVER,FRAME CTR
€ 28.50
16
4731102F00Y7H
ref: 16
COVER,FRAME CTR
€ 30.00
17
0324115123
ref: 17
SCREW
€ 2.50
18
0914805038
ref: 18
NUT
€ 2.50
19
4712902F00
ref: 19
CUSHION
€ 7.50
