FRONT WHEEL
TL1000S 2000 (Y)

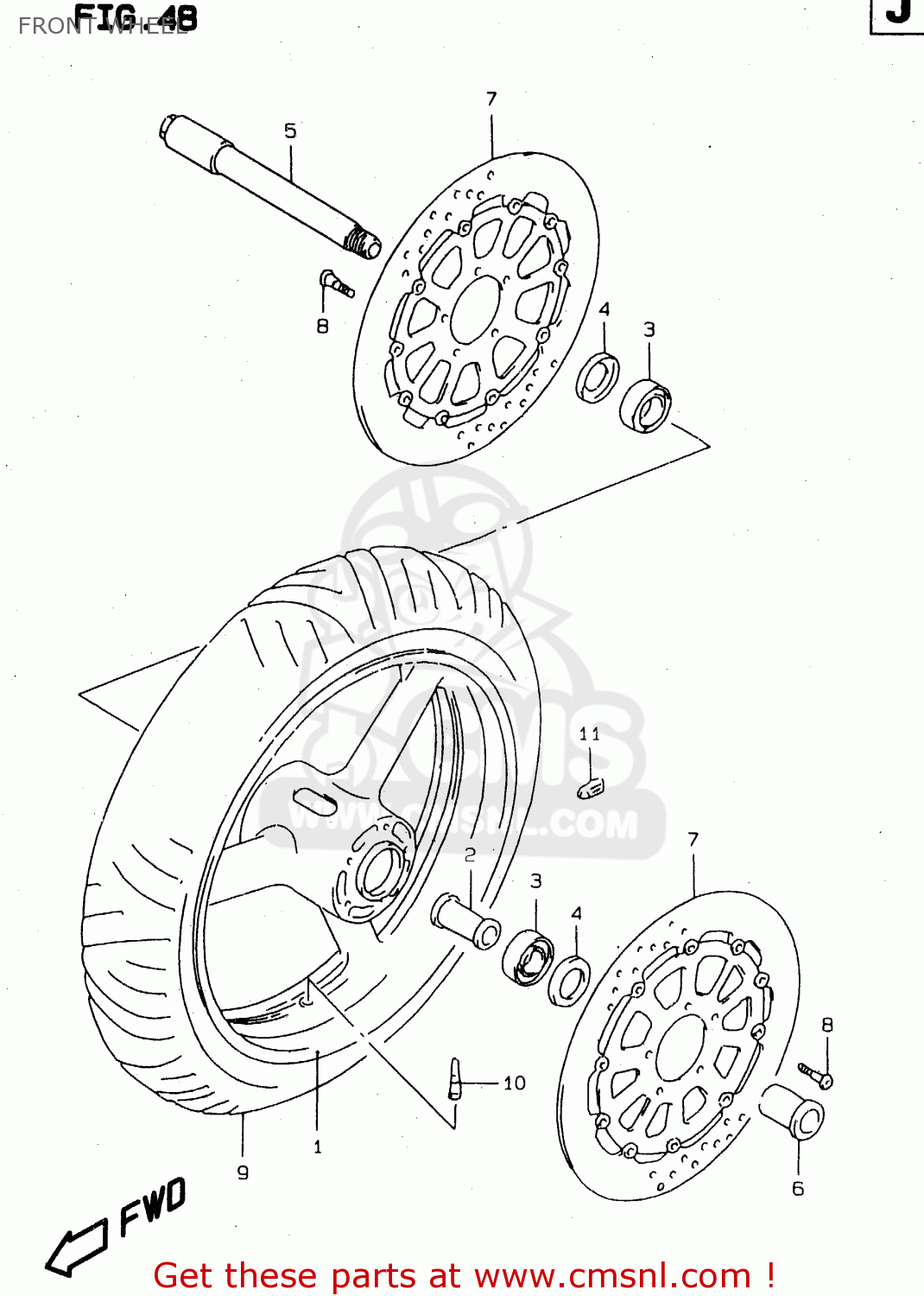

Front wheel diagram TL1000S 2000 (Y)
FRONT WHEEL TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
5411133E0035B
ref: 1
WHEEL,FRONT (17XMT3.50)(
€ 429.00
2
5473033E00
ref: 2
MODEL V/W, ->54731-3
SPACER,FRONT HUB BEARING
€ 30.00
2
5473133E10
ref: 2
MODEL X
SPACER,FR HUB BEARING
€ 30.00
3
0926225061
ref: 3
BEARING(25X52X15)
€ 27.50
4
0928532004
ref: 4
SEAL,OIL(32X52X7)
€ 8.00
5
5471133E00
ref: 5
AXLE,FR
€ 151.00
6
5471233E00
ref: 6
NUT,FR AXLE
€ 66.50
7
5921033E20
ref: 7
DISC,FR BRAKE
€ 306.00
8
0910608125
ref: 8
BOLT 8X33
€ 6.00
9
5511002F00
ref: 9
PURCHASE LOCALLY
TIRE 120/70 ZR17 (58W),M
€ 190.00
10
4313024A00
ref: 10
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
11
5541100A00
ref: 11
BALANCER,WHEEL (10G)
€ 6.50
11
5541200A01
ref: 11
BALANCER,WHEEL (20G)
€ 7.00
