TL1000S 2000 (Y)

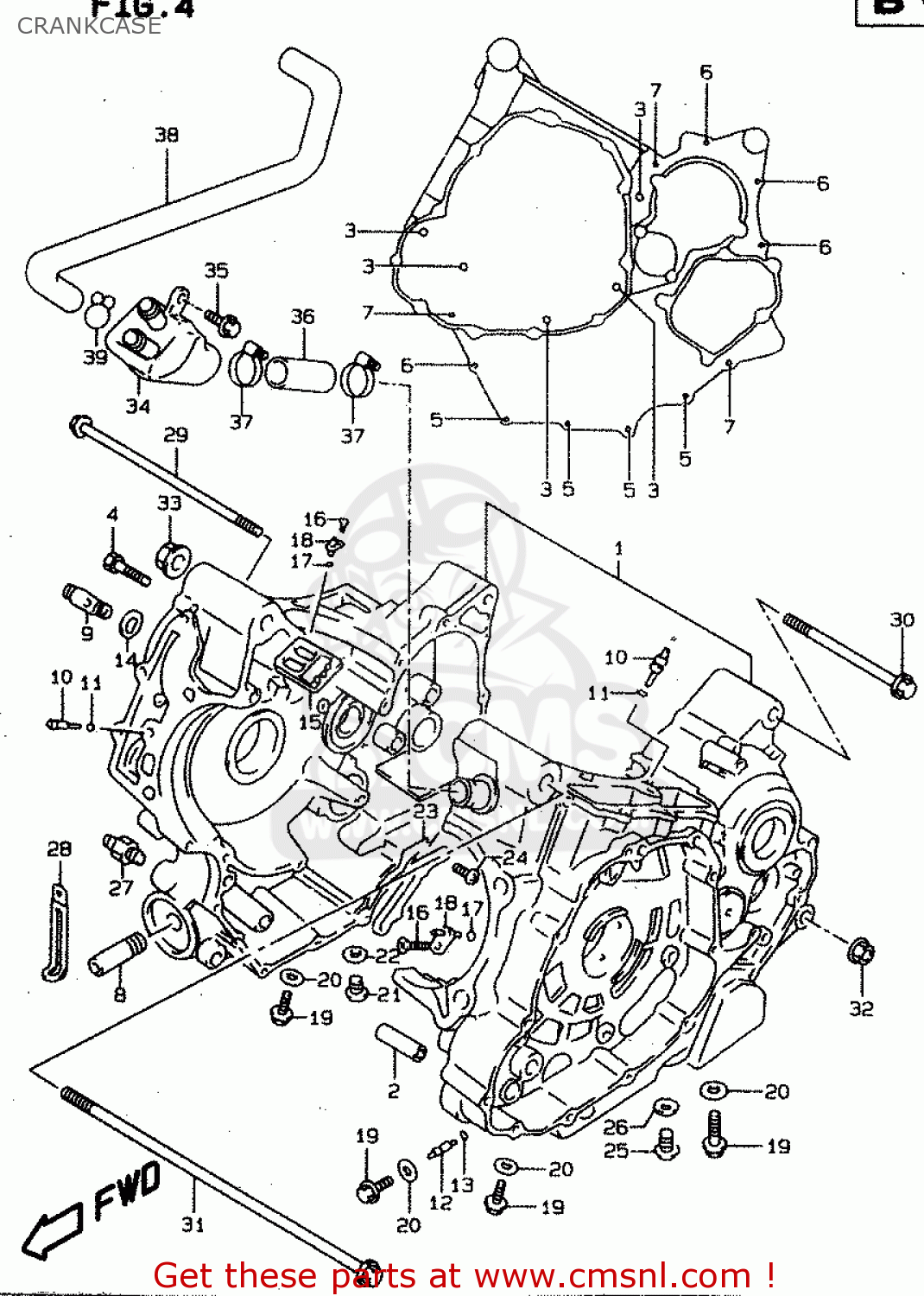

Crankcase diagram TL1000S 2000 (Y)
CRANKCASE TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
1130502860
ref: 1
MODEL V, ->11305-028
CRANKCASE SET
€ 1,976.50
1
1130602820
ref: 1
MODEL W
CRANKCASE SET
€ 1,894.00
1
1130602822
ref: 1
MODEL X
CRANKCASE SET
€ 1,894.00
2
1131933E00
ref: 2
PIN,CRANKCASE
€ 4.00
3
0712008903
ref: 3
BOLT
€ 4.50
4
0713008703
ref: 4
BOLT
€ 4.00
5
0155006353
ref: 5
BOLT
€ 2.50
6
0155006703
ref: 6
BOLT
€ 2.50
7
0155006853
ref: 7
BOLT
€ 2.50
8
1659106B00
ref: 8
UNION,OIL STAND
€ 6.00
9
1132902F00
ref: 9
JET,OIL GALLERY(3.6)
€ 4.50
10
0949320014
ref: 10
JET,OIL GALLERY
€ 8.00
11
0928004004
ref: 11
O RING(D:1.2,ID:4)
€ 2.00
12
0949320014
ref: 12
MODEL V
JET,OIL GALLERY
€ 8.00
12
0949328010
ref: 12
MODEL W/X
JET,AIR(14)
€ 10.50
13
0928004004
ref: 13
O RING(D:1.2,ID:4)
€ 2.00
14
0928012009
ref: 14
O RING(D:1.9,ID:12.6)
€ 2.50
15
1315002F00
ref: 15
VALVE ASSY,BREATHER
€ 40.50
16
0912506086
ref: 16
SCREW(6X12)
€ 2.00
17
0928004004
ref: 17
O RING(D:1.2,ID:4)
€ 2.00
18
1139002F00
ref: 18
JET,PISTON COOLING
€ 21.50
19
0155008123
ref: 19
BOLT
€ 3.50
20
0916808015
ref: 20
GASKET(8.2X14X1).6 (NAS)
€ 2.50
21
0924816010
ref: 21
PLUG
€ 4.50
22
0916816002
ref: 22
GASKET(16X22X2) (NAS)
€ 2.00
23
1132302F00
ref: 23
MODEL V/W
COVER,OIL GALLERY
€ 8.00
24
0211206123
ref: 24
MODEL V/W
SCREW
€ 1.50
25
0924714001
ref: 25
PLUG
€ 5.00
26
0916814002
ref: 26
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
27
3782033D00
ref: 27
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
28
0940406432
ref: 28
<-09404-06429
CLAMP(L:65)
€ 2.50
29
0910310145
ref: 29
BOLT(10X205)
€ 13.00
30
0910310146
ref: 30
BOLT(10X155)
€ 8.50
31
0910312050
ref: 31
BOLT(12X340)
€ 33.00
32
0915910058
ref: 32
NUT
€ 4.00
33
0831931128
ref: 33
NUT 12MM
€ 4.00
34
1133002F00
ref: 34
MODEL W
TANK COMP,OIL RETURN
€ 72.00
34
1133002F01
ref: 34
MODEL X
TANK,OIL RETURN
€ 72.00
35
0155006163
ref: 35
MODEL W/X
BOLT
€ 2.50
36
1133302F00
ref: 36
MODEL W/X
HOSE,OIL RETURN
€ 7.50
37
0940228511
ref: 37
MODEL W/X
CLAMP
€ 8.50
38
1133202F00
ref: 38
MODEL W/X
HOSE,BREATHER
€ 21.00
39
0940115101
ref: 39
MODEL W/X
CLIP
€ 2.00
