CRANKSHAFT
TL1000S 2000 (Y)

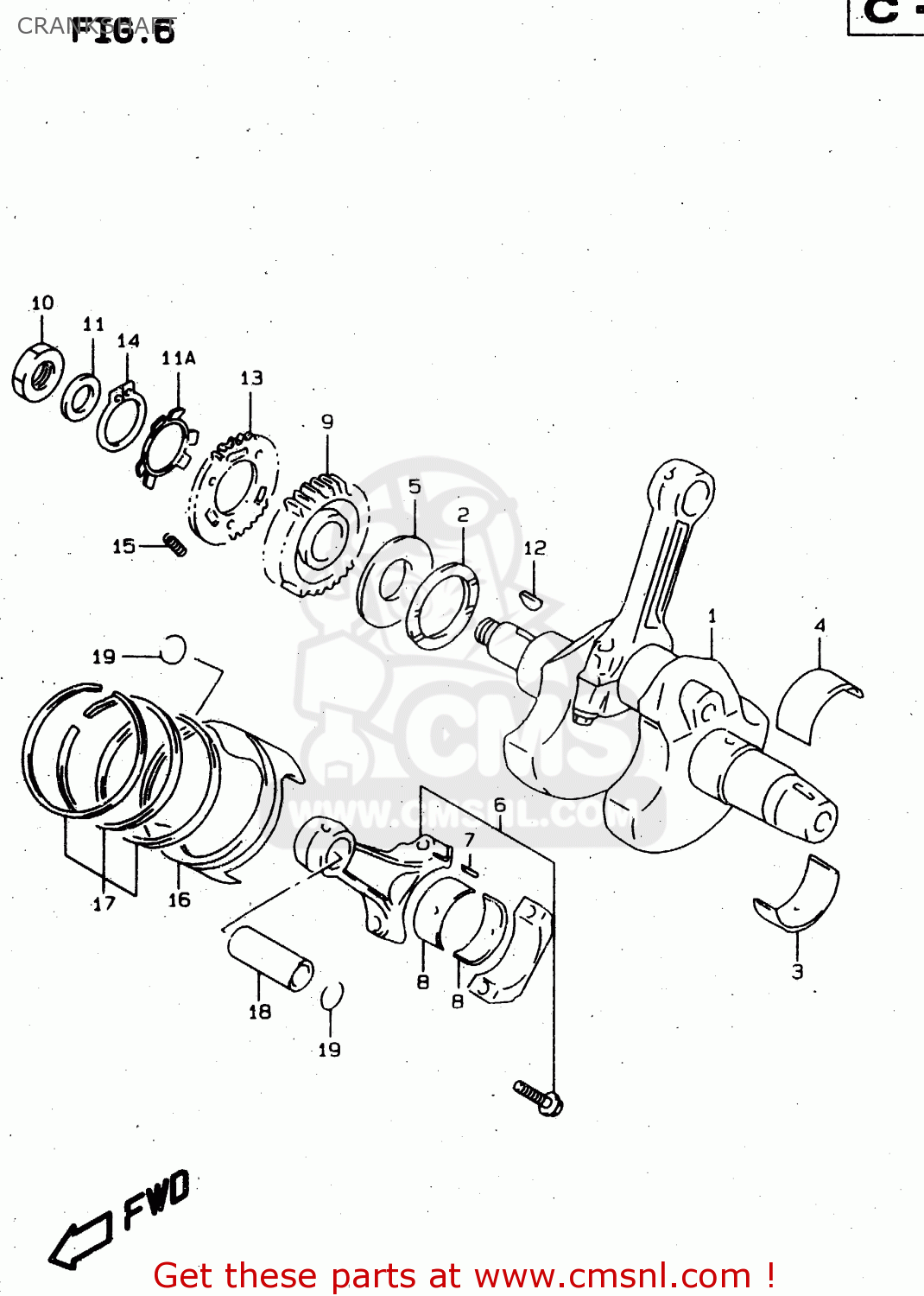

Crankshaft diagram TL1000S 2000 (Y)
CRANKSHAFT TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
1200002810
ref: 1
CRANKSHAFT SET
€ 1,306.50
2
0916048001
ref: 2
WASHER(48.1X64X1.94)
€ 18.50
2
0916048002
ref: 2
WASHER(48.1X64X1.96)
€ 17.00
2
0916048003
ref: 2
WASHER(48.1X64X1.99)
€ 17.00
2
0916048004
ref: 2
WASHER(48.1X64X2.01)
€ 17.00
2
0916048005
ref: 2
WASHER(48.1X64X2.04)
€ 17.00
2
0916048006
ref: 2
WASHER(48.1X64X2.06)
€ 17.00
2
0916048007
ref: 2
WASHER(48.1X64X2.09)
€ 17.00
2
0916048008
ref: 2
WASHER(48.1X64X2.11)
€ 17.00
2
0916048009
ref: 2
WASHER(48.1X64X2.14)
€ 17.00
2
0916048010
ref: 2
WASHER(48.1X64X2.16)
€ 17.00
3
1222902F000A0
ref: 3
MODEL V/W
BEARING,CRANKSHAFT,LOWER
€ 23.00
3
1222902F000B0
ref: 3
MODEL V/W
BEARING,CRANKSHAFT,LOWER
€ 25.50
3
1222902F000C0
ref: 3
MODEL V/W
BEARING,CRANKSHAFT,LOWER
€ 25.50
3
1222902F210A0
ref: 3
MODEL X
BEARING,CRANKSHAFT
€ 23.00
3
1222902F210B0
ref: 3
MODEL X
BEARING,CRANKSHAFT
€ 25.50
3
1222902F210C0
ref: 3
MODEL X
BEARING,CRANKSHAFT
€ 25.50
4
1222902F100A0
ref: 4
MODEL V/W
BEARING,CRANKSHAFT,UPPER
€ 23.00
4
1222902F100B0
ref: 4
MODEL V/W
BEARING,CRANKSHAFT,UPPER
€ 25.50
4
1222902F100C0
ref: 4
MODEL V/W
BEARING,CRANKSHAFT,UPPER
€ 25.50
4
1222902F210A0
ref: 4
MODEL X
BEARING,CRANKSHAFT
€ 23.00
4
1222902F210B0
ref: 4
MODEL X
BEARING,CRANKSHAFT
€ 25.50
4
1222902F210C0
ref: 4
MODEL X
BEARING,CRANKSHAFT
€ 25.50
5
1265238B00
ref: 5
MODEL V/W
WASHER,CRANK THRUST
€ 54.50
5
1265202F00
ref: 5
MODEL X
WASHER,CRANK THRUST
€ 47.00
6
1216002F00
ref: 6
CONNECTING ROD ASSY
€ 146.50
7
1216527A50
ref: 7
PIN,CONNECTING ROD
€ 1.00
8
1216402F000A0
ref: 8
BEARING,CRANK PIN
€ 11.00
8
1216402F000B0
ref: 8
BEARING,CRANK PIN
€ 12.50
8
1216402F000C0
ref: 8
BEARING,CRANK PIN
€ 16.50
8
1216402F000D0
ref: 8
BEARING,CRANK PIN
€ 11.00
9
2111102F00
ref: 9
MODEL V/W
GEAR,PRIMARY DRIVE
€ 96.00
9
2111102F10
ref: 9
MODEL X
GEAR,PRIMARY DRIVE
€ 91.50
10
0914022012
ref: 10
NUT
€ 7.50
11
0916422007
ref: 11
WASHER
€ 5.00
11A
2111402F00
ref: 11A
MODEL X
WASHER,PRI DRIVE
€ 5.50
12
0834131069
ref: 12
KEY
€ 4.50
13
2111202F00
ref: 13
GEAR,PRIMARY DRIVE SCISSORS
€ 72.50
14
0833131426
ref: 14
MODEL V/W
CIRCLIP
€ 2.00
14
0833131406
ref: 14
MODEL X
CIRCLIP
€ 2.50
15
0944007001
ref: 15
SPRING
€ 2.00
16
1211102F000F0
ref: 16
PISTON
€ 87.00
17
1214002F40
ref: 17
MODEL V
RING SET,PISTON
€ 84.00
17
1214002F42
ref: 17
MODEL W/X
RING SET,PISTON
€ 84.00
18
1215102F00
ref: 18
PIN,PISTON
€ 21.50
19
0938122002
ref: 19
CIRCLIP
€ 1.50
