CYLINDER
TL1000S 2000 (Y)

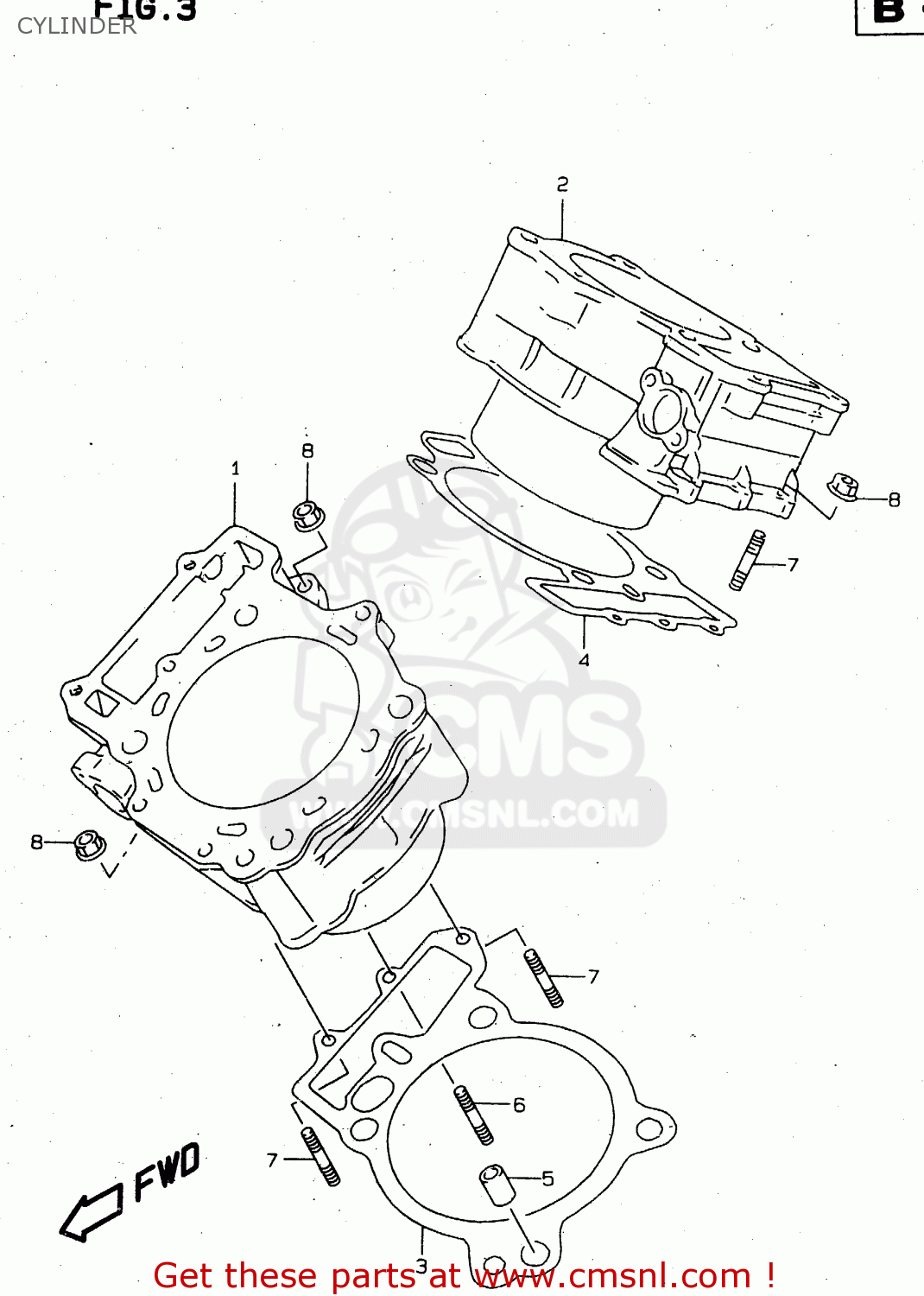

Cylinder diagram TL1000S 2000 (Y)
CYLINDER TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
1121102F000F0
ref: 1
MODEL V/W
CYLINDER,FRONT
€ 1,113.50
1
1121102F010F0
ref: 1
MODEL X
CYLINDER,FRONT
€ 1,113.50
2
1122102F000F0
ref: 2
MODEL V/W
CYLINDER,REAR
€ 663.00
2
1122102F010F0
ref: 2
MODEL X
CYLINDER,REAR
€ 663.00
3
1124102F00
ref: 3
MODEL V/W
GASKET,CYLINDER,FRONT (NAS)
€ 19.50
3
1124102F01
ref: 3
MODEL X
GASKET,CYLINDER FR (NAS)
€ 19.50
4
1124202F00
ref: 4
MODEL V/W
GASKET,CYLINDER,REAR (NAS)
€ 19.50
4
1124202F01
ref: 4
MODEL X
GASKET,CYLINDER RR (NAS)
€ 19.50
5
0421113189
ref: 5
PIN
€ 2.50
6
0910806118
ref: 6
STUD BOLT (L:20)
€ 2.00
7
0142106203
ref: 7
STUD,M6X1X32
€ 2.50
8
0831610063
ref: 8
NUT
€ 2.50
