FRONT CYLINDER HEAD (MODEL W/X)
TL1000S 2000 (Y)

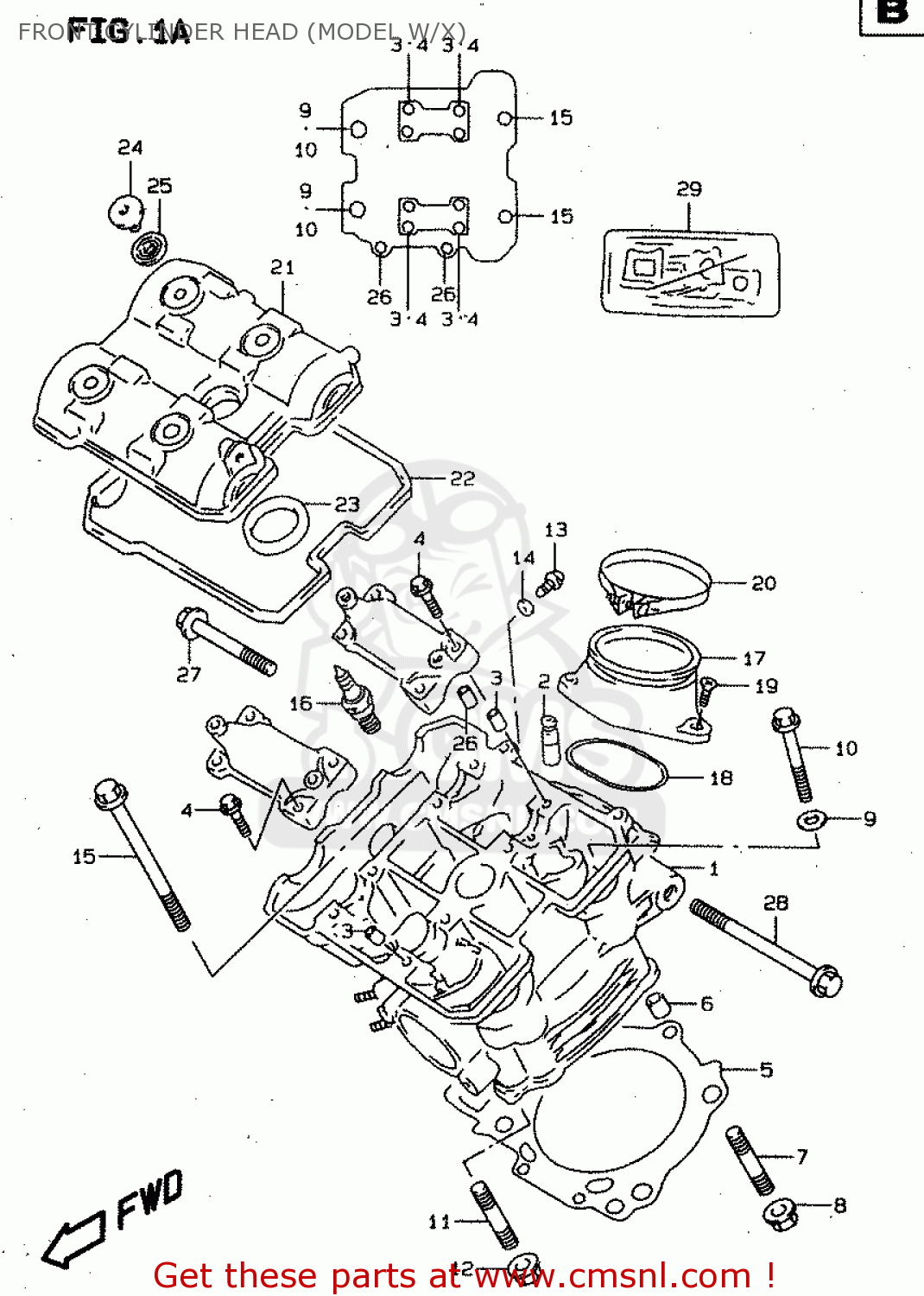

Front cylinder head (model w/x) diagram TL1000S 2000 (Y)
FRONT CYLINDER HEAD (MODEL W/X) TL1000S 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
1110002F20
ref: 1
MODEL W
HEAD,CYLINDER
€ 924.50
1
1110002F30
ref: 1
MODEL W E18, E22
HEAD ASSEMBLY,CYLINDER
€ 1,066.50
1
1110002F21
ref: 1
MODEL X
HEAD ASSY,CYLINDER
€ 924.50
1
1110002F31
ref: 1
MODEL X E18, E22
HEAD ASSY,CYLINDER
€ 1,066.50
2
1111532E70
ref: 2
GUIDE,VALVE
€ 18.50
3
0920608001
ref: 3
PIN(6.2X8X11)
€ 2.00
4
0910306026
ref: 4
BOLT(6X39)
€ 2.00
5
1114102F00
ref: 5
MODEL W
GASKET,CYLINDER HEAD,FRONT (NAS)
€ 42.00
5
1114102F01
ref: 5
MODEL X
GASKET,CYLINDER HEAD (NAS)
€ 42.00
6
0421113189
ref: 6
PIN
€ 2.50
7
0910808143
ref: 7
BOLT,STUD
€ 3.00
8
0831610083
ref: 8
NUT
€ 3.00
9
0916010082
ref: 9
WASHER(10.5X19X2)
€ 2.00
10
1116102F00
ref: 10
BOLT,CYLINDER HEAD(L:175)
€ 18.00
11
0910806096
ref: 11
BOLT,STUD
€ 2.50
12
0831610063
ref: 12
NUT
€ 2.50
13
0712006123
ref: 13
BOLT
€ 3.50
14
0916306023
ref: 14
GASKET
€ 0.00
15
0910306103
ref: 15
BOLT(6X70)
€ 2.50
16
0948200412
ref: 16
PLUG,SPARK(CR8EK)
€ 11.00
16
0948200413
ref: 16
PLUG,SPARK(U24ETR)
€ 11.00
16
0948200410
ref: 16
OPT
PLUG,SPARK(CR9EK)
€ 10.50
16
0948200411
ref: 16
OPT
PLUG,SPARK(U27ETR)
€ 8.50
16
0948200462
ref: 16
OPT
PLUG,SPARK(CR10EK)
€ 10.50
16
0948200463
ref: 16
OPT
PLUG,SPARK(U31ETR)
€ 10.50
17
1310102F00
ref: 17
PIPE ASSY,INTAKE
€ 55.00
17
1310102F20
ref: 17
E4, E22
PIPE ASSY,INTAKE
€ 48.50
18
0928055005
ref: 18
O RING(D:2.4,ID:55.6)
€ 5.50
19
0912006010
ref: 19
SCREW
€ 3.00
20
0940270203
ref: 20
CLAMP
€ 6.00
21
1117102F00
ref: 21
COVER,CYLINDER HEAD FR
€ 167.50
22
1117302F00
ref: 22
GASKET,CYL HEAD COVER NO.1 (NAS)
€ 29.00
23
1117817E00
ref: 23
GASKET,CYL HEAD COVER NO.2
€ 6.00
24
0910607009
ref: 24
BOLT(7X17.5)
€ 4.50
25
0916111008
ref: 25
WASHER(10.6X25.5X2.3)
€ 4.50
26
0920608001
ref: 26
PIN(6.2X8X11)
€ 2.00
27
0155010657
ref: 27
BOLT
€ 3.50
28
0155010907
ref: 28
BOLT
€ 4.00
29
1140102850
ref: 29
MODEL W, NOT INCLUDE
GASKET SET (NAS)
€ 232.00
29
1140102851
ref: 29
MODEL X, NOT INCLUDE
GASKET SET
€ 232.00
