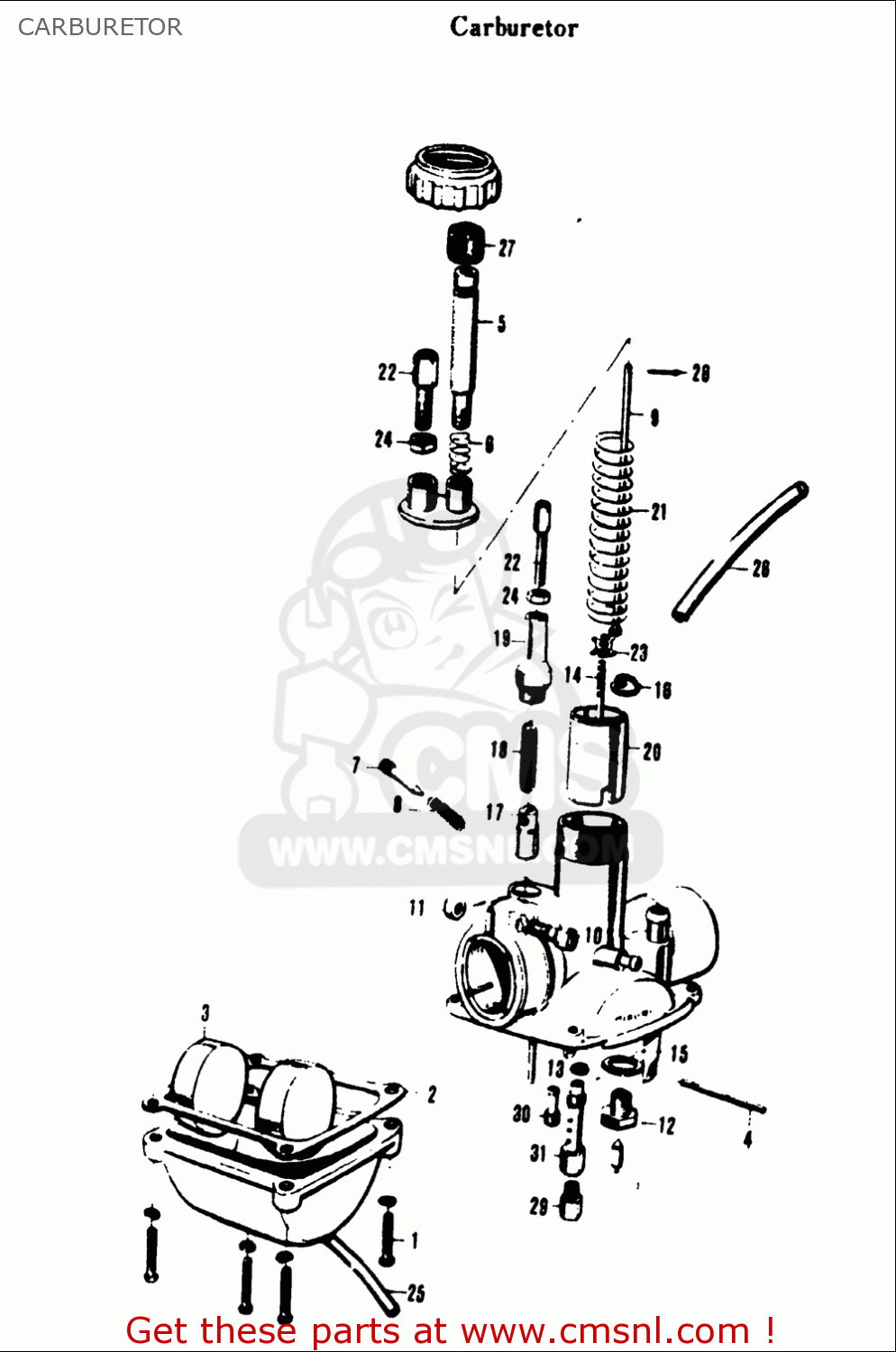

CARBURETOR

ref

part #

description

quantity

2

1325109211
ref: 2

GASKET,FLOAT CHAMBER (NAS)

€ 6.50

3

1325209210
ref: 3

FLOAT

€ 23.00

4

1325401010
ref: 4

PIN,FLOAT

€ 3.00

5

1326705010
ref: 5

SCREW,THROTTLE STOP

€ 10.50

6

1326805010
ref: 6

SPRING,THROTTLE STOP SCREW

€ 5.50

7

1326901010
ref: 7

SCREW,PILOT AIR

€ 14.50

9

1329611010
ref: 9

ROD,THROTTLE VALVE ADJUST

€ 6.50

11

1332403010
ref: 11

NUT

€ 3.00

12

1337009211
ref: 12

VALVE ASSY,NEEDLE

€ 55.00

13

1338203110
ref: 13

WASHER

€ 2.50

14

1338312011
ref: 14

NEEDLE,JET

€ 12.50

15

1339201010
ref: 15

GASKET,NEEDLE VALVE (NAS)

€ 2.50

16

1339440D00
ref: 16

CLIP,NEEDLE

€ 3.00

17

1341101010
ref: 17

PLUNGER,STARTER

€ 14.00

18

1341701010
ref: 18

SPRING

€ 3.50

19

1341863110
ref: 19

CAP

€ 6.50

21

1357336110
ref: 21

SPRING,THROTTLE VALVE

€ 3.00

22

1357748110
ref: 22

ADJUSTER,CABLE

€ 8.00

23

1358109210
ref: 23

STOPPER,NEEDLE CLIP

€ 5.50

24

1366103010
ref: 24

NUT

€ 3.50

27

1368808010
ref: 27

CAP,THROTTLE VALVE STOP SCREW

€ 4.00

29

0949175001
ref: 29

JET,MAIN

€ 6.50

29-1

0949170001
ref: 29-1

JET,MAIN

€ 6.00

29-2

0949180001
ref: 29-2

JET,MAIN (80)

€ 12.00

29-4

0949190001
ref: 29-4

JET,MAIN (90)

€ 6.50

29-4

0949190001
ref: 29-4

JET,MAIN (90)

€ 6.50
