OIL PUMP

A100 AS100 AC100 1969 USA (E03)

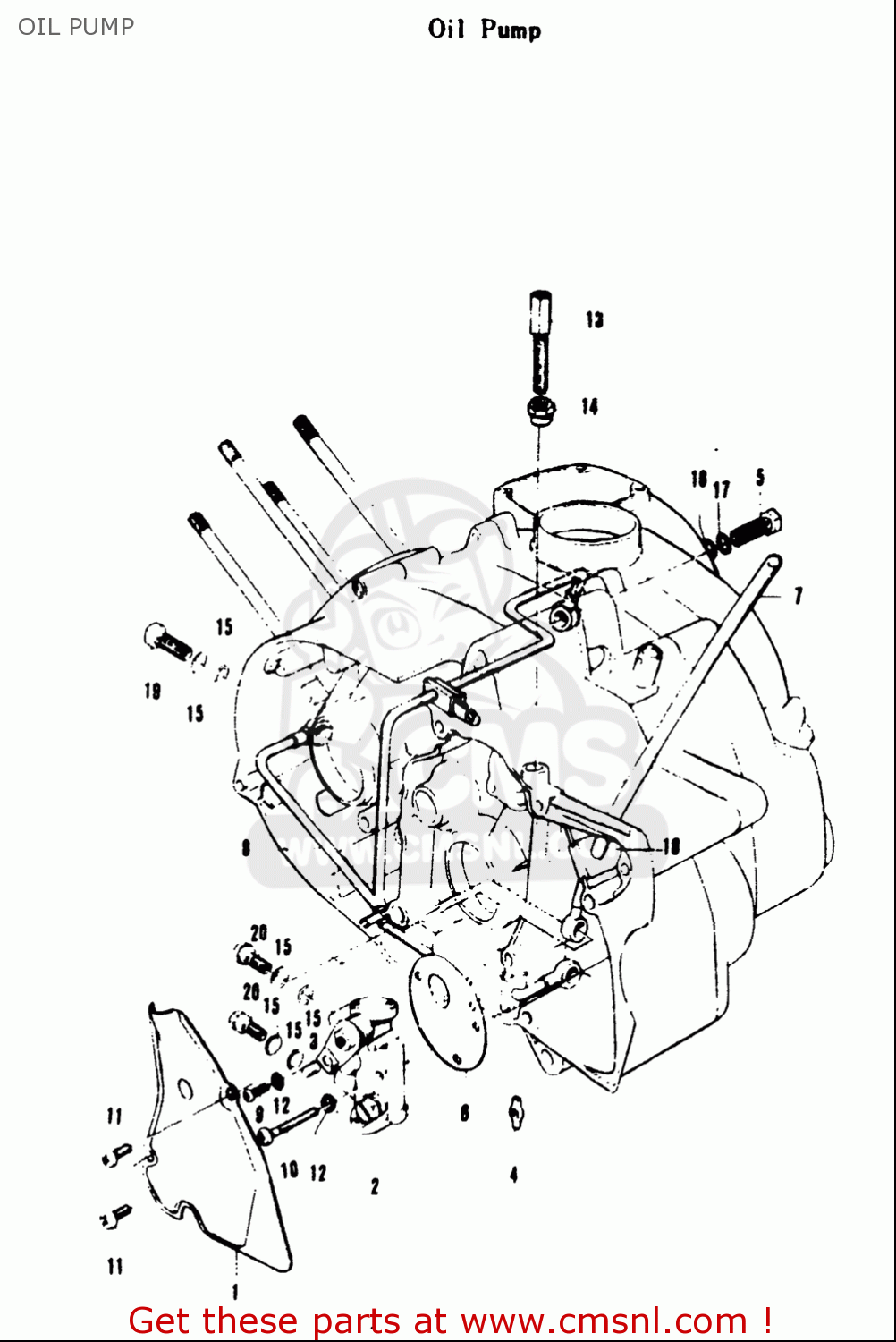

Oil pump diagram A100 AS100 AC100 1969 USA (E03)

OIL PUMP A100 AS100 AC100 1969 USA (E03)

OIL PUMP A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

3

1629203112
ref: 3

TERMINAL,CABLE

€ 3.50

4

1639105031
ref: 4

PIECE,OIL PUMP DRIVE

€ 2.50

6

1673103101
ref: 6

GASKET,OIL PUMP (NAS)

€ 2.50

9

0211205167
ref: 9

SCREW

€ 2.50

12

0832101057
ref: 12

WASHER,LOCK

€ 2.00

15

0916806004
ref: 15

GASKET(6.2X11X1).2 (NAS)

€ 1.50

16

0916810005
ref: 16

GASKET(10X16X3) (NAS)

€ 6.00

17

0928008003
ref: 17

O RING(D:1.3,ID:7.6)

€ 1.00

18

0930908002
ref: 18

GROMMET

€ 3.00

19

0936006003
ref: 19

UNION BOLT

€ 5.00
