CYLINDER HEAD-CRANKCASE COVER-MUFFLER

A100 AS100 AC100 1969 USA (E03)

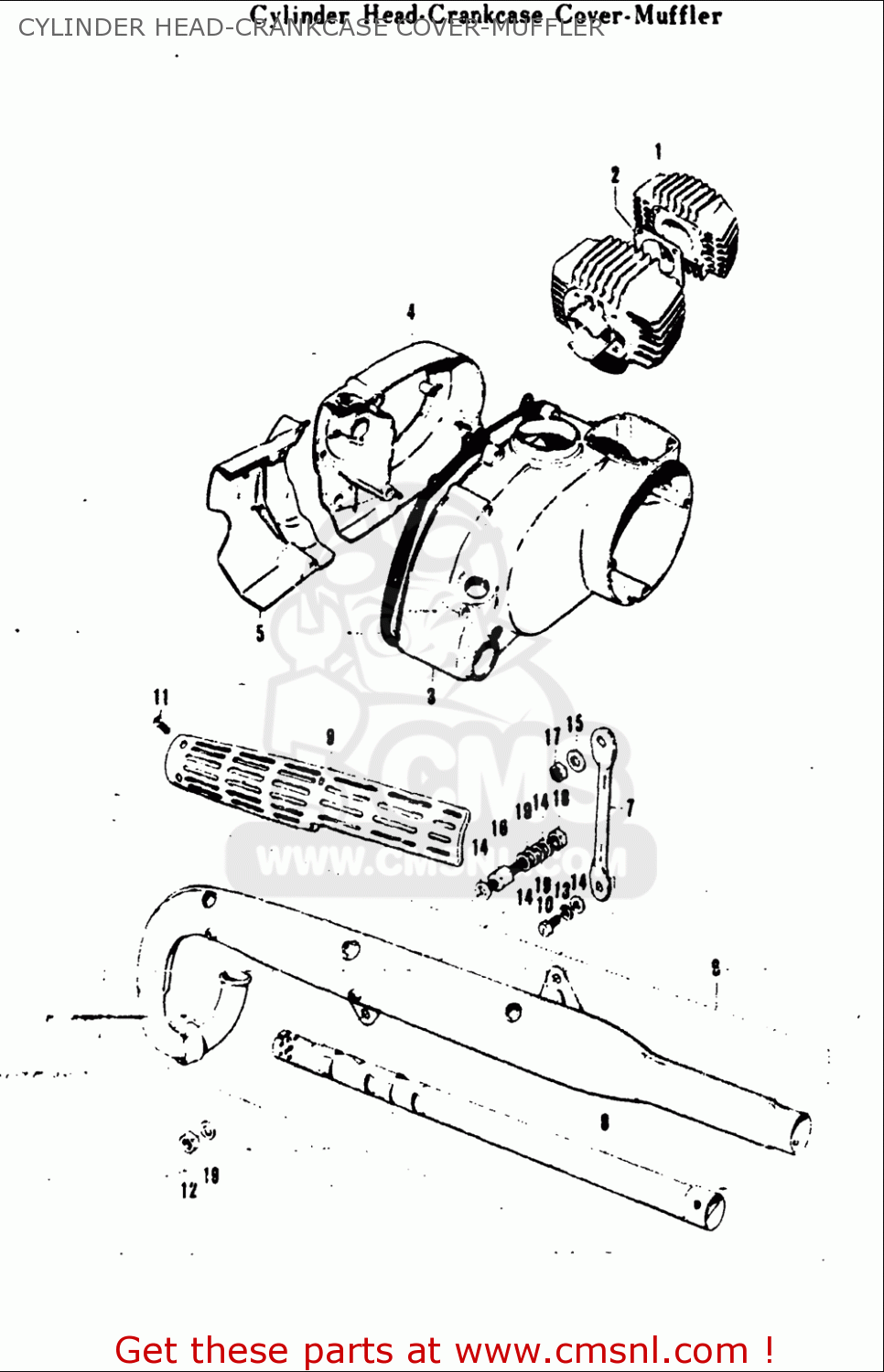

Cylinder head-crankcase cover-muffler diagram A100 AS100 AC100 1969 USA (E03)

CYLINDER HEAD-CRANKCASE COVER-MUFFLER A100 AS100 AC100 1969 USA (E03)

CYLINDER HEAD-CRANKCASE COVER-MUFFLER A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

12

0831000087
ref: 12

NUT

€ 2.00

13

0832101087
ref: 13

WASHER,LOCK

€ 2.00

14

0832201087
ref: 14

WASHER

€ 2.00

15

0832201107
ref: 15

WASHER

€ 2.50

18

0915908020
ref: 18

NUT

€ 2.50
