SPEEDOMETER-HEAD LAMP-HIGH BEAM INDICATOR

A100 AS100 AC100 1969 USA (E03)

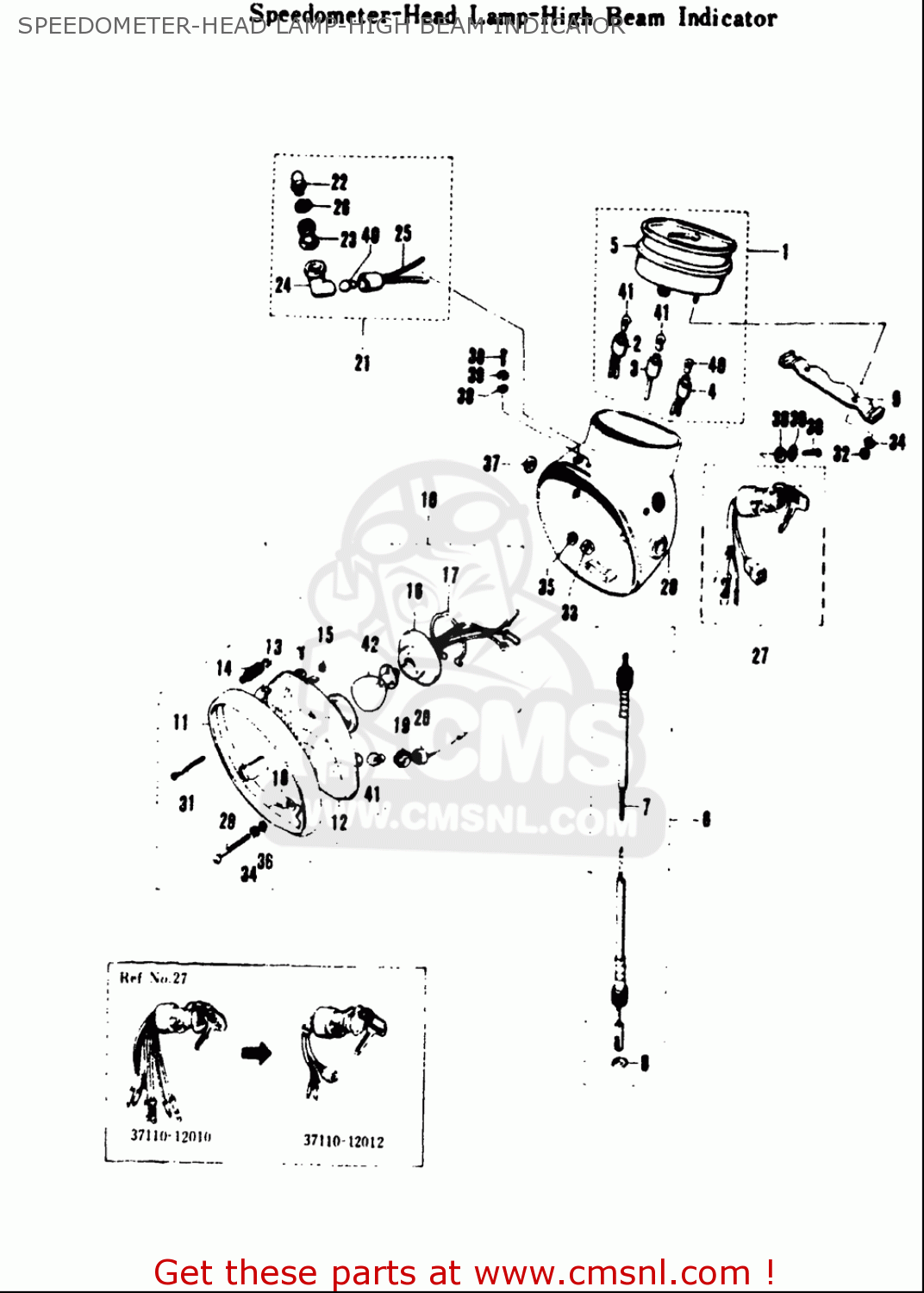

Speedometer-head lamp-high beam indicator diagram A100 AS100 AC100 1969 USA (E03)

SPEEDOMETER-HEAD LAMP-HIGH BEAM INDICATOR A100 AS100 AC100 1969 USA (E03)

SPEEDOMETER-HEAD LAMP-HIGH BEAM INDICATOR A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

8

3492801030
ref: 8

SEAL,OIL METER CABLE

€ 4.00

13

3513619610
ref: 13

SCREW,LENS

€ 0.00

29

0211205357
ref: 29

SCREW

€ 1.50

30

021220412A
ref: 30

SCREW

€ 2.00

32

0831000057
ref: 32

NUT

€ 2.50

33

0831000087
ref: 33

NUT

€ 2.00

34

0832101057
ref: 34

WASHER,LOCK

€ 2.00

35

0832101087
ref: 35

WASHER,LOCK

€ 2.00

36

0832201057
ref: 36

WASHER

€ 2.50

38

0916104005
ref: 38

WASHER(4X12.5X0.3)

€ 1.50

39

0916504004
ref: 39

WASHER

€ 3.00

40

0947106001
ref: 40

BULB(6V1.7W,STANLEY,A61A)

€ 2.50

41

0947106002
ref: 41

BULB(6V/3W)

€ 2.50
