FRAME-BRAKE PEDAL-FUEL TANK-OIL TANK-SEAT

A100 AS100 AC100 1969 USA (E03)

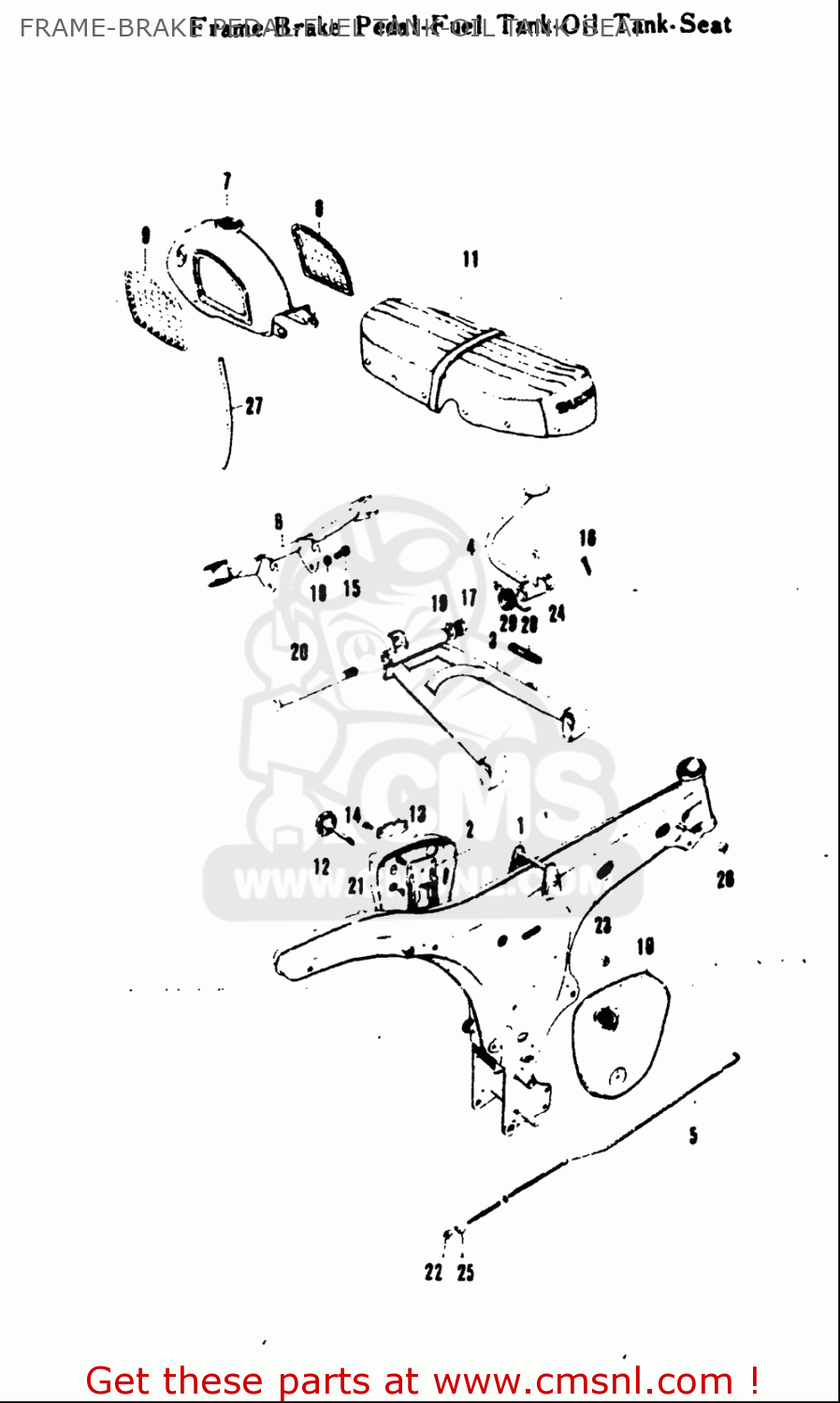

Frame-brake pedal-fuel tank-oil tank-seat diagram A100 AS100 AC100 1969 USA (E03)

FRAME-BRAKE PEDAL-FUEL TANK-OIL TANK-SEAT A100 AS100 AC100 1969 USA (E03)

FRAME-BRAKE PEDAL-FUEL TANK-OIL TANK-SEAT A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

2

4154005102
ref: 2

HOLDER,BATTERY

€ 15.00

15

0150008163
ref: 15

BOLT

€ 2.00

16

041113030A
ref: 16

PIN

€ 1.50

17

0831000107
ref: 17

NUT

€ 2.50

18

0832101087
ref: 18

WASHER,LOCK

€ 2.00

19

0832101107
ref: 19

WASHER,LOCK

€ 2.00

20

0910010018
ref: 20

BOLT

€ 4.50

21

0912806044
ref: 21

SCREW(6X10)

€ 1.50

22

0915006014
ref: 22

NUT

€ 3.50

23

0916006019
ref: 23

WASHER(6.5X16X1.2)

€ 1.50

24

0916015002
ref: 24

WASHER(15.5X26X2.3)

€ 2.00

25

0920911002
ref: 25

PIN(11X18)

€ 2.00

27

093525082300B
ref: 27

HOSE(5X8.2X2000)

€ 13.00

28

0944316004
ref: 28

SPRING

€ 5.50
