CRANKCASE RIGHT COVER-CRANKCASE LEFT COVER

A100 AS100 AC100 1969 USA (E03)

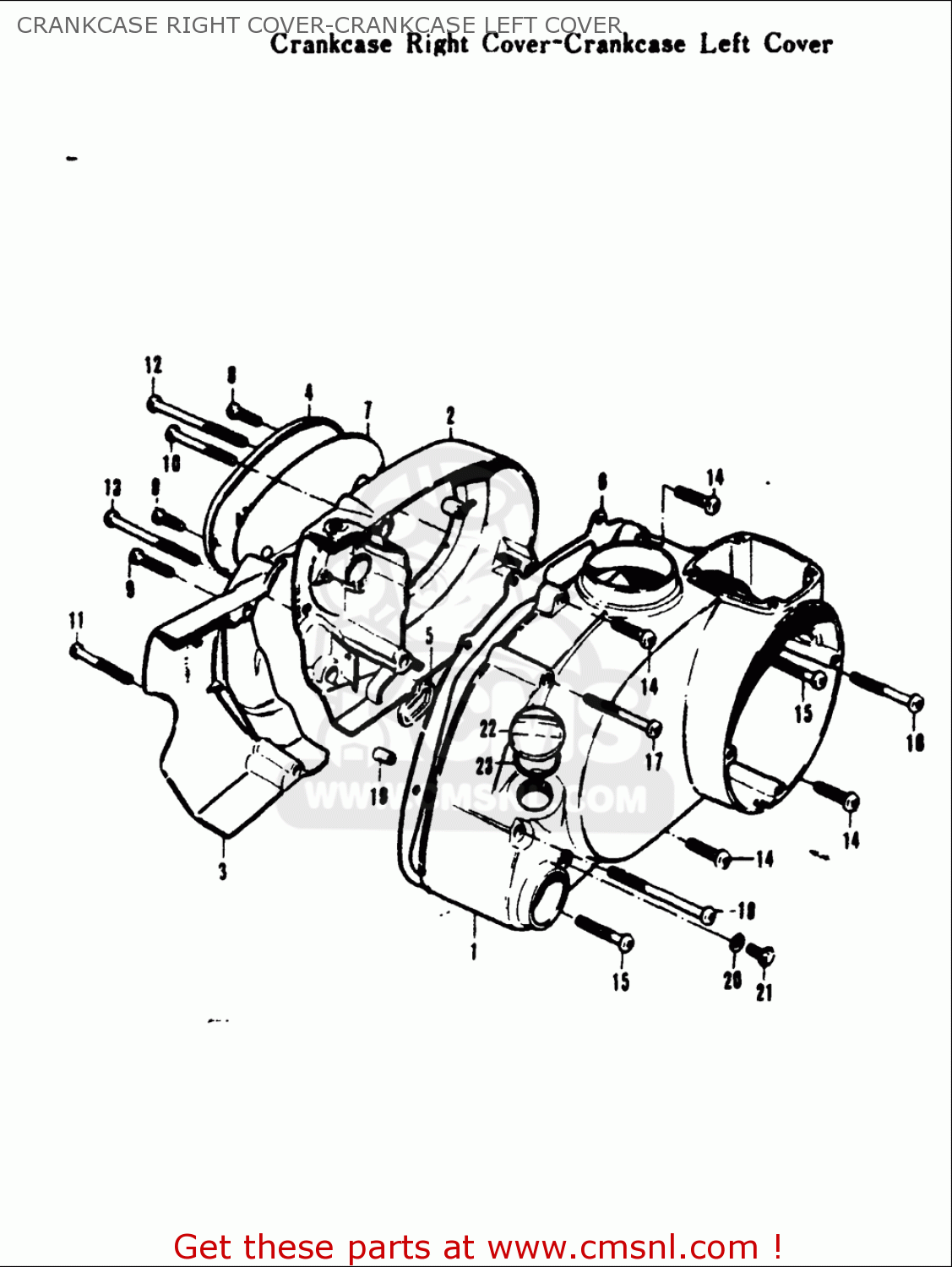

Crankcase right cover-crankcase left cover diagram A100 AS100 AC100 1969 USA (E03)

CRANKCASE RIGHT COVER-CRANKCASE LEFT COVER A100 AS100 AC100 1969 USA (E03)

CRANKCASE RIGHT COVER-CRANKCASE LEFT COVER A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

6

1148212010
ref: 6

GASKET,CLUTCH COVER (NAS)

€ 13.50

14

0211206257
ref: 14

SCREW

€ 2.00

15

0211206357
ref: 15

SCREW

€ 2.50

16

0211206457
ref: 16

SCREW

€ 2.00

17

0211206507
ref: 17

SCREW

€ 2.50

18

0211206707
ref: 18

SCREW

€ 3.00

19

0421109129
ref: 19

PIN

€ 2.00

20

0916806001
ref: 20

GASKET(6.2X11X1) (NAS)

€ 1.50

22

0920020810
ref: 22

PLUG SET

€ 8.00
