FENDER-HANDLEBAR-CABLE-REAR SWINGING ARM

A100 AS100 AC100 1969 USA (E03)

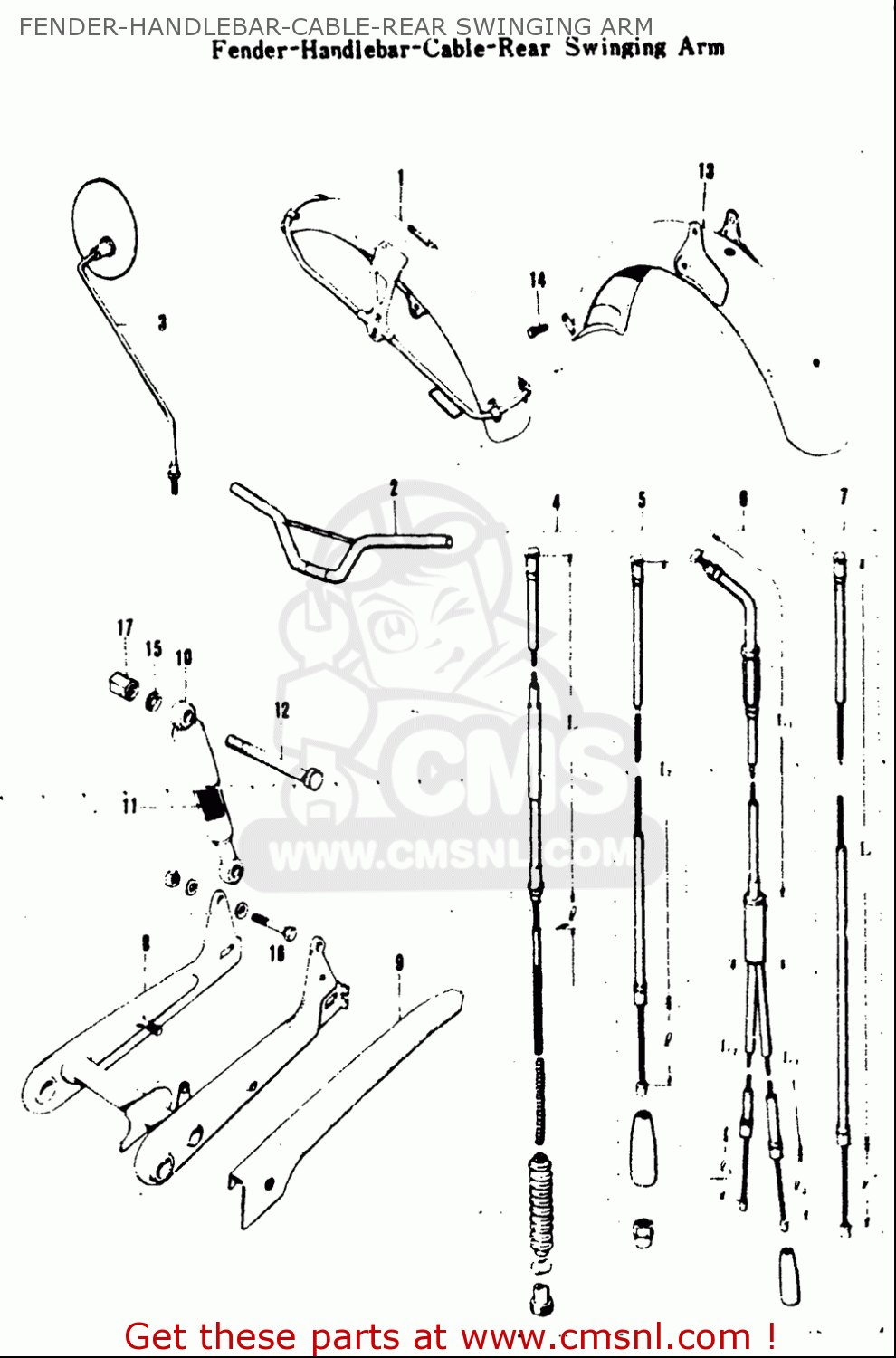

Fender-handlebar-cable-rear swinging arm diagram A100 AS100 AC100 1969 USA (E03)

FENDER-HANDLEBAR-CABLE-REAR SWINGING ARM A100 AS100 AC100 1969 USA (E03)

FENDER-HANDLEBAR-CABLE-REAR SWINGING ARM A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

6

5830012300
ref: 6

CABLE ASSEMBLY,THROTTLE

€ 35.00

7

5841001X01
ref: 7

CABLE,STARTER

€ 6.00

12

6231105100
ref: 12

SHAFT,REAR SHOCK ABSORBER

€ 11.50

15

0832201107
ref: 15

WASHER

€ 2.50

16

0910010046
ref: 16

BOLT(10X43)

€ 2.00
