SELENIUM RECTIFIER-BATTERY-MAIN WIRING HARNESS

A100 AS100 AC100 1969 USA (E03)

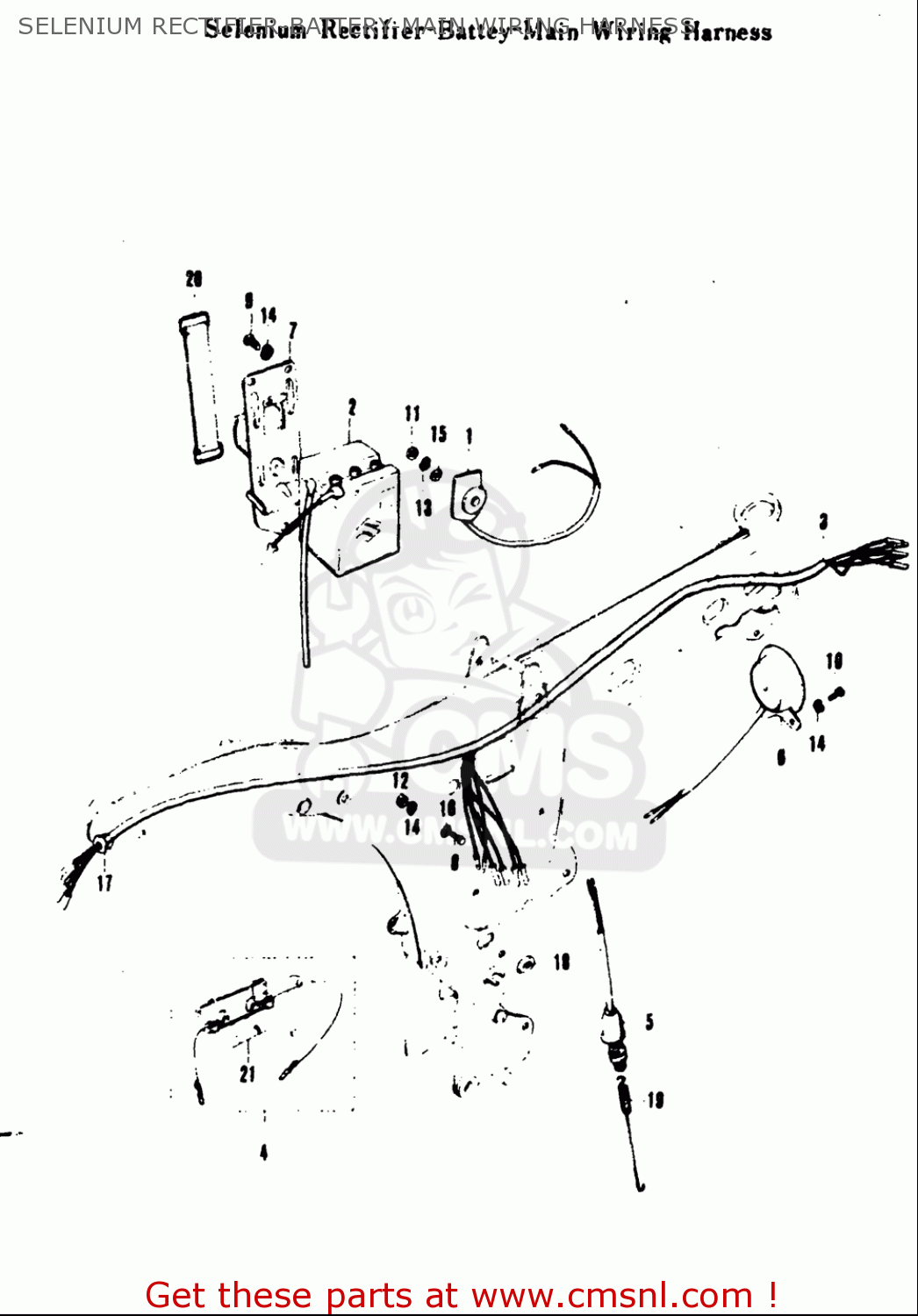

Selenium rectifier-battery-main wiring harness diagram A100 AS100 AC100 1969 USA (E03)

SELENIUM RECTIFIER-BATTERY-MAIN WIRING HARNESS A100 AS100 AC100 1969 USA (E03)

SELENIUM RECTIFIER-BATTERY-MAIN WIRING HARNESS A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3280016A00
ref: 1

RECTIFIER ASSY

€ 10.50

2

3361003010
ref: 2

BATTERY ASSY(6N4-2A4.2AH)

€ 42.00

4

3674015011
ref: 4

CASE ASSY,FUSE

€ 11.00

10

0211206127
ref: 10

SCREW

€ 2.00

11

0831000057
ref: 11

NUT

€ 2.50

12

0831000067
ref: 12

NUT

€ 2.50

13

0832101057
ref: 13

WASHER,LOCK

€ 2.00

14

0832101067
ref: 14

WASHER,LOCK

€ 2.50

15

0832201057
ref: 15

WASHER

€ 2.50

16

0832201067
ref: 16

WASHER

€ 2.00

20

0946200067
ref: 20

BAND

€ 4.50
