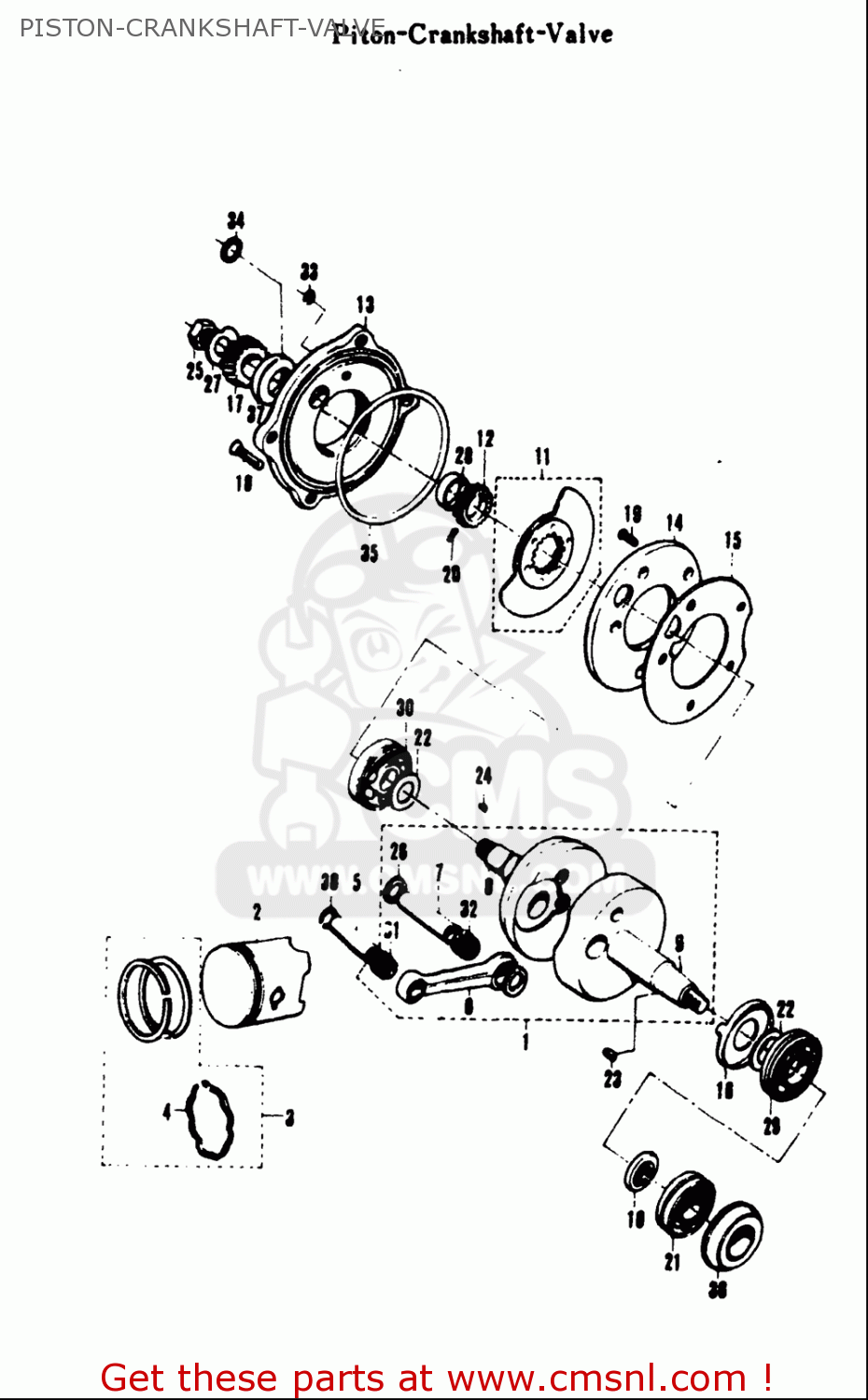

PISTON-CRANKSHAFT-VALVE

ref

part #

description

quantity

2

1211012003
ref: 2

PISTON

€ 40.50

2-1

1210012000050
ref: 2-1

PISTON SET(OS:0.5)

€ 70.00

3

1214012012
ref: 3

RING SET,PISTON

€ 40.00

3-1

1214028630050
ref: 3-1

RING SET,PISTON(OS:0.50)

€ 50.50

5

1215123400
ref: 5

PIN,PISTON 14MM

€ 10.00

6

1216139300
ref: 6

ROD,CONNECTING

€ 54.50

7

1221103300
ref: 7

PIN,CRANK

€ 26.50

13

1245012001
ref: 13

SEAT,CRANK OUTER VALVE

€ 48.00

20

0422103059
ref: 20

PIN

€ 1.50

21

0926220069
ref: 21

BEARING(20X47X14)

€ 28.00

22

0918120158
ref: 22

SHIM(20X28X0.5)

€ 2.50

23

0834131039
ref: 23

KEY

€ 2.00

24

0942004008
ref: 24

KEY

€ 3.50

25

0914014002
ref: 25

NUT

€ 4.00

26

0916019001
ref: 26

WASHER(19X32X1)

€ 3.50

29

0926220003
ref: 29

BEARING(20X52X15)

€ 27.00

30

0926220015
ref: 30

BEARING(20X52X15)

€ 30.50

31

0926314022
ref: 31

BEARING(14X18X19.8)

€ 10.00

32

0926319009
ref: 32

BEARING(19X25X16)

€ 15.00

33

0928010012
ref: 33

O RING(D:1.5,ID:10)

€ 2.00

34

0928022002
ref: 34

O RING(D:1.5,ID:22.5)

€ 2.50

35

0928099001
ref: 35

O RING(D:2,ID:99)

€ 21.00

36

0928320034
ref: 36

SEAL,OIL(19.6X37X8)

€ 6.00

37

0928325009
ref: 37

OIL SEAL (25X44X7)

€ 6.50
