REAR WHEEL
A100 AS100 AC100 1969 USA (E03)

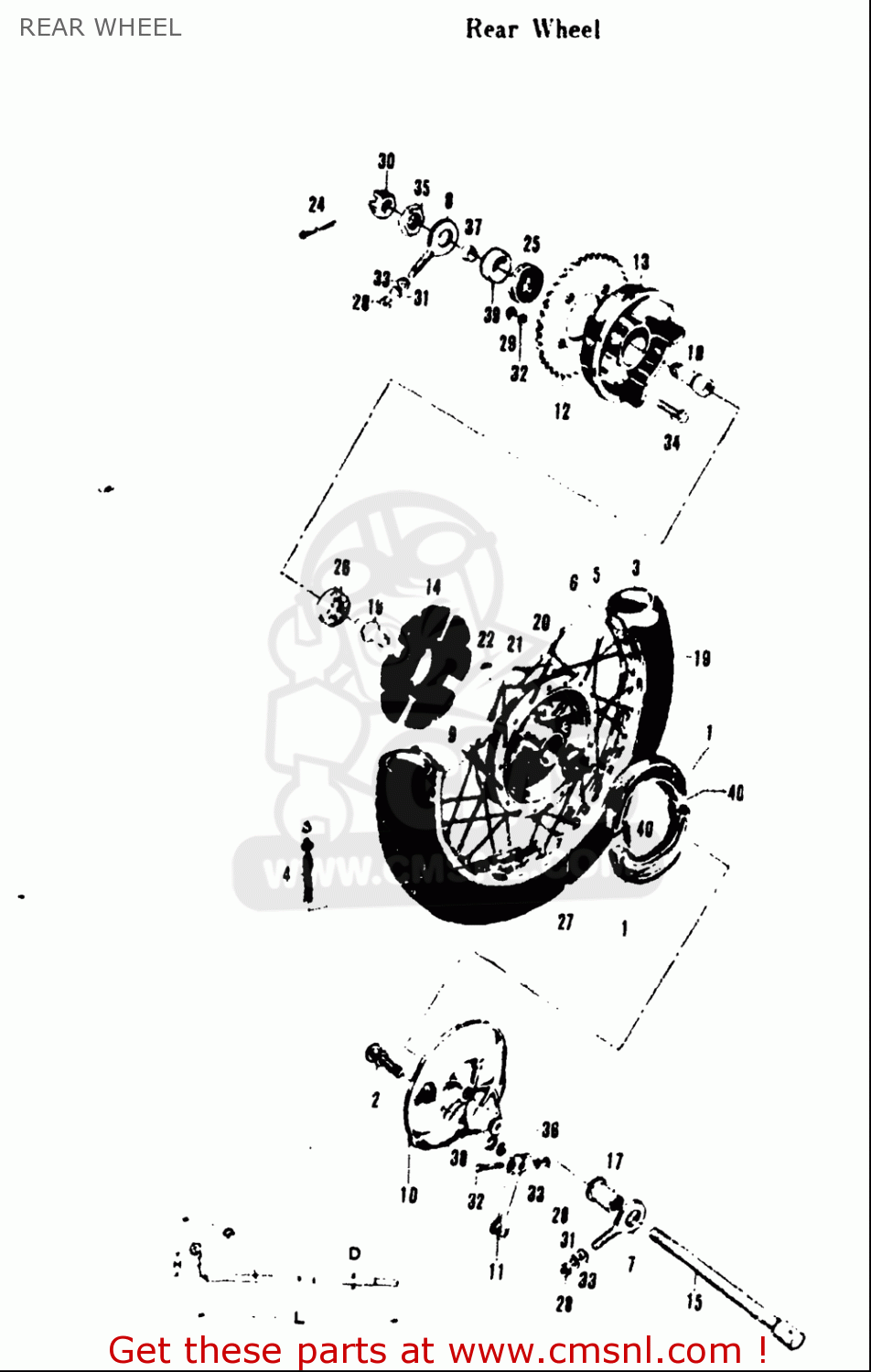

Rear wheel diagram A100 AS100 AC100 1969 USA (E03)
REAR WHEEL A100 AS100 AC100 1969 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5
5526102B40
ref: 5
PROTECTOR,WHL INR TUBE
€ 3.50
6
5531107020
ref: 6
RIM,WHEEL(1.40X17)
€ 71.00
7
6141101002
ref: 7
ADJUSTER,CHAIN,R
€ 6.00
14
64651010B1
ref: 14
ABSORBER,RR WHEEL HUB SHOCK
€ 9.00
18
6476101000
ref: 18
SHAFT,RR SPROCKET DRUM
€ 96.00
19-1
6532046730
ref: 19-1
SPOKE SET,RR
€ 46.00
25
0926217023
ref: 25
BEARING(17X40X12)
€ 14.00
26
0814362017
ref: 26
BEARING
€ 11.50
27
0814363017
ref: 27
BEARING
€ 14.50
28
0831000067
ref: 28
NUT
€ 2.50
29
0831000087
ref: 29
NUT
€ 2.00
30
0831431108
ref: 30
NUT
€ 1.50
31
0832101067
ref: 31
WASHER,LOCK
€ 2.50
32
0832101087
ref: 32
WASHER,LOCK
€ 2.00
33
0832201067
ref: 33
WASHER
€ 2.00
34
0910508001
ref: 34
BOLT(8X33.5)
€ 2.50
35
0914016005
ref: 35
NUT
€ 4.50
36
0916012011
ref: 36
WASHER(12.5X20X1)
€ 1.50
37
0918017004
ref: 37
SPACER(17X25X10.5)
€ 4.00
38
0928012001
ref: 38
O RING(D:2.5,ID:11.4)
€ 2.50
