TAIL/BRAKE LAMP
A100 AS100 AC100 1969 USA (E03)

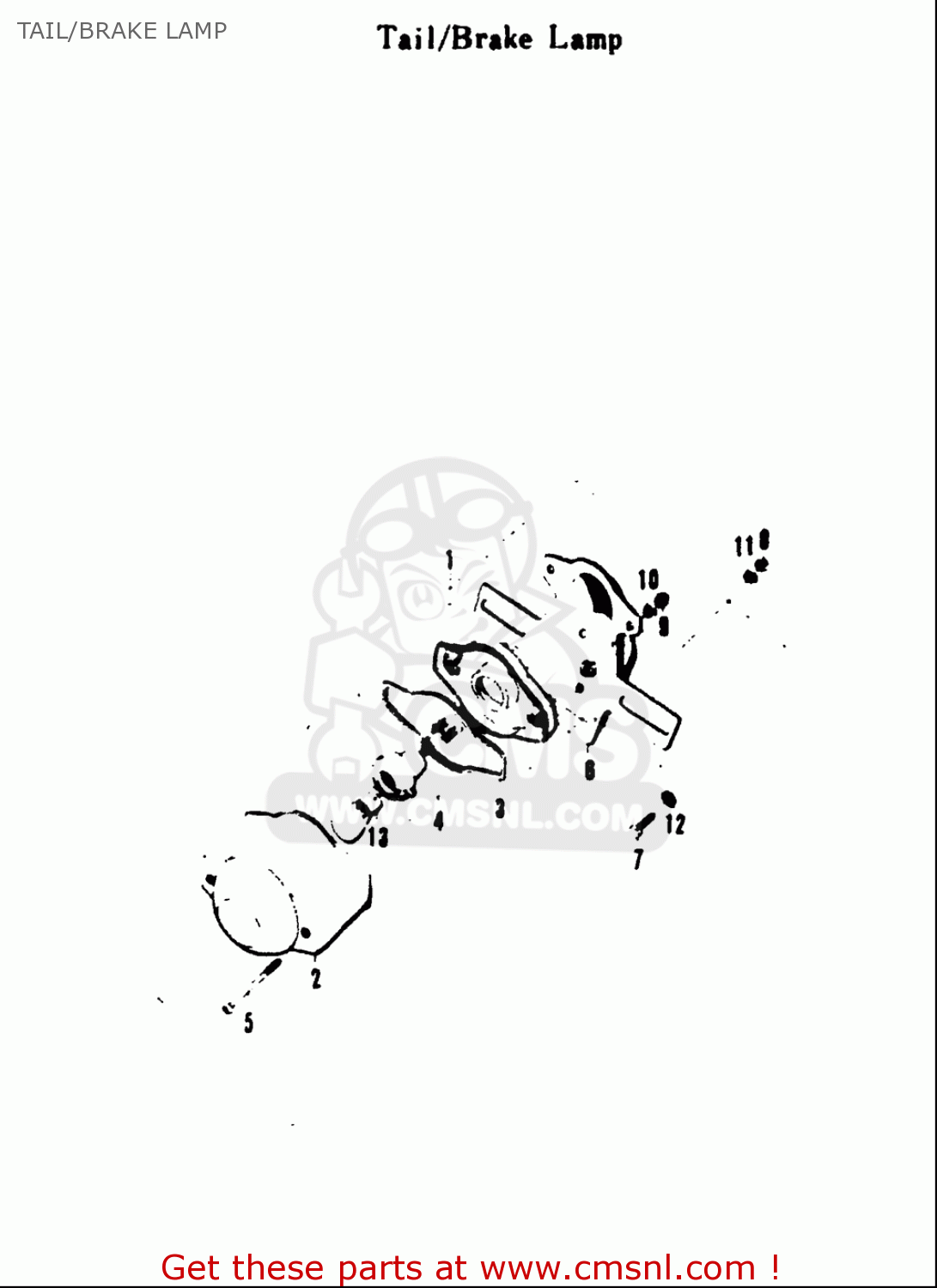

Tail/brake lamp diagram A100 AS100 AC100 1969 USA (E03)
TAIL/BRAKE LAMP A100 AS100 AC100 1969 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
8
0831000067
ref: 8
NUT
€ 2.50
9
0831311047
ref: 9
NUT
€ 2.00
10
0832101043
ref: 10
WASHER,LOCK
€ 2.00
11
0832101067
ref: 11
WASHER,LOCK
€ 2.50
12
0832201067
ref: 12
WASHER
€ 2.00
