KICK STARTER

A100 AS100 AC100 1969 USA (E03)

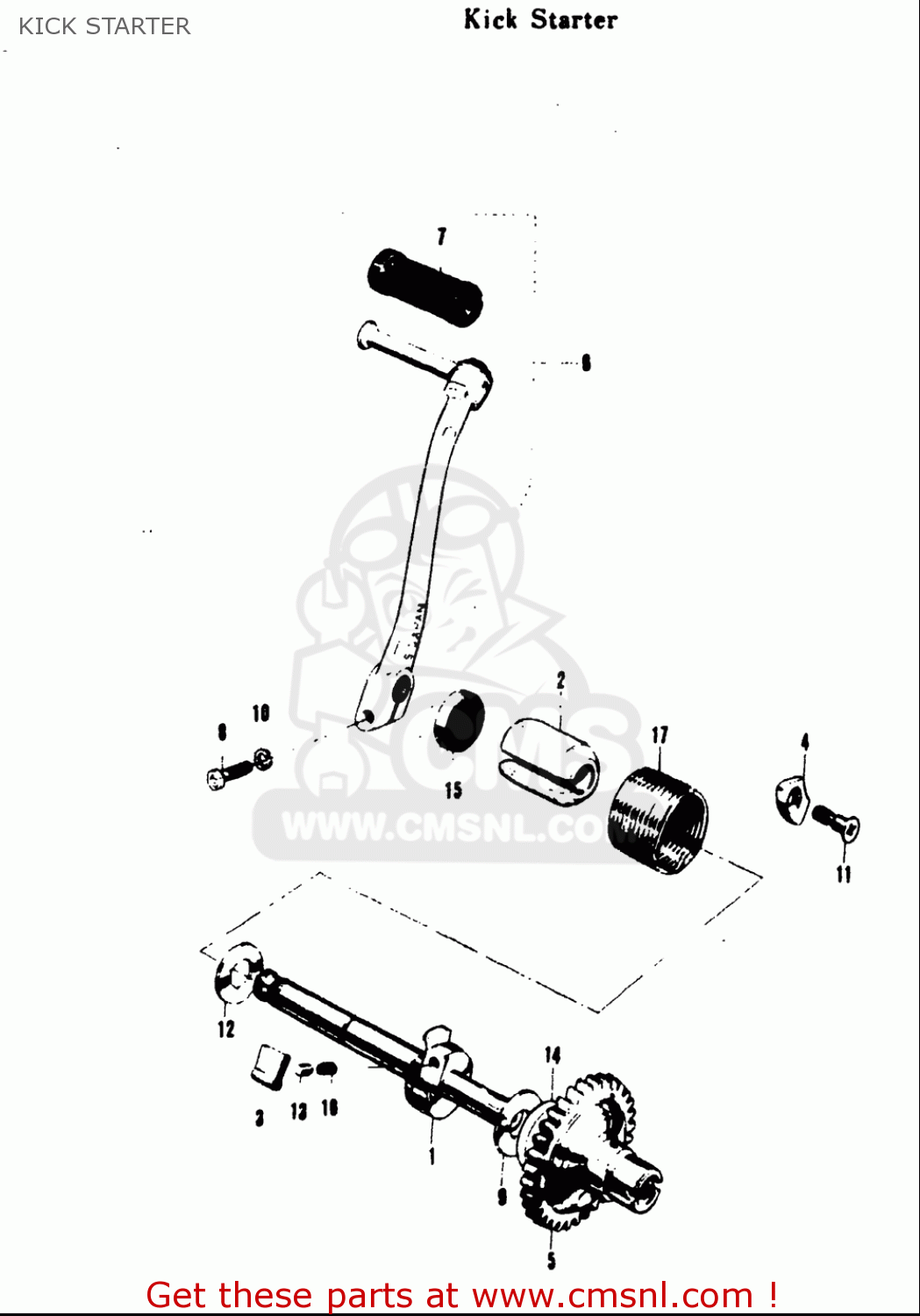

Kick starter diagram A100 AS100 AC100 1969 USA (E03)

KICK STARTER A100 AS100 AC100 1969 USA (E03)

KICK STARTER A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

2

2622108030
ref: 2

GUIDE,KICK STARTER SFT SPRING

€ 6.50

4

2623201000
ref: 4

LIFTER,KICK STARTER PAWL

€ 8.00

7

2635201000
ref: 7

RUBBER,KICK STARTER PEDAL

€ 3.50

8

0150008257
ref: 8

BOLT

€ 2.50

9

0821112302
ref: 9

WASHER

€ 2.50

10

0832101087
ref: 10

WASHER,LOCK

€ 2.00

11

0913906002
ref: 11

SCREW(6X19)

€ 2.50

12

0916016003
ref: 12

WASHER(16X30X1)

€ 2.50

13

0920905011
ref: 13

PIN(5X15.5)

€ 2.00

15

0928516002
ref: 15

SEAL,OIL(16X30X8)

€ 6.50

16

0944004010
ref: 16

SPRING

€ 1.50

16-1

0944004002
ref: 16-1

SPRING

€ 1.50
