FUEL TANK-FUEL COCK

A100 AS100 AC100 1969 USA (E03)

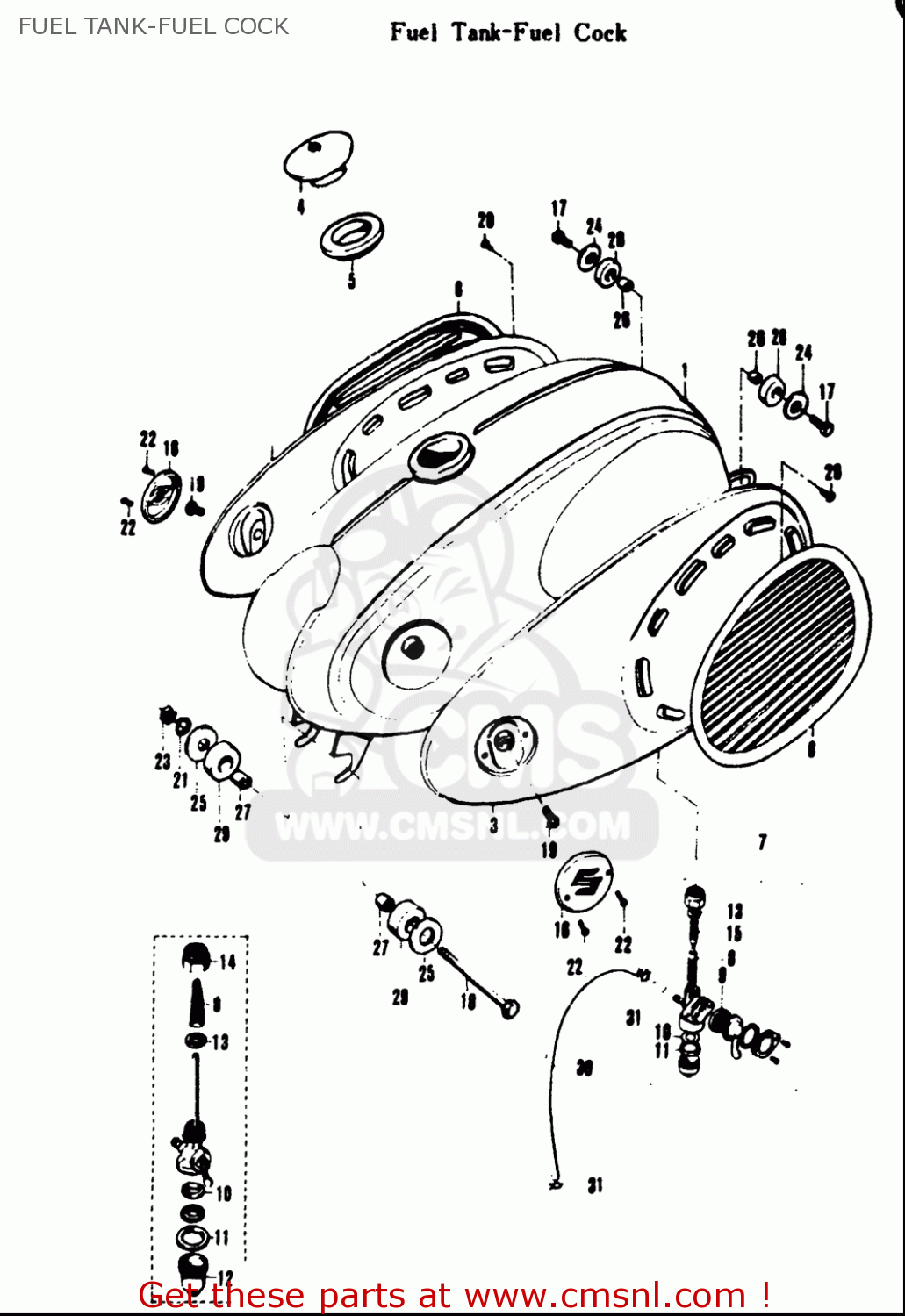

Fuel tank-fuel cock diagram A100 AS100 AC100 1969 USA (E03)

FUEL TANK-FUEL COCK A100 AS100 AC100 1969 USA (E03)

FUEL TANK-FUEL COCK A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

4

4420023810
ref: 4

CAP ASSY,FUEL TANK FILLER

€ 60.50

7

4430005115
ref: 7

COCK ASSY,FUEL

€ 58.50

9

4434105110
ref: 9

GASKET,LEVER (NAS)

€ 7.00

10

4434405110
ref: 10

NET,STRAINER

€ 4.00

11

4434605110
ref: 11

GASKET,STRAINER CUP (NAS)

€ 2.50

13

4434801010
ref: 13

GASKET,FUEL COCK (NAS)

€ 7.50

20

0912505117
ref: 20

SCREW(5X6)

€ 2.50

21

0832101087
ref: 21

WASHER,LOCK

€ 2.00

24

0916006134
ref: 24

WASHER(6.5X24X1.6)

€ 1.50

25

0916008134
ref: 25

WASHER(8.5X26X1.6)

€ 2.50

26

0918006283
ref: 26

SPACER(6.5X10X7)

€ 2.00

27

0918008189
ref: 27

SPACER(8.5X12X11)

€ 2.00

28

0932009002
ref: 28

CUSHION

€ 4.00

30

093525082300B
ref: 30

HOSE(5X8.2X2000)

€ 13.00
