FLYWHEEL MAGNETO-IGNITION COIL

A100 AS100 AC100 1969 USA (E03)

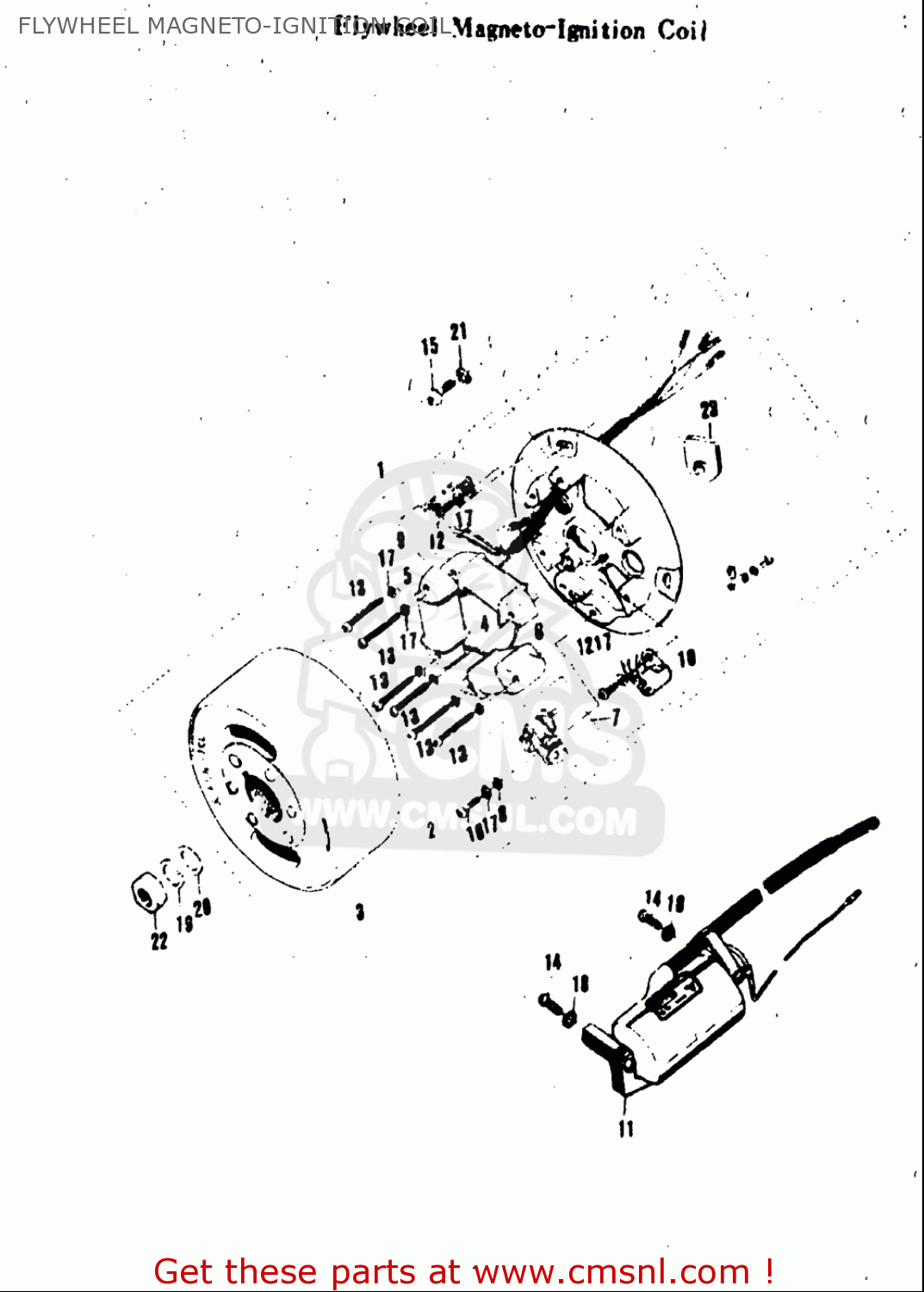

Flywheel magneto-ignition coil diagram A100 AS100 AC100 1969 USA (E03)

FLYWHEEL MAGNETO-IGNITION COIL A100 AS100 AC100 1969 USA (E03)
FLYWHEEL MAGNETO-IGNITION COIL A100 AS100 AC100 1969 USA (E03)
FLYWHEEL MAGNETO-IGNITION COIL A100 AS100 AC100 1969 USA (E03)
prices are in EUR
ref
part #
description
quantity
10
3234102030
ref: 10
CONDENSER
3234102030
€ 15.00
15
0211206167
ref: 15
SCREW
0211206167
€ 2.50
16
0231104128
ref: 16
SCREW
€ 2.00
17
0832101043
ref: 17
WASHER,LOCK
0832101043
€ 2.00
18
0832101057
ref: 18
WASHER,LOCK
0832101057
€ 2.00
19
0832101107
ref: 19
WASHER,LOCK
0832101107
€ 2.00
20
0832201107
ref: 20
WASHER
0832201107
€ 2.50
21
0832201067
ref: 21
WASHER
0832201067
€ 2.00
22
0914010041
ref: 22
NUT
0914010041
€ 3.50
