FRONT FORK

A100 AS100 AC100 1969 USA (E03)

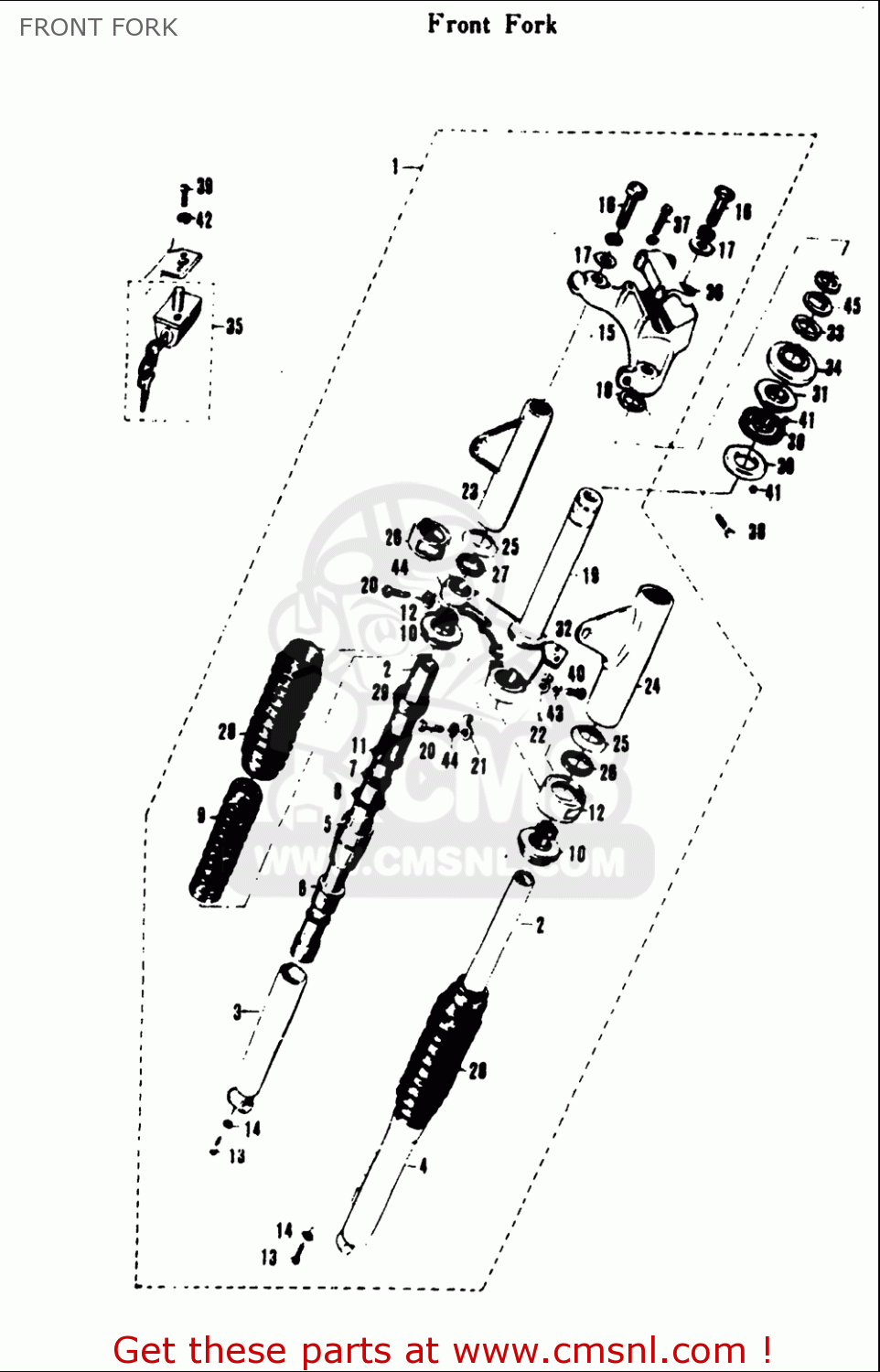

Front fork diagram A100 AS100 AC100 1969 USA (E03)

FRONT FORK A100 AS100 AC100 1969 USA (E03)

FRONT FORK A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

6

5115203011
ref: 6

GUIDE,FORK INNER TUBE

€ 6.50

13

5118203621
ref: 13

OIL DRAIN PLUG

€ 3.50

14

5118303010
ref: 14

GASKET,DRAIN,PLUG (NAS)

€ 3.00

16

5135107013
ref: 16

BOLT,FR FORK

€ 7.00

17

5135607010
ref: 17

WASHER,STEERING STEM HEAD

€ 5.00

20

0150010303
ref: 20

BOLT

€ 3.00

21

5145208010
ref: 21

CLIP,SPEEDOMETER CABLE

€ 3.00

22

5145303010
ref: 22

CLIP,BRAKE CABLE

€ 5.00

31

5162125000
ref: 31

LACE,STEERING OUTER UPR

€ 7.50

37

0120406257
ref: 37

BOLT

€ 1.50

38

0120408127
ref: 38

BOLT

€ 2.00

42

0832101057
ref: 42

WASHER,LOCK

€ 2.00

43

0832101067
ref: 43

WASHER,LOCK

€ 2.50

44

0832101107
ref: 44

WASHER,LOCK

€ 2.00
