CYLINDER-PISTON-CARBURETOR-MUFFLER-SPROCKET-CABLES

A100 AS100 AC100 1969 USA (E03)

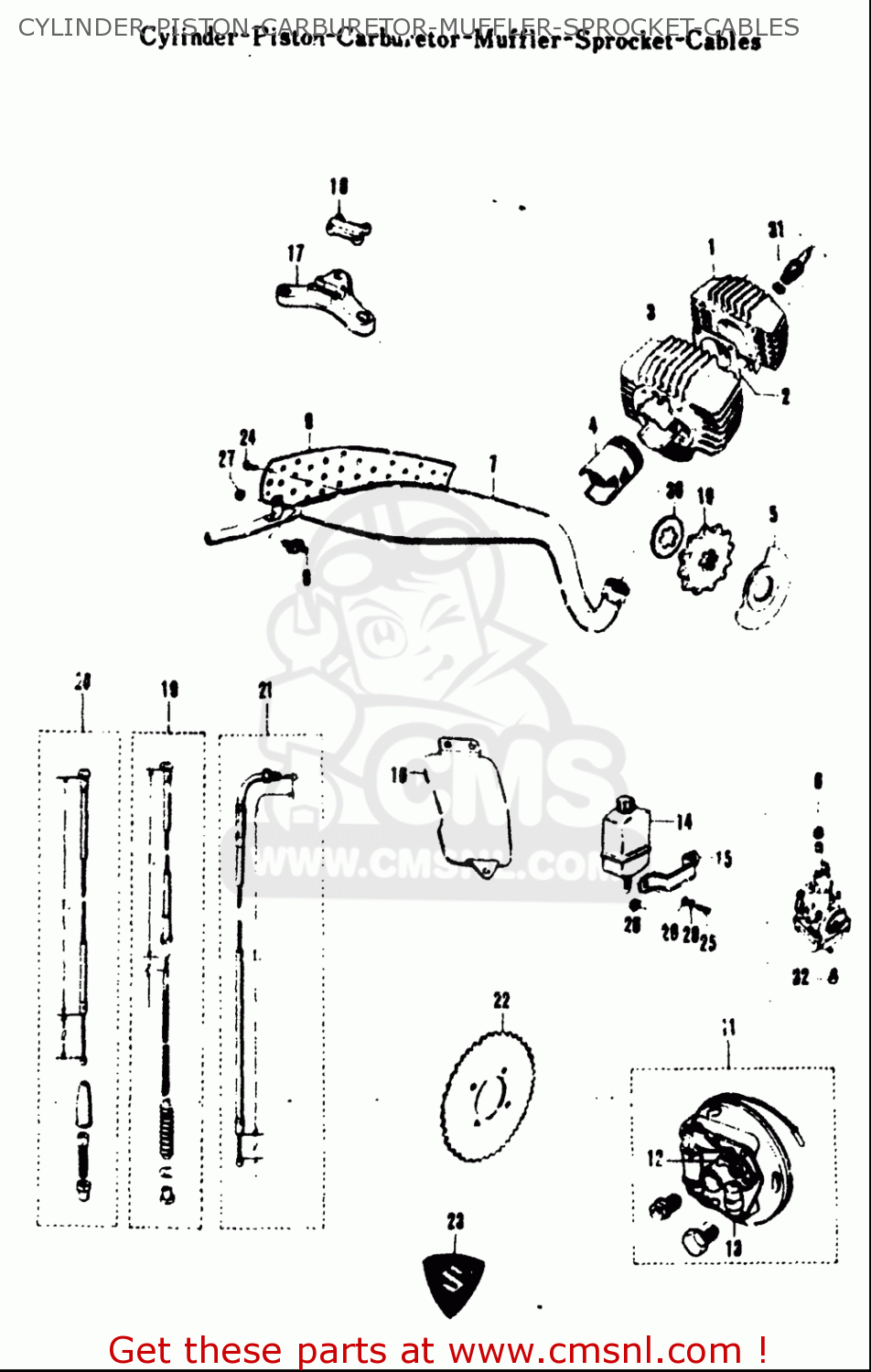

Cylinder-piston-carburetor-muffler-sprocket-cables diagram A100 AS100 AC100 1969 USA (E03)

CYLINDER-PISTON-CARBURETOR-MUFFLER-SPROCKET-CABLES A100 AS100 AC100 1969 USA (E03)

CYLINDER-PISTON-CARBURETOR-MUFFLER-SPROCKET-CABLES A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

10

2751120411
ref: 10

SPROCKET,ENGINE(NT:12)

€ 18.00

25

0211206127
ref: 25

SCREW

€ 2.00

26

0831000067
ref: 26

NUT

€ 2.50

27

0831000087
ref: 27

NUT

€ 2.00

28

0832101067
ref: 28

WASHER,LOCK

€ 2.50

29

0832201067
ref: 29

WASHER

€ 2.00
